Toyota RAV4 Windshield Washer Pump Replacement Guide (2006-2012)
If your washer fluid isn't spraying, the pump is the likely cause—here's what you need to know.
- A failed washer pump is a common issue with clear symptoms like no spray or a weak spray.
- The pump is located on the reservoir in the passenger-side wheel well and is an easy DIY replacement.
- An aftermarket pump from a brand like Trico is a cost-effective and reliable alternative to an expensive OEM part.
- Check for recalls on the wiper linkage (2009-2012 models), but know this is separate from the pump itself.
Is Your RAV4's Windshield Washer Pump Failing?
A failing windshield washer pump on a 2006-2012 Toyota RAV4 has very clear symptoms. If you activate the washers and nothing happens, or you only get a weak dribble of fluid, the pump is a prime suspect. Listen for the pump's motor; if you hear a humming sound when you hit the switch but no fluid comes out, the pump is running but has likely failed internally or the lines are clogged. If you hear nothing at all, the pump's motor may have burned out or has an electrical issue. Leaks from the washer fluid reservoir, often found in the front passenger-side wheel well, can also point to a bad pump or a cracked grommet where the pump seals to the tank.
Choosing a New Aftermarket Washer Pump
When replacing the washer pump on your RAV4, you have the choice between an OEM part from Toyota and an aftermarket part. OEM pumps are a direct replacement but come at a higher cost. Aftermarket pumps from reputable brands offer a more affordable solution without a significant compromise in quality for a part like this. Trico, a well-known brand in wiper and washer systems, produces direct-fit replacement pumps for this generation of RAV4. These pumps are designed to be installed easily without modifications and are a reliable, cost-effective choice for a DIY repair.
Pro Tip
Your RAV4 uses one or two pumps located on the washer reservoir. Often, a single pump is used for both the front and rear windows by reversing polarity. Before ordering, confirm if your vehicle uses one or two separate pumps. If only one pump is failing (e.g., the front works but the rear doesn't), you can sometimes swap the electrical connectors and hoses to confirm the pump is the problem before replacing it.
Cost of Replacing a Windshield Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $75 - $106 |
| New Aftermarket (Trico) | $24.64 |
| Shop Labor | $95 - $218 |
Installation Overview

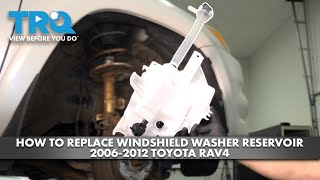

Replacing the washer pump on a 2006-2012 RAV4 is a straightforward job that most DIYers can handle. The washer reservoir and pumps are located behind the front bumper cover on the passenger side. Access is typically gained by removing the front passenger wheel and pulling back the plastic fender liner. 🎬 See how to access and replace the reservoir and pump. Some repair guides suggest removing the entire front bumper for easier access. Once accessed, the pump simply pulls out of the reservoir. Be prepared for the remaining washer fluid to drain out. Disconnect the electrical plug and hose, then push the new pump firmly into the rubber grommet on the reservoir. Always inspect the grommet for cracks and replace it if it's dry or damaged to prevent leaks.
Frequently Asked Questions (FAQ)
Why did my RAV4's washer pump fail?
Washer pumps can fail from normal wear and tear over time. Running the pump while the reservoir is empty can cause it to overheat and burn out. Using plain water instead of proper washer fluid can lead to freezing in cold climates, which can crack the pump housing or damage internal components. Mixing different types of washer fluid can sometimes cause gelling, which clogs the system.
Is this a difficult repair to do myself?
No, this is considered an easy repair. It requires basic hand tools like a 10mm socket, screwdrivers, and trim removal tools. The main challenge is accessing the pump, which involves removing the wheel and fender liner. The replacement itself is plug-and-play. Estimated time for a DIYer is under an hour.
🎬 Watch this step-by-step 2010 RAV4 washer pump repair guide.Are there any recalls on the 2006-2012 RAV4 washer system?
There are no recalls specifically for the windshield washer pump. However, there was a safety recall (NHTSA #15V577) for 2009-2012 RAV4 models concerning the windshield wiper link, where water could cause corrosion and lead to wiper failure. This does not involve the washer pump itself but is related to the overall wiper system.
Does the same pump work for the front and rear windshields?
Often, yes. Many Toyota models from this era use a single, reversible pump for both front and rear washers. The direction of the motor changes depending on whether you select the front or rear wash function. Some configurations may use two separate pumps. It's best to visually inspect your vehicle's setup on the reservoir tank before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85330-60190 85330-21010 85330-47010 85330-60150 85330-60170 85330-60180
The 2006-2012 RAV4 typically uses one or two push-in style pumps mounted on the washer fluid reservoir with a rubber grommet. The pump is powered by a 12V electrical connector.
