Ford Mustang Spark Plug Guide for 2006-2013 Models
Everything you need to know about choosing the right spark plugs, especially for the tricky 4.6L 3-Valve V8.
- Be aware of the 2006-2008 4.6L 3V V8 engine's two-piece spark plug design, which is prone to breaking during removal.
- For 4.6L 3V engines, follow Ford's TSB 08-7-6 removal procedure or hire a professional to avoid costly repairs.
- When replacing plugs on the 4.6L 3V, choose a modern one-piece design from a quality brand like Motorcraft, NGK, or Champion.
- The 2011-2013 V6 and V8 engines do not have the breaking plug issue and are much simpler to service.
Engine Generations and Spark Plug Differences
The 2006-2013 Ford Mustang used several different engines, and their spark plug needs are not the same. It is critical to know which engine your car has.
- 2006-2010 4.0L V6: This engine uses a straightforward, traditional spark plug design. Replacement is generally simple. 🎬 See how to replace spark plugs on 2005-2016 Mustangs.
- 2006-2010 4.6L 3V V8: This engine is famous for a difficult spark plug issue. The original factory plugs have a two-piece design that can break during removal, leaving part of the plug stuck in the engine. This is a well-documented problem.

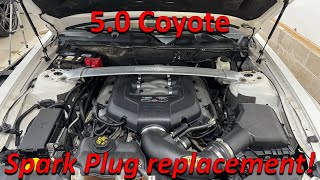

- 2011-2013 3.7L V6 & 5.0L V8: These newer "Coyote" (V8) and "Cyclone" (V6) engines 🎬 Follow this guide for changing plugs on Coyote V8 engines. use a more conventional and reliable one-piece spark plug design. The breakage issue from the earlier V8 does not apply to these models.
Known Issues: The 4.6L 3-Valve Spark Plug Problem
If you have a 2006-2008 Mustang GT, pay close attention. The original Motorcraft spark plugs had a long electrode shield that extended deep into the cylinder head. Over time, carbon builds up around this shield, essentially gluing it in place. When you try to unscrew the plug, the upper part can break away from the lower shield, leaving the bottom half seized in the head.
Ford released a Technical Service Bulletin (TSB 08-7-6) with a specific, multi-step procedure to help remove these plugs without breaking them. This involves soaking the plugs with a cleaner and carefully working them back and forth. Even with this procedure, breakage is common, requiring a special extraction tool 🎬 Watch a professional demonstrate the 4.6L 3-valve replacement process. to remove the broken piece. Because of this risk, many owners choose to have a professional mechanic perform the job. When replacing, it is highly recommended to use a one-piece spark plug design to prevent this from happening again.
Choosing the Right Aftermarket Spark Plug
While Motorcraft is the original equipment (OE) brand, many aftermarket options are available. For the problematic 4.6L 3V engine, many owners specifically seek out one-piece aftermarket plugs to avoid future issues.
Brand Quality Tiers
- OEM/Premium Tier (Motorcraft, NGK, Denso): Motorcraft is the Ford factory brand and is a reliable choice, especially the updated one-piece designs for the 4.6L V8. NGK and Denso are highly respected Japanese brands known for excellent quality and are often considered equal to or better than OEM. Many enthusiasts prefer NGK for its reliability and performance.

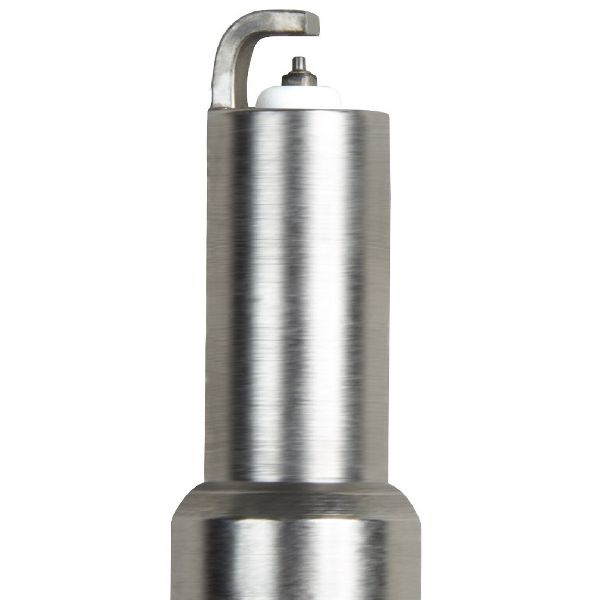

- Quality Aftermarket (Autolite, Champion, Bosch): These brands offer a solid balance of price and performance. Autolite has historically manufactured some plugs for Motorcraft. Champion was one of the first to offer a one-piece plug solution for the 4.6L 3V engine. Bosch is a major global parts supplier offering a range of plugs that are a dependable alternative.
- Performance/Budget (Accel, MSD, Skyward): Accel and MSD are known for performance ignition components and may offer plugs in different heat ranges for modified engines. Skyward is typically a budget-friendly option.
Pro Tip: For a stock or lightly modified Mustang, sticking with the OEM material (usually Iridium or Platinum) from a reputable brand like Motorcraft or NGK is a safe bet. If your engine is heavily modified with a supercharger or turbo, you will likely need a "colder" heat range spark plug to prevent engine damage.
| Quality Tier | Price Range |
|---|---|
| Economy (Skyward) | $2.50 - $5.00 |
| Standard Aftermarket (Autolite, Champion, Bosch) | $6.00 - $15.00 |
| Premium/OEM (Motorcraft, NGK, Denso) | $12.00 - $22.00 |
| High-Performance (MSD, Accel) | $15.00 - $29.00 |
Frequently Asked Questions (FAQ)
How often should I change my Mustang's spark plugs?
For the 2006-2013 Mustang, the recommended interval is typically between 60,000 and 100,000 miles for platinum or iridium plugs. However, many owners of the 4.6L 3V engine choose to change them more frequently, around 30,000-50,000 miles, to reduce the chance of carbon buildup and breakage.
Do I need a special tool to change my spark plugs?
For most Mustang engines in this year range, you only need standard tools like a ratchet, extensions, and a spark plug socket (usually 5/8"). However, if you are working on a 4.6L 3V V8 and a plug breaks, you will need a special spark plug extraction tool (like the Lisle 65600) to remove the broken piece.
What's the difference between platinum and iridium spark plugs?
Iridium and platinum are precious metals used on the spark plug's electrodes. Iridium is harder and has a higher melting point than platinum, which generally allows for a longer lifespan and a more consistent spark. Most modern engines, including these Mustangs, came with long-life platinum or iridium plugs from the factory. Copper plugs are cheaper but have a much shorter service life.
Do I need to put anti-seize on the new spark plugs?
This is a debated topic. Some manufacturers, like NGK, advise against it because their plugs have a special plating that prevents seizing. However, for the 4.6L 3V engine, Ford's TSB specifically recommends applying a high-temperature nickel anti-seize to the ground shield (the long barrel part), NOT the threads, to help prevent it from getting stuck in the future. Always follow the specific instructions for the plugs you purchase.
Helpful Videos
Technical Specifications
OEM Part Numbers: SP-547 SP-514 SP-548 SP-493 AGSF24N AGSF32PM
Spark plug gap varies by engine. The 4.0L V6 is typically 0.052"-0.056". The 4.6L 3V is around 0.045". The 5.0L V8 is around 0.049"-0.053". Always verify the correct gap for your specific engine and the new plugs before installation.
