Choosing the Right Alternator for Your 2006-2013 GMC Savana 2500
Keep your workhorse van powered and on the road by understanding its specific alternator needs and common issues.
- Check for the 2010 model year safety recall (NHTSA #10091B) regarding fire risk from faulty alternators.
- Match the amperage of your original alternator (commonly 105A, 145A, or 160A) or upgrade intentionally for added accessories.
- For maximum reliability in a work van, choose a new unit from a premium brand like ACDelco or Bosch.
- Symptoms like a dead battery or low voltage at idle can sometimes be linked to ECM programming issues, not just a bad alternator.
Is Your Savana 2500's Alternator Failing?
An alternator doesn't usually fail without warning. For the 2006-2013 Savana, these symptoms are a clear sign it's time to inspect your charging system.
- Battery Light: The most obvious sign is the battery warning light on your dashboard. This light indicates a problem with the charging system, not necessarily the battery itself. 🎬 Watch: How to test your GM alternator with a multimeter.
- Dim or Flickering Lights: Headlights that dim at idle and brighten when you rev the engine are a classic symptom of a weak alternator.
- Strange Noises: A grinding or whining sound from the front of the engine can point to failing bearings inside the alternator. A squealing noise may indicate a problem with the serpentine belt that drives the alternator.
- Electrical Problems: Power windows that are slow to operate, a radio that cuts out, or other strange electrical behavior can mean the alternator isn't providing enough power.
- Dead Battery: If you need to jump-start your van frequently, and it dies shortly after the jumper cables are removed, the alternator is the likely culprit.
Urgent Safety Recall for 2010 Models
General Motors issued a safety recall for some 2010 GMC Savana 2500 and 3500 vans (NHTSA Recall #10091B / #10216). The issue involved certain 145-amp alternators that could develop an internal short circuit, creating a risk of an engine compartment fire. Owners were advised to have their alternator inspected and replaced by a dealer if it was part of the affected batch. If you own a 2010 model, it is critical to verify if this recall service was performed.
Choosing the Right Aftermarket Alternator
When replacing the alternator on your Savana, you have a choice between OEM and a wide range of aftermarket brands. Since these vans are often used for work, reliability is key. Here’s a breakdown of your options.
Brand Quality Tiers
Not all aftermarket parts are created equal. They generally fall into these categories:
- Premium / OEM-Equivalent: Brands like ACDelco (GM's own parts division) and Bosch are known for manufacturing original equipment parts. Choosing a new unit from these brands is the closest you can get to factory quality and is a reliable choice for a work vehicle.
- Quality Aftermarket: Brands like Remy (new units) and Denso offer a good balance of price and quality. Forum discussions suggest that new units from Remy are generally a safer bet than their remanufactured counterparts, which have had some reports of early bearing failure.
- Standard / Budget Aftermarket: Brands like WAI Global, BBB Industries, and MPA fall into this category. They offer a cost-effective solution, but may not have the same long-term durability as premium brands, which is a consideration for a vehicle that needs to be dependable for a business.
- High-Output Specialists: If your Savana is a conversion van or work truck with extra lights, power inverters, or audio equipment, a high-output alternator from a brand like Powermaster is a smart upgrade. These are built to handle heavy electrical loads that can overwork a standard alternator.
Pro Tip: Check Your Amperage
The Savana 2500 was equipped with different alternators depending on the engine and options, commonly 105, 145, or 160 amps. Always replace your alternator with one that has at least the same amperage rating as the original. Upgrading to a higher amperage is possible, but for significant jumps in power, you may also need to upgrade your main battery and ground wires (known as the "Big 3" upgrade) to handle the extra current safely.
Estimated Replacement Costs
The price for a new aftermarket alternator can vary widely based on brand and amperage. Here is a general cost expectation:
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $58 - $342 |
| New OEM | $450 - $822 |
| Shop Labor | $119 - $175 |
Frequently Asked Questions
Is it hard to replace the alternator on a Savana 2500?
It is a moderately difficult job that a skilled DIYer can perform. Access is from the front of the engine bay. The main steps include disconnecting the battery, removing the air intake, releasing the serpentine belt tension, and unbolting the alternator. 🎬 See this step-by-step Savana alternator replacement walkthrough. The alternator can be tight in its mounting bracket and may require some prying to remove.
Should I buy a new or remanufactured alternator?
For a work vehicle like the Savana, a new alternator is generally recommended for maximum reliability. Remanufactured units can be a good value, but their quality can be inconsistent. They often reuse the alternator housing and other durable components while replacing wear items like bearings and brushes. If choosing remanufactured, stick with a top-tier brand like ACDelco or Bosch.
My van's voltage is low at idle but fine when driving. Is it the alternator?
Usually, yes. However, these GM vans use a computer-controlled charging system. In some cases, especially after an ECM (engine computer) replacement, this issue can be caused by the new computer not being programmed correctly for the vehicle. If you've already replaced the alternator and the problem persists, the ECM programming or wiring could be the issue.
Do I need a special alternator for the 6.0L V8 engine?

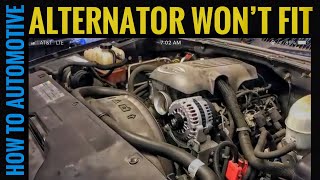

While the replacement process is similar across the V8 engines (4.8L, 5.3L, 6.0L), the specific alternator part number and amperage rating may differ. Always confirm the fitment for your exact year, model, and engine before purchasing. 🎬 Watch: Pro tips for replacing alternators on 5.3L and 6.0L engines. The 6.0L often came with a higher-amperage alternator (like 145 or 160 amps) from the factory.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15200110 15288861 15263859 15847291 20881337
Amperage ratings typically range from 105A to 160A for OEM replacements. The alternator uses a serpentine belt for drive and is mounted on the front of the engine. It connects via a main power stud (B+) and a multi-pin electrical connector for the voltage regulator.
