Volkswagen GTI Brake Light Switch Guide (2006-2013)
Solving common electrical problems in your Mk5 or Mk6 GTI starts with this small but critical part.
- For the 2006-2013 GTI, the brake light switch is located on the master cylinder in the engine bay, not by the pedal.
- A faulty switch can cause major safety issues like non-working brake lights or leave you stranded by locking the shifter in Park.
- Common symptoms include ESP/ABS warning lights on the dash and cruise control failure.
- This is an excellent DIY repair for beginners; it requires minimal tools and can be done in about an hour.
Is Your GTI Acting Strange? It Could Be the Brake Light Switch
If you own a 2006 to 2013 Volkswagen GTI, you might experience some confusing electrical issues. Warning lights on the dash or the inability to shift out of park can seem like major problems. However, the cause is often a small, inexpensive part: the brake light switch. This component is a known failure point on these cars, but the fix is straightforward.
Symptoms of a Failing Brake Light Switch
A bad brake light switch sends incorrect signals, or no signal at all, to the car's computer systems. This can cause one or more of the following problems:
- Brake lights don't work or stay on all the time: This is the most direct symptom. Your brake lights may not light up when you press the pedal, or they might stay lit even after you park, draining the battery.
- ESP, ABS, or Traction Control light is on: The Electronic Stability Program (ESP) and Anti-Lock Brake System (ABS) rely on the brake switch signal. A fault in the switch will often trigger a warning light on your instrument cluster. 🎬 Watch this guide to understand and reset your ESP warning lights.
- Cannot shift out of Park: For safety, DSG automatic transmissions require a signal that the brake is pressed before allowing the shifter to move out of Park. A failed switch prevents this signal from being sent, leaving you stranded.
- Cruise control won't work: The cruise control system deactivates when the brake is touched. If the switch is faulty, the cruise control may not engage or may shut off unexpectedly.
Recall Information
A recall was issued for the brake light switch on the previous generation, including the 2006 GTI (NHTSA Campaign ID #07V063000). While this specific guide covers the newer design, it highlights the history of issues with this component. Always check with a VW dealer to see if any recalls apply to your specific vehicle.

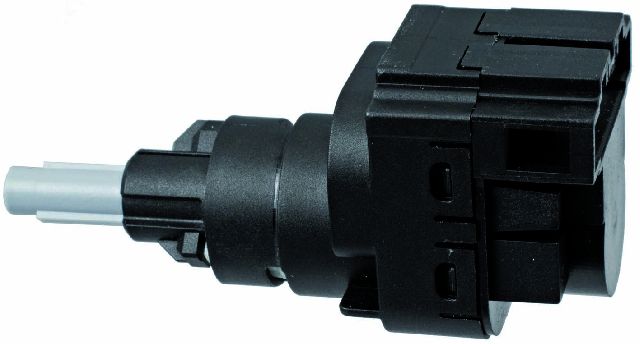

Choosing the Right Aftermarket Brake Light Switch
You don't need to buy a part from the VW dealer to get your GTI working correctly. Several reputable aftermarket brands offer quality replacements. Aftermarket parts are often a fraction of the cost of the genuine OEM part and can be just as reliable.
Brand Tiers for Your GTI
- Standard Ignition (Standard Motor Products): A well-known and trusted brand in North America. They have a long history of making quality electronic parts that meet or exceed OEM specifications. Many professional mechanics use Standard parts as a reliable alternative to the dealer.
- Vemo: A German brand that specializes in electronic parts for European vehicles. Choosing a brand that focuses on European cars is often a good strategy for your GTI. User feedback is generally positive, though not highly detailed.
- Facet: An Italian manufacturer of automotive electronics. Like Vemo, they are a solid choice for European cars. Reviews indicate they offer good quality at a fair price, with many users reporting them as a "perfect replacement."
- Rostra Powertrain: Rostra is a known manufacturer of automotive electronics, but specific reviews for this VW application are not common. They are a valid option, but the other brands have a more established track record among VW owners for this specific part.
Pro Tip: The design of this switch has been updated several times by VW and aftermarket companies to improve reliability. The replacement part you buy may look different from the original one on your car (it might be a different color or shape). This is normal. As long as the part number is correct for your vehicle, it will fit and function properly.
Cost of Replacing the Brake Light Switch
This is an inexpensive repair, whether you do it yourself or take it to a shop.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Part | $35 - $55 |
| New Aftermarket Part | $21 - $61 |
| Shop Labor | $60 - $90 |
| Total Professional Repair | $100 - $145 |
Cost estimates are based on national averages and may vary based on your location and the shop's labor rates.
DIY Replacement Guide
Replacing the brake light switch on a 2006-2013 GTI is a job most DIYers can handle in about an hour with basic tools.
- Location: The switch is not under the dash. It is located in the engine bay, on the lower right side of the brake master cylinder.
- Tools Needed: T30 Torx driver.
- Process: You will likely need to remove the engine cover to get access. The switch is held in by a single T30 Torx screw. Unplug the electrical connector, unscrew the switch, and install the new one in the reverse order. The space is tight, but it is a simple bolt-on, plug-in part. 🎬 Watch this step-by-step walkthrough for replacing the switch on MK5 models.
Frequently Asked Questions
Can I still drive my GTI with a bad brake light switch?
It is not recommended. If your brake lights are not working, it is a major safety hazard. If the switch has failed in a way that prevents you from shifting out of Park, your car will be immobilized.
Will a bad brake light switch cause a Check Engine Light?
Sometimes. More commonly, it will trigger the ESP or ABS warning light. However, a fault code, such as P0571 (Brake Switch 'A' Circuit Malfunction), will be stored in the car's computer, which can be read with a diagnostic scanner.
🎬 See how to test the switch and clear the P0571 code.Why are my brake lights stuck on?
This is a common failure mode for this switch. An internal short can cause the switch to send a constant "on" signal, even when the brake pedal is not pressed. This will drain your battery if left unaddressed.
Is the brake light switch the same for manual and DSG automatic cars?
Yes, the part itself is the same. The symptoms can be slightly different, as the inability to shift from Park is specific to the DSG transmission.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1K2945511 6Q0945511 1C0945511A

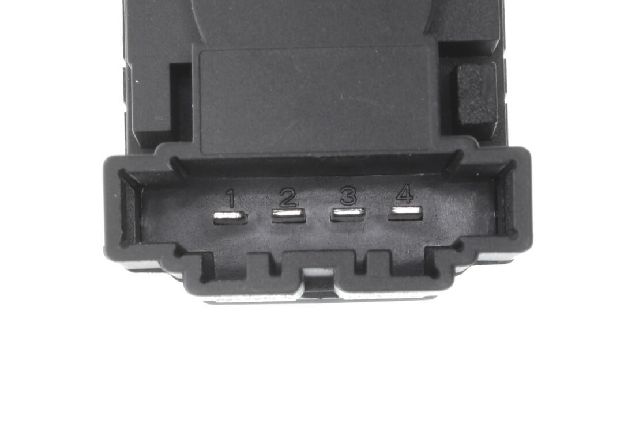

For the 2006-2013 (Mk5/Mk6) generation, the switch is a 4-pin connector type that mounts to the brake master cylinder with a single T30 Torx screw.
