Volvo C70 A/C Accumulator Replacement Guide (2006-2013)
If your C70's air conditioning is blowing warm, the A/C accumulator might be the cause, but don't replace it until you check for a more common issue.
- The most common A/C issue on this C70 is an excessive compressor clutch gap, which should be checked before replacing any parts.
- The A/C accumulator must be replaced whenever the system is opened for a major repair to protect new components and validate warranties.
- Replacement requires special tools to evacuate and recharge the refrigerant, making it a job for a professional shop, not a typical DIY project.
- Aftermarket brands like Four Seasons and Spectra offer huge cost savings over the OEM part and are a viable option for budget-conscious repairs.
Is Your A/C Accumulator Really the Problem?
Warning: Check the A/C Compressor Clutch Gap First!
The most common A/C problem on the 2006-2013 Volvo C70 is NOT a failed accumulator. It is an excessive air gap in the A/C compressor clutch. Over time, the clutch wears, and the gap becomes too wide. When the engine gets hot, the metal expands, making the gap even larger. The system's electromagnet is no longer strong enough to engage the clutch, and your A/C stops blowing cold. This often happens after 5-10 minutes of driving. Many owners mistakenly replace other parts before discovering this is the true cause. Before buying an accumulator, have a mechanic check the compressor clutch gap.
Symptoms of a Failing A/C Accumulator
If you've ruled out the compressor clutch gap, a bad accumulator can cause several issues. The desiccant material inside can become saturated with moisture over time, or the internal filter can get clogged. This prevents the A/C system from working correctly.
- Weak or No Cold Air: This is the most common sign. A clogged accumulator restricts refrigerant flow, so the system can't cool the air effectively.
- Visible Refrigerant Leaks: The canister can rust or corrode, causing refrigerant and oil to leak out. You may see a greasy, oily residue on the accumulator itself or on the ground beneath it.
- Rattling Noises: If the internal components or the desiccant bag break apart, you might hear a rattling sound from the engine bay when the A/C is running.
- Musty Smell: While often caused by mold on the evaporator, a failing accumulator that allows moisture to build up in the system can contribute to a musty or moldy smell from the vents.
Choosing the Right Aftermarket A/C Accumulator
When replacing the accumulator, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For the C70, the price difference is significant.
- OEM: A genuine Volvo accumulator offers a guaranteed fit and the highest quality, but it comes at a very high price.

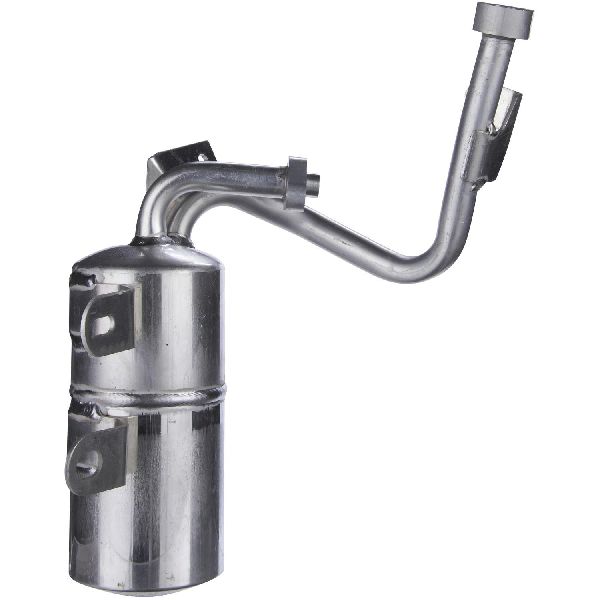

- Aftermarket: Brands like Four Seasons and Spectra offer a much more affordable alternative. These are standard, economy-tier parts that get the job done for a fraction of the cost. While they may not have the same lifespan as an OEM part, they are a practical choice for many owners. Forum discussions show mixed but generally acceptable experiences with these brands.
Pro Tip: Always Replace, Never Reuse
The A/C accumulator must be replaced any time the A/C system is opened for a major repair (like a compressor or condenser replacement). Once exposed to outside air, the desiccant inside is ruined. Installing a new accumulator is cheap insurance for your expensive new components.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Spectra) | $67.53 - $69.52 |
| New OEM (Genuine Volvo) | $445 - $585 |
| Shop Labor & Recharge | $250 - $450 |
Frequently Asked Questions (FAQ)
Do I have to replace the accumulator when I replace my A/C compressor?
Yes, absolutely. Most warranties for new A/C compressors require you to replace the accumulator/drier and the orifice tube at the same time. Failing to do so can cause your new compressor to fail quickly and will void its warranty.
Can I replace the A/C accumulator myself?
This is not a simple DIY job. It requires specialized equipment to safely and legally recover the old refrigerant and then vacuum and recharge the system after the new part is installed. Attempting this without the right tools can damage the system and is harmful to the environment. It is best left to a qualified mechanic.
What is the difference between an accumulator and a receiver-drier?
They perform the same function of removing moisture but are used in different types of A/C systems. Your Volvo C70 uses an accumulator, which is located on the low-pressure side of the system, between the evaporator and the compressor.
Why is the OEM part so much more expensive?
OEM parts are made by or for the vehicle manufacturer to exact specifications and undergo rigorous quality control. This guarantees fit and performance but comes at a premium price. Aftermarket parts are designed to be a cost-effective alternative, but quality and longevity can vary.
Technical Specifications
OEM Part Numbers: 31332650 31267523
Contains desiccant to remove moisture from the A/C system. Located on the low-pressure side of the system.
