A Guide to Replacing the Disc Brake Hardware on Your 2006-2014 Audi A3
Don't let corroded or weak brake hardware compromise your A3's stopping power; learn what you need for a complete brake job.
- Always replace the disc brake hardware kit when changing brake pads and rotors to ensure quiet operation and even wear.
- Corrosion is the primary cause of hardware failure; choosing aftermarket kits with coated components can increase longevity.
- Symptoms like rattling, uneven pad wear, or pulling can point directly to failed brake hardware.
- Ensure caliper guide pins are cleaned and properly lubricated with high-temperature silicone grease during installation.
Is It Time for a New Disc Brake Hardware Kit?
For the 2006-2014 Audi A3, replacing the disc brake hardware is a non-negotiable part of a complete and professional brake job. These small metal clips and rubber boots are subjected to thousands of heat cycles and constant exposure to road salt and moisture. This causes them to rust, weaken, and fail. When hardware is worn, it can lead to a variety of braking issues that new pads and rotors alone won't solve.
Symptoms of Failing Brake Hardware
Ignoring your brake hardware can lead to annoying noises and uneven wear. Watch for these signs:
- Rattling or Squealing: Worn-out anti-rattle clips can allow the brake pads to vibrate, creating a rattling sound, especially over bumps. Squealing during braking can also occur if pads are not held securely.
- Uneven Pad Wear: If caliper guide pins can't move freely due to torn boots or corrosion, the brake pads can wear at an angle or faster on one side.
- Brake Drag or Pulling: A stuck guide pin can cause a brake pad to remain in contact with the rotor, leading to a dragging sensation, pulling to one side, and excessive heat from one wheel.
Choosing the Right Aftermarket Hardware Kit
When shopping for a new hardware kit for your A3, you'll find several options. While OEM hardware is available, many aftermarket brands offer excellent quality, often with improvements like better corrosion resistance.
- Good (Economy): Brands like Dynamic Friction and some entry-level Carlson kits provide a budget-friendly option that meets basic fitment requirements. These are suitable for drivers in dry climates where corrosion is less of a concern.
- Better (OEM-Quality): Centric and Raybestos are well-regarded aftermarket brands that focus on matching OEM specifications for fit and function. Many technicians trust these brands for reliable performance without the high cost of dealer parts. Their kits are a solid choice for daily driving.
- Best (Premium/Problem-Solver): Look for kits from brands like Dorman or premium lines from Raybestos and Centric that feature coated hardware. These coatings (often zinc or phosphate) provide an extra layer of protection against rust and corrosion, which is a significant advantage in areas with harsh winters. Dorman is also known for creating "OE FIX" parts that sometimes improve on the original factory design.
Known Issues, Recalls, and TSBs
While there are no recalls specifically for the disc brake hardware, the 2006-2014 Audi A3 has been subject to brake-related safety actions. Notably, a recall was issued for certain 2009-2010 A3 models because the ABS control unit could fail, potentially deactivating the ABS and Electronic Stability Control (ESC) systems. The fix involved a software update or module replacement by a dealer. Additionally, Audi has released Technical Service Bulletins (TSBs) addressing brake pulsation and noise, which can be caused by issues like overheated components, improper wheel torque, or corrosion build-up—all of which underscore the importance of using fresh, properly installed hardware.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $5.96 - $40.95 |
| New OEM | $40 - $80 |
| Shop Labor | $118 - $215 (as part of a brake job) |
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes. The old clips have been heat-cycled and bent. They lose their spring tension and won't hold the new pads as securely as they should. Reusing them is a common cause of brake noise and premature wear. For the small cost, it is always worth replacing.
What is included in a typical A3 hardware kit?

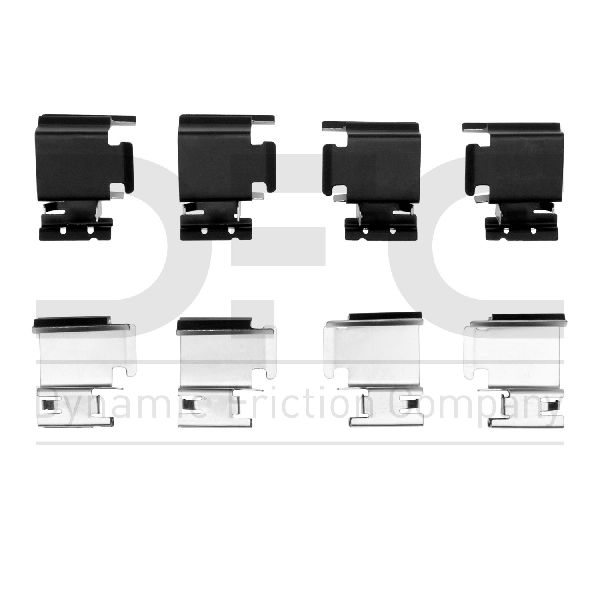

A standard kit for one axle will include the necessary anti-rattle clips/springs that hold the pads in the caliper bracket. Some more comprehensive kits may also include new guide pin boots and bolts.
Will new hardware fix my brake noise?
It can, especially if the noise is a rattle from loose pads or a high-pitched squeal from vibration. However, noise can also come from the pad material itself or from worn rotors. New hardware is one part of a complete solution to brake noise.
Can I reuse the caliper guide pins?
Yes, you can typically reuse the guide pins, but they must be cleaned thoroughly of all old grease and rust. After cleaning, they must be lubricated with a proper high-temperature silicone-based brake lubricant before reinstallation with new rubber boots.
Technical Specifications
OEM Part Numbers: 1K0698269A 8J0698269
Kit typically includes anti-rattle clips, and may include guide pin boots and bolts. Materials vary from standard steel to coated stainless steel for improved corrosion resistance.
