Audi A3 Engine Camshaft Position Sensor Guide (2006-2014)
Having starting problems or a check engine light on your Audi A3? Your camshaft position sensor might be the culprit.
- A check engine light with code P0341 is the most common sign of a failing sensor.
- Symptoms include hard starting, rough idle, stalling, and poor acceleration.
- DIY replacement is very easy, takes under 30 minutes, and requires only a T30 Torx bit.
- A sensor code can sometimes point to a more serious timing chain issue, not just a bad sensor.
Is Your Audi A3 Showing Signs of a Bad Camshaft Sensor?
When the camshaft position sensor on your 2006-2014 Audi A3 starts to fail, the symptoms are hard to ignore. Because this sensor is crucial for engine timing, a bad signal can throw everything off. You are the most likely to notice these issues.
🎬 See a visual breakdown of common bad camshaft sensor symptoms.Top 5 Symptoms
- Check Engine Light: This is the most common sign. The car's computer will detect a problem with the sensor's signal and trigger a warning light. You may see fault codes like P0340 or P0341.
- Engine Won't Start: Your A3 might crank but refuse to start. A completely dead sensor can prevent the ECU from activating the fuel system.
- Hard Starting: The engine may take much longer than usual to start up, cranking for several seconds before finally catching.
- Rough Running and Stalling: The engine might idle poorly, sputter, hesitate when you press the gas, or even stall unexpectedly while driving.
- Poor Fuel Economy: When the engine's timing is off, it burns fuel less efficiently, meaning more trips to the gas pump.
A Warning About Fault Codes
A camshaft sensor fault code (like P0341) does not always mean the sensor itself has failed. On the 2.0T engine used in many A3s, these codes can also be triggered by more serious issues like a stretched timing chain or a failed chain tensioner. If you replace the sensor and the problem continues, it is critical to have a professional inspect your engine's timing components to avoid severe engine damage.
🎬 Watch this expert explanation of timing codes and failed parts.Choosing a New Aftermarket Sensor
When it comes to electronic sensors for a German vehicle like your Audi, quality matters. While there are many budget-friendly options, a cheap, poorly made sensor can fail quickly or provide inaccurate readings, leaving you with the same problems. It's often best to choose a brand known for quality electronics.
Brand Quality Tiers
- Premium Aftermarket (OEM Quality): Brands like Hella, Delphi, Bosch, and NGK are often original equipment suppliers to Audi and other German automakers. These parts are engineered to meet or exceed the original specifications and offer the best reliability.
- Reputable Aftermarket: Brands like Standard Ignition (SMP), Walker Products, and Holstein have a long history of producing reliable aftermarket parts. They offer a good balance of quality and price.
- Economy Brands: Brands such as Dorman, URO Parts, and other lower-priced options can be a gamble. While they may work, their lifespan and signal accuracy can be inconsistent for sensitive electronics on an Audi. They are a budget option, but may lead to replacing the part again sooner.
How Much Does a New Camshaft Sensor Cost?
The cost depends on whether you do the job yourself or take it to a shop, and the quality of the part you choose.
| Item | Estimated Cost |
|---|---|
| New OEM Part | $150 - $220 |
| New Aftermarket Part | $23 - $113 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $208 - $286 |
DIY Installation is Easy
Replacing the camshaft position sensor on a 2006-2014 Audi A3 is a very simple job that most owners can do at home in under 30 minutes. 🎬 Watch this quick walkthrough to see the sensor replacement process. It is typically located right on top of the engine near the oil cap and held in by a single T30 Torx bolt. This can save you around $100 in labor costs.
Frequently Asked Questions
Where is the camshaft position sensor located on the 2006-2014 Audi A3?
It is usually found on the top of the engine, mounted in the cylinder head or valve cover. On many 2.0T engines, it is directly next to the oil filler cap, making it very easy to access after removing the plastic engine cover.
Can I drive my Audi A3 with a bad camshaft position sensor?
It is not recommended. While the car may run for a short time, it is at high risk of stalling at any moment, including in traffic, which is dangerous. Continuing to drive could also lead to other engine problems, so it's best to get it replaced as soon as possible.
What tools do I need to replace the sensor?
You typically only need a T30 Torx bit or socket to remove the single bolt holding the sensor in place. A flathead screwdriver might be helpful for releasing the electrical connector clip. The job is very straightforward.
What's the difference between a camshaft and crankshaft sensor?
They work together. The crankshaft sensor tracks the engine's overall speed and piston position, while the camshaft sensor tracks the position of the valves. The computer needs both signals to time the spark and fuel perfectly. A problem with either sensor can cause similar symptoms.
Are there any recalls for the camshaft position sensor on the Audi A3?
No, there are no specific recalls from Audi or NHTSA for the camshaft position sensor on the 2006-2014 A3 models. There have been recalls for related components like the camshaft adjuster pulley, but not the sensor itself.
Helpful Videos

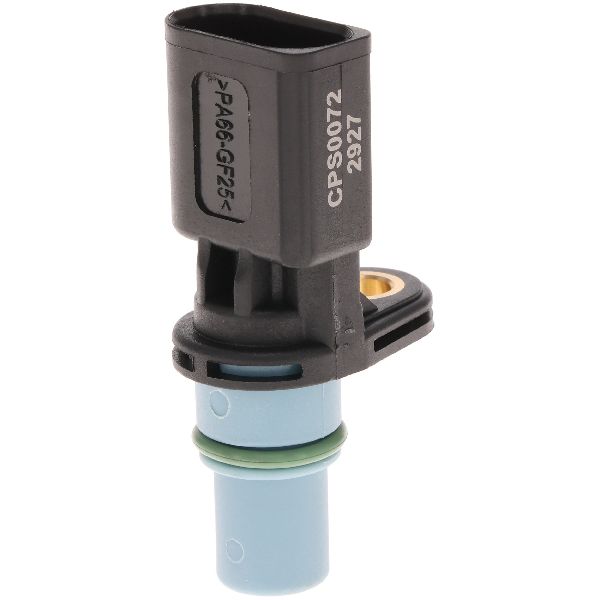

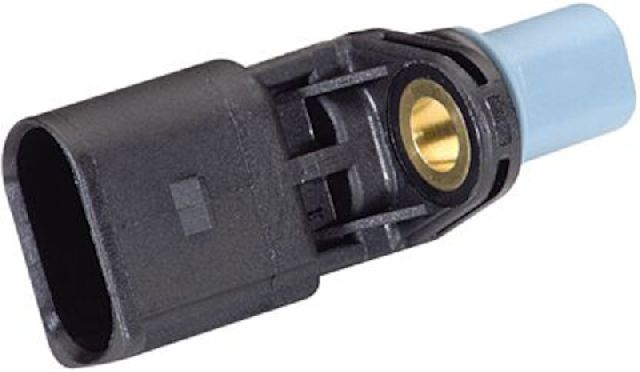

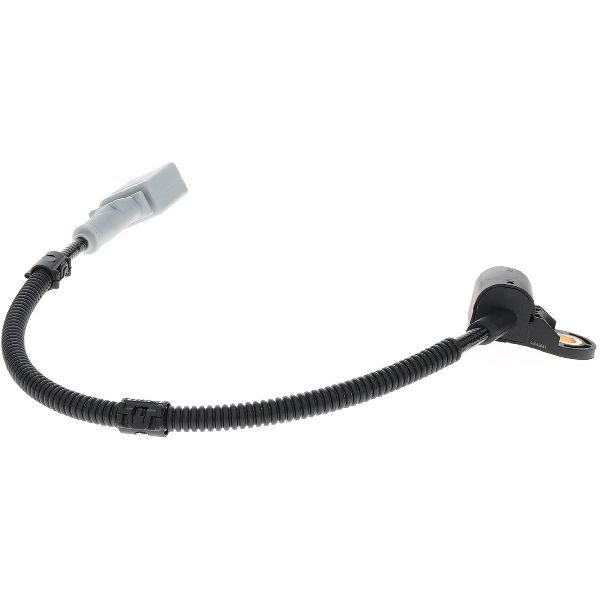

Technical Specifications
OEM Part Numbers: 07K907601A 07L905163C 06C905163B 06A905161A
Hall Effect Sensor, 3-Pin Connector
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
