Your Guide to the 2006-2014 Audi A3 Engine Oil Pressure Switch
Don't let a tiny, inexpensive sensor cause big trouble for your Audi A3's engine.
- An oil pressure warning is a 'stop now' command; never ignore it.
- Always check your oil level first, but a faulty switch is a very common cause of false alarms.
- For best results, choose an OEM-supplier brand like Hella or a trusted aftermarket name like Standard Ignition.
- Verify the part number and color of your old switch before ordering, as your A3 may have more than one.
Understanding the Oil Pressure Warning
Seeing the red oil pressure light on your Audi A3's dash is serious. Your first step should always be to pull over safely, turn off the engine, and check your oil level. If the oil level is correct, the problem could be a faulty oil pressure switch. These switches are a common failure item and can give false warnings. While the switch itself is a simple and cheap part, ignoring its warning can lead to catastrophic engine failure.
Warning: Real vs. False Alarm
You cannot tell the difference between a faulty switch and real, engine-destroying low oil pressure. If the oil pressure light comes on, stop driving immediately. Towing the vehicle is the safest option to avoid a four-figure engine repair bill.
Choosing the Right Aftermarket Switch
When buying a new oil pressure switch, you have many options. For a critical part like this, quality matters. The brands available can be grouped into tiers based on reputation and whether they supply parts directly to Audi (OEM suppliers).
- Top Tier (OEM Suppliers): Brands like Hella and Vemo are known to be Original Equipment Manufacturers for Audi and other German automakers. Choosing one of these brands often gets you the exact same quality as the dealer part, just without the Audi logo and price tag. They are highly recommended for fit and reliability.
- Reliable Aftermarket: Brands like Standard Ignition, Beck Arnley, and Facet have a long history of producing quality aftermarket parts. They focus on meeting or exceeding original specifications and are a solid choice for a dependable repair.
- Budget-Friendly: Brands like URO Parts and other lower-cost options offer significant savings. However, their quality can be inconsistent, especially for electronic parts. While some users have no problems, others report early failures. It's a gamble that might save you a few dollars now but could lead to another repair sooner than you'd like.
Pro Tip: Your Audi A3 may have more than one oil pressure switch, often color-coded (e.g., black, brown, blue). Before ordering, it is critical to visually inspect your old switch or use your VIN to confirm the correct part number, pressure rating, and connector type for your specific engine (2.0T or 3.2L).
🎬 Watch this guide to identify different color-coded pressure switches.Cost of Replacing the Oil Pressure Switch
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $9 - $34 |
| New OEM (Dealer) Switch | $50 - $85 |
| Shop Labor | $75 - $150 |
| Total (DIY) | $9 - $34 |
| Total (Shop) | $84 - $184 |
Frequently Asked Questions
Where is the oil pressure switch located on a 2006-2014 Audi A3?
The oil pressure switch (or switches) is typically located on the engine block, screwed into or near the oil filter housing. 🎬 See this video for help locating and replacing the switch. This makes it accessible during an oil change. You may need to remove the plastic engine cover to see it.
Is replacing the oil pressure switch a DIY job?
Yes, for most people with basic tools, this is a straightforward DIY repair. The switch simply unscrews and the new one screws in. You will likely need a deep 24mm socket. Be prepared for a small amount of oil to spill when you remove the old switch.
My oil light came on but went away. Is it safe to drive?
No. An intermittent warning is a classic sign of a failing switch. However, it could also be a sign of a failing oil pump or other serious internal engine issue. Do not risk it. Have the vehicle inspected.
🎬 Watch: How to fix an intermittent oil pressure warning.Are there any recalls for the Audi A3 oil pressure switch?
No, there are no specific recalls from the NHTSA for a faulty engine oil pressure switch on the 2006-2014 Audi A3. There is a Technical Service Bulletin (TSB) for a related error code (P0521), but it is often caused by a software glitch after the vehicle has been in 'transport mode' and does not require sensor replacement.
Helpful Videos

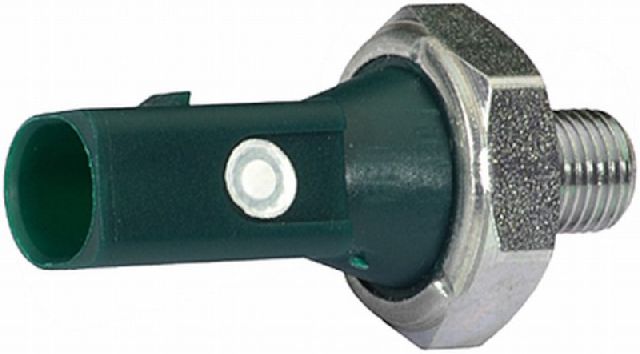

Technical Specifications
OEM Part Numbers: 06D919081B 06A919081J 06D919081D 06E919081C 038919081M
Common thread size is M10x1.0. Pressure ratings vary by part number and color (e.g., 1.2-1.6 BAR). Connector is typically a 1-pin or 2-pin design.
