A Guide to Direct Ignition Coils for the 2006-2014 Audi A3 Quattro
Solve common engine misfires and restore performance by choosing the right new aftermarket ignition coil for your A3.
- Ignition coil failure is a very common issue for the 2.0T engine in this A3 model; look for TSB information regarding updated parts.
- Always replace all four ignition coils and spark plugs at the same time to ensure long-term reliability and performance.
- This is an extremely easy DIY repair that requires basic tools and can be done in under 30 minutes, saving you significant labor costs.
- Choose high-quality aftermarket brands like Bremi, Hella, or Denso for OEM-level performance without the dealership price tag.
Is Your Audi A3 Stuttering? It Could Be an Ignition Coil
A failing ignition coil on the 2.0T engine in the 2006-2014 Audi A3 Quattro can cause noticeable problems. Because each cylinder has its own coil, the failure of just one can make your smooth and powerful engine feel rough and weak. Common symptoms include a rough idle, engine hesitation when you accelerate, and a general loss of power. You will almost certainly see the Check Engine Light turn on, and it may even flash, which signals a more serious misfire. Other signs can include reduced fuel economy and even a smell of gasoline from the exhaust as unburnt fuel passes through the engine.
Flashing Check Engine Light: Do Not Ignore
If your Check Engine Light is flashing, it indicates a severe engine misfire that can quickly damage your expensive catalytic converter. It is strongly recommended to stop driving the vehicle and have it inspected immediately. Continuing to drive could lead to a much more expensive repair.
Known Issues: TSB for Ignition Coils
Ignition coil failure is a well-documented issue on this generation of Audi's 2.0T engine. Audi issued a Technical Service Bulletin (TSB) for premature failure on some early ignition coils. This specifically affected part numbers like 06H 905 115 A and 06H 905 115 B. The recommended fix is to replace all four coils with an updated part number, such as 07K 905 715 F or a newer version, to prevent future issues. No specific recalls for ignition coils were found for this vehicle range in the NHTSA database.
Choosing the Right Aftermarket Ignition Coil
When replacing ignition coils, it is highly recommended to replace all four at the same time, along with the spark plugs. This ensures consistent performance and prevents you from having to do the same job again in a few months when another old coil fails. Here’s a breakdown of the available aftermarket brands:

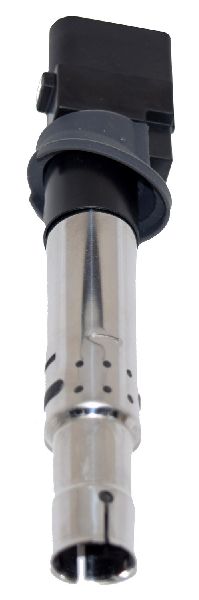

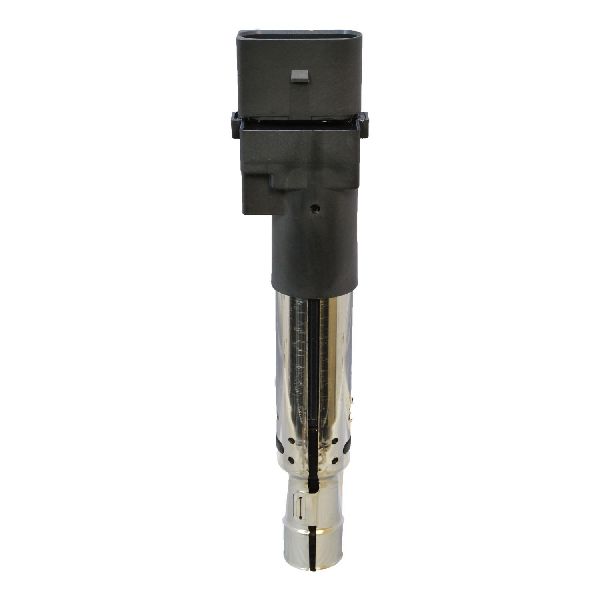

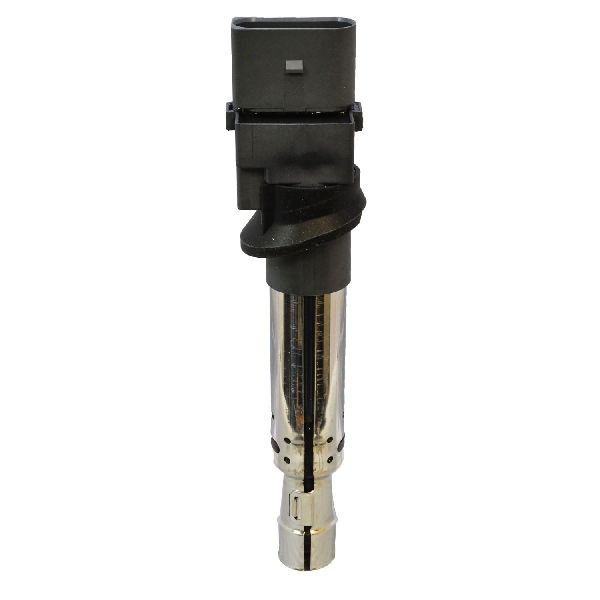

- OEM-Tier (High Quality): Brands like Bremi, Hella, and Denso are often original equipment suppliers to Audi or are known for producing parts that meet or exceed OEM specifications. These are a reliable choice for stock vehicles, providing factory performance and durability. Many owners on forums trust these brands for a balance of quality and value.

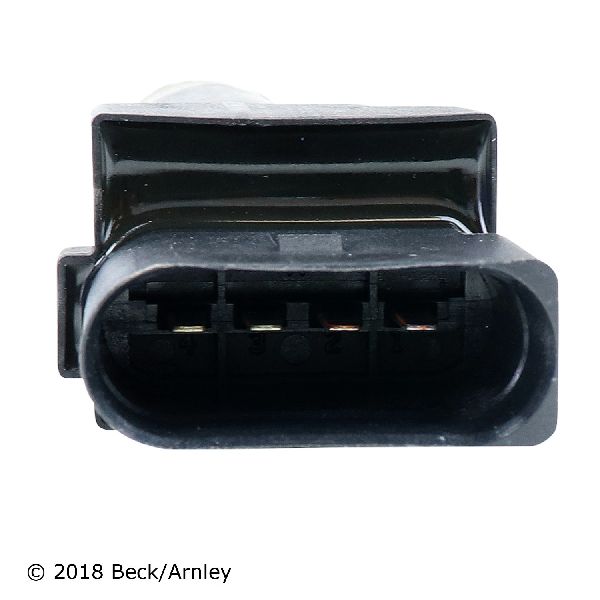

- Reputable Aftermarket (Good Quality): Beck Arnley is known for sourcing parts from various quality manufacturers, often including OEM suppliers. They are generally a solid mid-tier option.
- Budget-Friendly (Use with Caution): Brands like Prenco, Facet, and Vemo fall into the budget category. While they offer significant cost savings, their long-term reliability and performance may not match that of higher-tiered brands. Some owners report premature failures with budget coils, leading to more repairs down the line.

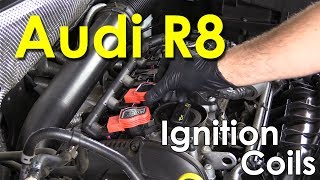

Pro Tip: Many Audi enthusiasts recommend using the "red top" ignition coils, originally from the Audi R8. While testing shows they may not provide a significantly stronger spark than stock on an unmodified engine, they are a high-quality OEM part known for reliability and have become a popular, trusted upgrade.

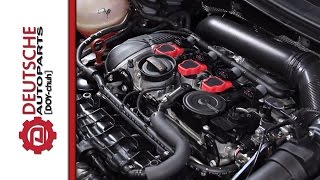

🎬 See how to install the popular R8 red top coils.How Much Does an Ignition Coil Replacement Cost?
Replacing an ignition coil on the Audi A3 is one of the easiest and most cost-effective DIY repairs you can perform. A repair shop will charge for labor, turning a small job into a more significant expense.
| Item | Cost Range |
|---|---|
| New Aftermarket Ignition Coil (Single) | $39.32 - $74.36 |
| New OEM Ignition Coil (Single) | $30 - $55 |
| Shop Labor (All Four Coils) | $52 - $76 |
| Total Professional Replacement (Single Coil) | $168 - $242 |
Frequently Asked Questions (FAQ)
Do I need to replace all four ignition coils at once?
Yes, it is highly recommended. Ignition coils are subjected to the same heat and wear, so when one fails, the others are likely not far behind. Replacing them as a set, along with new spark plugs, ensures reliability and balanced engine performance.
Is replacing an ignition coil a difficult DIY job?
No, this is one of the easiest maintenance tasks you can do. The coils are located directly on top of the engine and are easily accessible after removing the plastic engine cover. The job requires only basic tools and can typically be completed in under 30 minutes.

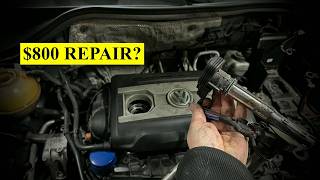

🎬 Watch this DIY walkthrough to save money on dealer repairs.What tools are needed to replace the ignition coils?
You will need a tool to release the electrical connector clips (a small flathead screwdriver works), and that's often it. The coils on the 2.0T engine are typically held in by friction and can be pulled straight out. No bolts hold them in place. A coil pack puller tool can make removal easier, but it is not required.
What are the common fault codes for a bad ignition coil?

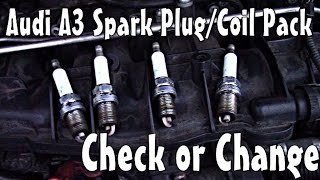

A failing ignition coil will trigger misfire codes. A general random misfire code is P0300. Specific cylinder misfires are coded from P0301 (Cylinder 1) to P0304 (Cylinder 4). You can swap the suspected bad coil with a coil from another cylinder; if the fault code follows the coil to the new cylinder, you have confirmed the coil is the problem.

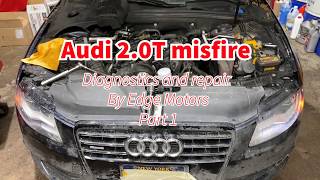

🎬 Watch: A pro mechanic's guide to diagnosing 2.0T misfires.Helpful Videos
Technical Specifications
OEM Part Numbers: 07K905715G 07K905715F 06H905115B 06E905115E 06E905115F
Direct 'Coil-on-Plug' Ignition Coil, 4-pin connector, 12V operation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
