An Owner's Guide to the 2006-2014 Audi A3 Quattro Engine Oil Pressure Switch
That red oil can on your dash is serious; here’s how to choose the right replacement oil pressure switch for your A3.
- Never ignore a red oil pressure warning light; stop the engine immediately to prevent catastrophic damage.
- Your 2.0T engine likely has two separate oil pressure switches (brown and blue) that should be replaced together.
- Before replacing the switch, investigate known TSBs or recalls that can cause the same warning light.
- Choose a high-quality aftermarket brand like CRP/Rein or Hella to ensure reliability and avoid false warnings.
Is Your Oil Pressure Light On?
The most common sign of a problem with your oil pressure switch is the red oil pressure warning light illuminating on your dashboard. This light might stay on constantly or flicker, especially during idle or after a cold start. It's important to verify your oil level is correct first. If the oil level is fine but the light is on, the switch itself could be faulty, sending a false signal. However, you should never assume the warning is false; it could be indicating a real and dangerous loss of oil pressure.
Do Not Drive with the Oil Pressure Light On
If the red oil pressure light comes on, pull over and shut off the engine as soon as it is safe to do so. 🎬 Watch: What to do when your oil light comes on Driving with low oil pressure, even for a short time, can cause severe, irreversible engine damage requiring a complete engine replacement.
Known Issues for the 2006-2014 Audi A3 Quattro
Before replacing the switch, be aware of other issues that can trigger an oil pressure warning on these vehicles:
- Blocked Turbocharger Oil Strainer (Recall 21H7): Some 2013-2014 models were part of a recall where the oil strainer for the turbocharger could get clogged with deposits. This starves the turbo of oil, which can trigger an oil warning light and lead to turbo failure. While the recall is for specific years, the underlying issue of oil deposits can affect other model years.

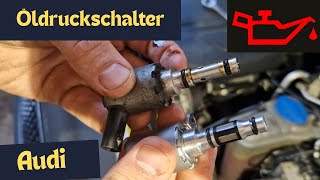

- Faulty Oil Filter Housing Plug (TSB 2041093/4): A Technical Service Bulletin was issued for a condition where a rubber plug inside the oil filter housing has insufficient tension. This can cause an oil pressure malfunction (DTC P164D00) and trigger the warning light. The fix is to replace the small rubber plug and spring inside the housing.
- Wiring and Connectors: The wiring leading to the oil pressure switch can become corroded or damaged over time, leading to intermittent signals and false warnings. It's always a good idea to inspect the connector and wiring when replacing the switch. 🎬 See how to fix an intermittent oil pressure warning
Choosing the Right Aftermarket Oil Pressure Switch
With a part this critical, quality matters more than price. A cheap, unreliable switch might fail to warn you of a real problem or give you constant false alarms. Aftermarket brands for your A3 Quattro generally fall into three tiers.
Tier 1: OEM-Quality Brands
These brands are often the original equipment manufacturers for Audi or are known for equivalent quality. They are the most recommended choice for reliability.
- CRP (Rein): CRP Automotive is highly regarded for supplying OE-quality parts for European cars and has a reputation for trustworthiness.
- Hella: A major German OEM supplier, Hella parts are known for their quality and reliability, making them a safe bet.
Tier 2: Reputable Aftermarket Brands
These brands are well-known in the aftermarket and can offer a good balance of price and quality, though they may not always match OEM specifications exactly.
- Beck Arnley: This brand is a reboxer, meaning the quality can vary. You might receive an OEM part in their box, or you might get a lower-quality part from a different source. It's a bit of a gamble.
- Facet: An established Italian brand that is generally considered a decent mid-range option. User reviews suggest they are a step up from basic value brands.
- Standard Ignition (SMP): A large, well-known manufacturer of aftermarket engine management parts.
Tier 3: Value Brands
These brands focus on providing the lowest price point. For a non-critical part, they can be a good option, but for an oil pressure switch, the potential risk may outweigh the savings.
- Walker Products
- Global Parts
- Rostra Powertrain
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $7.98 - $45.01 |
| New OEM | $30 - $60 |
| Shop Labor | $100 - $180 |
Frequently Asked Questions (FAQ)
How many oil pressure switches does my A3 Quattro have?
Many 2.0T engines in this generation have a two-stage oil pressure system that uses two switches: a brown switch for reduced pressure at low RPM and a blue switch for the main pressure stage at higher RPM. They are located near the oil filter housing. It is often recommended to replace both at the same time.
🎬 Watch this step-by-step guide to replacing the oil pressure sensorCan I drive my car if the oil pressure light is on?
No. You should pull over and turn off the engine as soon as it is safe. Continuing to drive could starve the engine of oil, leading to catastrophic failure within minutes. Always treat this warning as a critical emergency until proven otherwise.
What does it mean if the light flickers but my oil level is full?
This could mean several things: the oil pressure switch is failing, the wiring to the switch is faulty, you are using the wrong viscosity oil, or there is a more serious internal engine problem like a failing oil pump or clogged oil passages. A flickering light is just as serious as a constant light.
Do I need to reset anything after replacing the switch?
No special reset procedure is required. Once a new, functioning switch is installed and it detects proper oil pressure, the warning light on the dashboard will turn off. If the light remains on, there may be another issue that needs to be diagnosed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 038919081K 03C919081 06K919081D
The 2.0T engine often uses a two-switch system: a reduced pressure switch (often brown, ~0.55-0.85 bar) and a main pressure switch (often blue, ~1.2-1.6 bar). Both typically use a 1-pin connector and require a 24mm deep socket for removal.
