A Guide to the Engine Coolant Temperature Sensor for the 2006-2014 Audi S3
Understanding common failures and choosing the right replacement for your S3's 2.0T engine.
- A failing ECT sensor on an S3 can cause poor fuel economy, erratic gauge readings, and constant running of cooling fans.
- Symptoms can mimic a bad thermostat, but an erratic gauge is a strong indicator of a sensor issue.
- Quality aftermarket sensors from brands like Standard Ignition or Holstein are reliable and cost-effective alternatives to OEM parts.
- Replacement is a feasible DIY job for most, but access is tight. Always replace the O-ring and retaining clip with the sensor.
Understanding the Engine Coolant Temperature Sensor in Your S3
The Engine Coolant Temperature (ECT) sensor is a small but vital part of your 2006-2014 Audi S3's 2.0T engine. This sensor, known in the Audi world as the G62 sensor, constantly monitors how hot your engine's coolant is. It sends this critical temperature data to the engine's computer (ECU). The ECU then makes real-time adjustments to the fuel injection and ignition timing for optimal performance and efficiency. It also tells the radiator fans when to switch on to prevent overheating and controls the temperature gauge you see on your instrument cluster. A failure in this part can lead to a range of engine performance problems.
Common Symptoms of a Failing ECT Sensor
When the ECT sensor starts to fail, it can send incorrect information to the ECU, causing a variety of noticeable issues. Recognizing these signs can help you diagnose the problem before it leads to more significant trouble.
🎬 Watch: A visual guide to common bad coolant sensor symptoms.- Check Engine Light: This is often the first sign. A scan will typically reveal fault codes related to the ECT sensor circuit.
- Erratic Temperature Gauge: The gauge on your dashboard might swing wildly, read extremely high or low, or not move at all.
- Poor Fuel Economy: If the sensor incorrectly tells the ECU the engine is cold, the computer will enrich the fuel mixture, causing your S3 to use more gas than necessary.
- Black Smoke from Exhaust: A rich fuel mixture that isn't burning completely can result in black smoke coming from the tailpipe.
- Cooling Fans Running Constantly or Not at All: The sensor's failure can cause the fans to run continuously, draining the battery, or not turn on when needed, risking overheating.
- Rough Idle and Hard Starting: The engine may run rough, misfire, or be difficult to start, especially when warm, because the ECU is using the wrong fuel and timing settings.
Is It the Sensor or the Thermostat?
Symptoms of a bad ECT sensor can sometimes be confused with a failing thermostat. A key difference is that a thermostat stuck open will typically cause the engine to run too cool and take a very long time to warm up. If your temperature gauge drops while sitting in traffic after being warm, it could point to either part, but an erratic gauge often points to the sensor.
Choosing the Right Aftermarket ECT Sensor
For a part like the ECT sensor on the 2.0T engine, you don't necessarily need to buy the OEM part from an Audi dealer. Many aftermarket brands provide reliable alternatives. The key is to choose a reputable brand. Aftermarket sensors are a cost-effective and viable option. Based on general market reputation, here is a breakdown of the available brands:
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand. They have a long history and are known for producing parts that meet or exceed OEM specifications. Many professionals trust and use their products.
- Holstein: A brand that has gained a reputation for being a solid mid-tier choice. They offer a good balance of quality and price, and their parts often come with a multi-year warranty.
- Four Seasons: Well-known in the climate control world, they also offer a range of sensors. They are generally seen as a reliable standard replacement option.
- Motorad: Primarily known for thermostats, their sensors are typically standard replacement grade, offering a functional and budget-friendly solution.
- True Tech: This brand may fall into the economy or budget-friendly category. While it can save you money upfront, long-term reliability might be a concern compared to more established brands.
Pro Tip: When replacing the sensor, it is highly recommended to also replace the small plastic retaining clip and the rubber O-ring. These parts are inexpensive and ensure a proper, leak-free seal.
Cost of Replacing an Audi S3 ECT Sensor
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor | $45 - $65 |
| New Aftermarket Sensor | $13 - $41 |
| Shop Labor | $100 - $200 |
| Total (DIY) | $13 - $41 |
| Total (Shop Installed) | $113 - $241 |
(Cost estimates are approximate and can vary by location and supplier.)
Frequently Asked Questions (FAQ)
Where is the ECT sensor located on my 2006-2014 S3?
On the 2.0T engine from this era, the ECT sensor is typically located on a coolant flange at the back of the engine, closer to the passenger side firewall. It can be in a tight spot, and sometimes requires a mirror to locate visually for the first time. 🎬 See this video to locate sensors on the 2.0T engine. On some later TSI engine variants, it may be integrated into the water pump/thermostat housing under the intake manifold.
Is this a difficult DIY job?
For a moderately experienced DIYer, this is a manageable job. The main challenge is the tight access at the back of the engine. No special tools are required, but patience is key. The sensor is held in by a simple plastic clip. The job can usually be completed in under an hour.
🎬 Watch this step-by-step walkthrough of the sensor replacement process.Do I need to drain all the coolant to replace it?
No, you do not need to drain the entire cooling system. When you pull the old sensor out, a small amount of coolant will spill, so it's wise to have a rag or a small pan ready. If you work quickly, coolant loss will be minimal. Make sure the engine is completely cool before starting to avoid burns and reduce coolant pressure.
Are there any recalls for the ECT sensor on the S3?
There are no specific recalls for the Engine Coolant Temperature sensor itself on the 2006-2014 Audi S3. There was a recall for a temperature sensor in the DSG transmission for some 2009-2010 models, but this is unrelated to the engine coolant sensor. There have also been recalls on later model years for an electric after-run coolant pump, but not the sensor. Always check the NHTSA website with your VIN for the most current information.
Helpful Videos

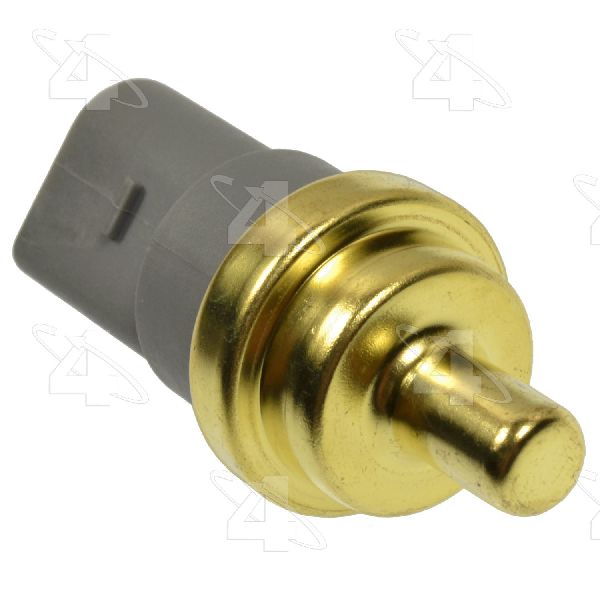

Technical Specifications
OEM Part Numbers: 06A919501A 06A919501
Typically a 2-pin, grey connector sensor that is secured by a plastic clip.
