A Guide to Replacing the Starter Motor on Your 2006-2014 Lincoln Mark LT
Is your Lincoln Mark LT failing to start? This guide will help you diagnose the problem and choose the right new aftermarket starter.
- Always test the battery and check cable connections first; a weak battery is the most common cause of starting issues on the Mark LT.
- A single, loud click when turning the key is a classic symptom of a failed starter solenoid or motor.
- Replacing the starter is a feasible DIY job for those with mechanical skill, but accessing the top bolt can be challenging.
- For reliability, a new OEM Motorcraft starter is a popular choice, though aftermarket brands like ACDelco and MPA offer a more budget-friendly option with mixed reviews.
Is Your Lincoln Mark LT Starter Failing?
A failing starter can leave you stranded. Before you blame the starter, it's important to know that many symptoms of a bad starter can also be caused by a weak battery or loose electrical connections. Always check your battery's health and clean the battery terminals first. 🎬 Watch: Step-by-step diagnostic walkthrough for a no-crank condition. A fully charged battery should read around 12.6 volts.
Common Failure Symptoms:
- Single Loud Click: You turn the key, hear one sharp click, but the engine doesn't crank. This often points to a problem with the starter solenoid, which is part of the starter motor assembly. 🎬 See this repair hack for a starter that clicks but won't crank.
- No Sound at All: If your dashboard lights turn on but you hear nothing when you turn the key, the starter motor may have completely failed.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. If the battery is good, the starter motor itself could be wearing out and drawing too much power.
- Grinding Noise: A harsh grinding sound during or after the engine starts can indicate a problem with the starter's gear not meshing properly with the engine's flywheel. Ignoring this can lead to more expensive flywheel damage.
Don't Mistake a Bad Battery for a Bad Starter
The most common reason a Lincoln Mark LT won't start is a dead or weak battery. If your interior lights are dim or you hear a rapid clicking sound when trying to start, your battery is the likely culprit. Always have your battery tested and check for corroded or loose cable connections before deciding to replace the starter.
Choosing the Right Aftermarket Starter
When replacing the starter on your Mark LT, you'll face a choice between OEM (Original Equipment Manufacturer) parts from Ford/Motorcraft and various aftermarket brands. Since the original starter often lasts for many years, some owners prefer to stick with a new Motorcraft unit for proven reliability. However, aftermarket parts offer significant cost savings.
Brand Quality: New Aftermarket Options
For new aftermarket starters, two available brands are ACDelco and MPA.
- ACDelco: While ACDelco is the original parts brand for GM vehicles, its parts for other makes like Ford are often manufactured by third parties and re-labeled. Forum discussions show mixed reviews from Ford truck owners; some have experienced premature failures, while others find them to be an acceptable, budget-friendly option.
- MPA (Motorcar Parts of America): MPA is a large company that manufactures and remanufactures starters and alternators for many brands. They note that Ford sometimes used different starter suppliers for the same vehicle, so an aftermarket replacement may look different from the original but will still fit and function correctly. While specific forum reviews are less common, they are a major supplier in the aftermarket industry.
New vs. Remanufactured
You will see both "new" and "remanufactured" aftermarket starters available. New starters are built with all-new components. Remanufactured starters use the original housing (the "core") but are rebuilt with new internal parts like bearings, brushes, and solenoids. While remanufactured parts can be a good value, some users report inconsistent quality compared to new parts or OEM.
Starter Replacement Cost for 2006-2014 Lincoln Mark LT
The total cost depends on whether you do the job yourself or hire a professional mechanic. The replacement is considered moderately difficult, primarily due to accessing the top mounting bolt.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $101 - $197 |
| New OEM (Motorcraft) Starter | $140 - $235 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement | $225 - $360 (Aftermarket) / $280 - $440 (OEM) |
Frequently Asked Questions
Is it hard to replace the starter on a Lincoln Mark LT?

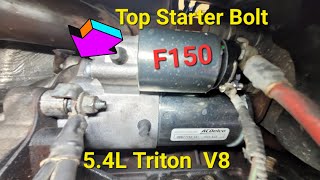

The replacement is moderately difficult. It requires lifting the vehicle safely and working underneath. The starter is held by three bolts where the engine meets the transmission. The bottom two bolts are easy to access, but the top bolt can be very difficult to reach without long extensions and a swivel socket. 🎬 Watch: How to reach that difficult top starter bolt. The estimated labor time for a professional is around 1-1.5 hours.
Can I drive my Mark LT with a bad starter?
No. If the starter motor has failed, the engine will not be able to crank and start. You will need to have the vehicle towed for repair.
Are there any recalls on the starter for this truck?
No, there have been no specific recalls or Technical Service Bulletins (TSBs) issued by Lincoln or the NHTSA for the starter motor on the 2006-2014 Mark LT.
Should I buy a new or remanufactured starter?
A new starter offers the peace of mind of all-new components. A quality remanufactured starter can be a good value, as it uses a durable OEM housing with new internal wear items. However, quality can vary between brands, and some owners have reported issues with lower-quality remanufactured units failing prematurely.

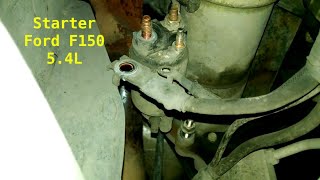

Helpful Videos
Technical Specifications
OEM Part Numbers: 6L3Z-11002-CA 9L3Z-11002-A 5L3Z-11002-A 6L3Z-11002-AA 7L1Z-11002-A F81Z-11V002-AARM SA-966
Voltage: 12V, Tooth Count: 12, Power: 1.4 kW, Rotation: Clockwise, Type: Permanent Magnet Gear Reduction (PMGR)
