Ford E-350 Super Duty (2006-2015) Vehicle Speed Sensor Guide
Solve erratic shifting and speedometer problems on your Ford van by understanding and replacing the vehicle speed sensor.
- Symptoms of a bad VSS include harsh shifting, a dead speedometer, and a Check Engine Light (P0500).
- Before buying, you MUST check if your sensor is externally on the transmission, on the rear differential, or internally in the transmission pan.
- For external sensors, replacement is very easy and can be done in under 30 minutes with an 8mm socket.
- Quality aftermarket brands like NGK/NTK and Standard Ignition are reliable alternatives to the more expensive OEM Motorcraft part.
Is Your E-350's Speed Sensor Failing?
A bad vehicle speed sensor on a 2006-2015 E-350 Super Duty can cause serious and noticeable problems. Because it provides the main speed signal for the transmission and speedometer, its failure directly impacts how your van drives. Ignoring these symptoms can lead to poor fuel economy, unsafe driving conditions, and unnecessary stress on your transmission. In some cases, the van may enter a 'limp mode' with reduced power to protect the transmission.
Common Failure Symptoms
Here are the most common signs that your VSS is going bad:
- Erratic or Harsh Shifting: This is the most common symptom. The transmission may slam into gear, shift at the wrong times, or feel like it's slipping because it doesn't know the correct vehicle speed.
- Erratic or Dead Speedometer: The speedometer needle may jump around, read zero, or show a speed that is clearly incorrect.
- Check Engine Light: A failing sensor will often trigger the Check Engine Light and store a diagnostic trouble code, most commonly P0500. 🎬 See how to diagnose and fix the P0500 trouble code.
- Flashing Overdrive (O/D) Light: A flashing O/D light on the shifter is a common sign that the computer has detected a transmission fault, often linked to the VSS.
- Cruise Control Not Working: The cruise control system relies on a steady speed signal. If the signal is bad, the cruise control will not work.
- ABS Light On: In some configurations, the VSS also provides data for the Anti-lock Brake System (ABS), and a failure can cause the ABS warning light to come on.
Important: Check Sensor Location Before Buying
For the 2006-2015 E-350, the VSS can be in a few different places depending on your specific year and transmission (like the 4R75E, 5R110W, or 6R140). Always visually inspect your vehicle before ordering a part.
- Most Common (External): On the driver's side of the transmission, near the rear where the driveshaft connects. It's held in by a single 8mm bolt. This is a very easy repair. 🎬 Watch this step-by-step walkthrough for replacing the external sensor.

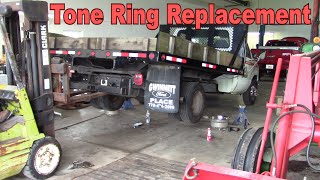

- Less Common (Rear Differential): On some models, the sensor is on top of the rear differential and also serves as the ABS sensor. 🎬 Watch this guide for fixing rear differential sensor issues.
- Internal (6R140 Transmission): On some later models in this range (typically 2011+), the sensor is located inside the transmission oil pan. This is a much more difficult job that requires draining the fluid and removing the pan.
Choosing Your Aftermarket Replacement Part
When replacing the VSS, you can choose between an expensive OEM Motorcraft part or a more affordable aftermarket brand. For a simple sensor like this, a quality aftermarket part is often a smart choice.
- Top-Tier Aftermarket (NGK/NTK, Standard Ignition): Brands like NGK (under their NTK sensor line) and Standard Ignition (SMP) have a long-standing reputation for producing reliable electronic parts that meet or exceed OEM quality. They are excellent choices for a critical sensor.
- Value Aftermarket (Walker Products, Holstein): Brands like Walker Products and Holstein offer a more budget-friendly option. They are a good choice if cost is the primary concern, but for a work vehicle like an E-350, spending a little more for a top-tier brand can provide extra peace of mind.
Pro Tip: When replacing an external sensor, apply a small amount of clean transmission fluid or silicone paste to the new sensor's O-ring. This helps it slide in easily and seal properly without damage.
Cost to Replace Ford E-350 Vehicle Speed Sensor
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $70 - $145 |
| New Aftermarket Part | $20 - $63 |
| Shop Labor (External Sensor) | $75 - $115 |
| Shop Labor (Internal Sensor) | $200 - $350+ (includes fluid/filter service) |
Cost estimates are approximate and can vary by location and vehicle configuration. Labor for an internal sensor is higher due to the need to remove the transmission pan and replace fluid.
Frequently Asked Questions (FAQ)
Can I replace the vehicle speed sensor myself?
Yes, if you have an external sensor on the transmission or differential, this is a very DIY-friendly job. It typically requires only basic hand tools (like an 8mm socket) and can be done in under 30 minutes. If your sensor is inside the transmission pan, the job is much more complex and may be best left to a professional unless you are comfortable with servicing an automatic transmission.
What happens if I don't replace a bad speed sensor?
Continuing to drive with a bad VSS can cause persistent hard shifting, which puts extra wear and tear on your transmission's internal components. You will also have an unreliable speedometer and no cruise control, which can be unsafe. It is best to replace the sensor as soon as possible.
Are there any recalls for the E-350 speed sensor?
As of late 2024, there are no specific NHTSA recalls for the vehicle speed sensor on the 2006-2015 Ford E-350 Super Duty.
What's the difference between an input and output speed sensor?
A transmission has two main speed sensors. The Input Shaft Speed (ISS) sensor measures the speed of the shaft coming from the engine. The Output Shaft Speed (OSS) sensor measures the speed of the shaft going to the wheels (this is the one that controls the speedometer). The computer compares both signals to ensure the transmission is in the correct gear. The part discussed in this article is the OSS sensor.

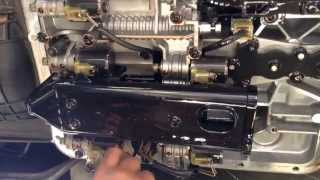

Helpful Videos
Technical Specifications
OEM Part Numbers: DY1073
The primary sensor for this application is an externally mounted Output Shaft Speed (OSS) sensor, typically held by one 8mm bolt. Some configurations may use a sensor on the rear differential or an internal sensor within the transmission pan on 6R140-equipped models.
