Engine Valve Cover Gasket Set Guide for the 2006-2016 Mazda MX-5 Miata (NC)
Addressing common oil leaks and burning smells by choosing the right valve cover gasket for your NC Miata's MZR engine.
- A burning oil smell is the most common sign of a failed valve cover gasket on the NC Miata.
- Replacement is a beginner-friendly DIY job that takes about 1.5 hours.
- Quality aftermarket brands like Fel-Pro, Victor Gaskets, and Beck Arnley are reliable and cost-effective alternatives to OEM.
- Always apply a small amount of RTV sealant at the corners where the timing cover meets the head to ensure a proper seal.
Is Your MX-5's Valve Cover Gasket Failing?
A leaking valve cover gasket is a common issue on the NC Miata as it ages. The symptoms are usually easy to spot and should be addressed to prevent further issues like oil loss or damage to other components. It's a frequent maintenance item for owners around 100,000 miles.
Key Symptoms of a Leak:
🎬 Watch this video to identify common signs of gasket failure.- Burning Oil Smell: This is the most common sign. Oil drips from the leaking gasket onto the hot exhaust manifold, located directly below, and burns off, creating a distinct and unpleasant smell that can enter the cabin.
- Visible Oil Seepage: You may see wet, grimy, or dark areas of oil residue around the edges of the plastic valve cover where it meets the metal cylinder head. It often looks like black soot caked on the side of the engine block.
- Oil on Spark Plugs: When you remove the ignition coils and spark plugs for a change, finding oil in the spark plug wells or on the plugs themselves is a clear sign the spark plug tube seals have failed. This can lead to engine misfires.
- Low Engine Oil: A significant leak can lead to a noticeable drop in your engine oil level between changes, requiring you to top it off frequently.
Known Issues, Recalls, or TSBs
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Mazda for a faulty valve cover gasket design on the 2006-2016 MX-5 Miata. Failures are typically due to normal aging and heat cycles of the gasket material. This is considered a standard wear-and-tear replacement part.
Choosing the Right Aftermarket Gasket Set
For the NC Miata, the difference between an OEM (Original Equipment Manufacturer) and a quality aftermarket valve cover gasket is minimal for most owners. The key is choosing a reputable brand. Aftermarket brands often provide a quality part that meets or exceeds OEM specifications at a lower cost.
Aftermarket Brand Tiers:
- Fel-Pro: Often considered a top-tier aftermarket brand, Fel-Pro is a go-to for many mechanics and DIYers. They are known for reliable seals and sometimes even improve on the original factory design.
- Victor Gaskets (Victor Reinz): A major OEM supplier for many European brands, Victor Reinz gaskets are also highly regarded for their quality and fitment. Some users prefer their softer, more pliable rubber feel compared to other brands.
- Beck Arnley: This brand often sources its parts from various manufacturers, including, in some cases, the original OEM supplier. A Beck Arnley part for a Japanese vehicle like the Miata is often a re-packaged part from a Japanese OEM supplier.
Pro Tip: All three brands—Fel-Pro, Victor Gaskets, and Beck Arnley—are considered reliable choices for the MX-5 Miata. Your decision can confidently be based on price and availability. There is no clear performance disadvantage to choosing one of these quality aftermarket brands over the more expensive OEM part for this specific job.
Estimated Costs for Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $29 - $31 |
| New OEM Gasket Set | $35 - $50 |
| Shop Labor | $81 - $140 |
| Total Professional Replacement | $110 - $190 |
Frequently Asked Questions (FAQ)
Is replacing the valve cover gasket a difficult DIY job?
No, this is considered a relatively easy DIY job for someone with basic tools and mechanical skill. The valve cover is easily accessible on top of the Miata's engine. The process involves removing ignition coils, disconnecting a few hoses and sensors, unbolting the cover, cleaning the surfaces, and reinstalling with the new gasket. Estimated time is about 1 to 1.5 hours.
🎬 Follow this step-by-step guide to replace your valve cover gasket.Do I need any special sealants?
Yes. A small amount of oil-resistant RTV (Room Temperature Vulcanizing) sealant is required at the sharp corners where the timing chain cover meets the cylinder head. This is critical to prevent leaks from these specific points. Apply a small dab in these corners before placing the new gasket and cover.
What else should I replace at the same time?
Since you'll have everything apart, it's the perfect time to replace your spark plugs if they are due. Also, inspect the PCV (Positive Crankcase Ventilation) hose for any cracks or brittleness and replace it if necessary. A faulty PCV system can cause pressure issues that lead to gasket leaks.
What is the correct torque for the valve cover bolts?
The valve cover bolts should be tightened with a torque wrench to a specific, low value to avoid cracking the plastic cover or crushing the new gasket. While specific values vary slightly, a common recommendation is around 8 Newton-meters (or about 70-75 inch-pounds). It's important to tighten them in the correct sequence, usually starting from the middle bolts and spiraling outwards.
🎬 See the full VVT valve cover gasket replacement process here.Helpful Videos
Technical Specifications

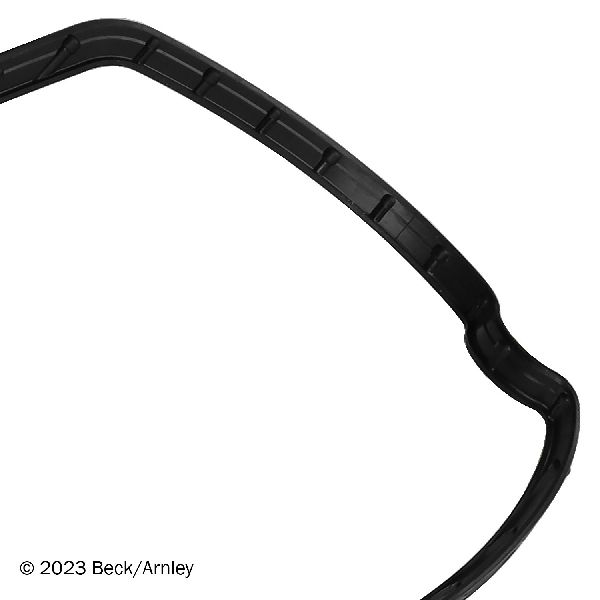

OEM Part Numbers: LF94-10-235B
Set includes main valve cover gasket and four spark plug tube seals. Material is typically a high-temperature molded rubber.
