A Comprehensive Guide to the Serpentine Belt for the 2006-2016 Mazda MX-5 (NC)
Everything an NC Miata owner needs to know about replacing a worn or noisy serpentine belt.
- Verify your model year; 2006-2008 (NC1) and 2009-2015 (NC2/NC3) Miatas require different length belts.
- It is highly recommended to replace the tensioner and idler pulleys with the belt, as their bearings are a known failure point on the NC Miata.
- A rattling noise is more likely a failing pulley than the belt itself and should be investigated immediately.
- High-quality aftermarket brands like Gates and INA are reliable and cost-effective alternatives to the more expensive OEM Mazda part.
Is Your MX-5's Serpentine Belt Failing?
A serpentine belt is a wear item that typically needs replacement every 60,000 to 100,000 miles. On the 2006-2016 (NC) MX-5, the belt and its related pulleys will give you clear warning signs before a complete failure. Ignoring these signs can lead to a breakdown and potential engine damage from overheating. Listen and look for these common symptoms:
- Squealing or Chirping Noises: This is the most common symptom. You may hear a high-pitched noise when you start the engine, accelerate, or turn the steering wheel. This is caused by the belt slipping on the pulleys due to wear, glazing, or improper tension.

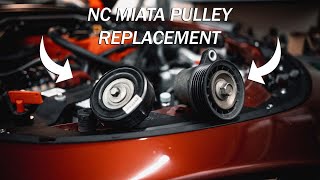

- Rattling or Rumbling Noise: On the NC Miata, a rattling sound from the front of the engine often points to a failing belt tensioner or idler pulley bearing, not the belt itself. 🎬 Watch this video to diagnose and fix engine bay rattling. This is a very common issue and should be addressed when the belt is replaced.
- Visible Wear and Tear: A quick visual inspection with a flashlight can tell you a lot. Look for cracks, frayed edges, missing chunks of the rubber ribs, or a smooth, shiny surface (glazing). Any of these mean it's time for a replacement.
- Accessory System Failures: If your power steering feels heavy, the A/C stops blowing cold, or the battery warning light comes on, it could mean the belt is slipping and failing to power those components properly.
Critical Fitment Note: NC1 vs. NC2/NC3
Mazda changed the alternator pulley size between the 2006-2008 (NC1) and 2009-2015 (NC2/NC3) models. This means they require different length serpentine belts. Installing the shorter NC1 belt on a later model will cause excessive strain and lead to premature failure of the pulley bearings. Always verify you are buying the correct belt for your specific model year.

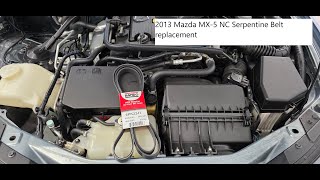

🎬 See this walkthrough for replacing the auxiliary drivebelt.- 2006-2008 (NC1) w/ A/C Belt: Approx. 2241-2245mm (e.g., Gates 6PK2245, Dayco 5060883)
- 2009-2015 (NC2/NC3) w/ A/C Belt: Approx. 2250-2255mm (e.g., Gates 6PK2255, Dayco 5060885)
Choosing the Right Aftermarket Serpentine Belt
For the MX-5, a high-quality aftermarket belt provides the same performance and longevity as the original Mazda part, but at a lower cost. The key is to stick with reputable manufacturers. Avoid unbranded "white-box" parts, as quality can be inconsistent.
- Tier 1 (Recommended): Brands like Gates and INA are excellent choices. Gates is a highly respected brand frequently recommended by mechanics for matching or exceeding OEM quality. INA is a major OEM supplier, especially known for their high-quality tensioners and pulleys, which are common failure points on the NC Miata.
- Tier 2 (Good Value): Brands like Dayco and Continental also offer reliable products that are a good balance of quality and price.
- Tier 3 (Use with Caution): Less-known brands like Skyward are not widely discussed in enthusiast forums for this specific car, so their long-term quality is less verified by owner experience compared to Tier 1 brands.
Pro Tip: Replace the Pulleys at the Same Time
The bearings in the belt tensioner and idler pulleys are a known weak point on the NC Miata. Since the labor to access the belt is the same, it is highly recommended to replace the tensioner and idler pulleys when you replace the belt. This is cost-effective preventative maintenance that can save you from a future breakdown caused by a seized pulley. Worn pulleys can also quickly destroy a brand-new belt.
Cost of Replacing a Serpentine Belt
Replacing the serpentine belt on an NC Miata is an affordable repair. The parts are not expensive, and the labor is straightforward for a mechanic or an experienced DIYer.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Belt (Gates, INA, etc.) | $21 - $71 |
| New OEM Mazda Belt | $50 - $66 |
| Shop Labor (Belt Only) | $100 - $150 |
| Shop Labor (Belt & Pulleys) | $150 - $250 |
Frequently Asked Questions (FAQ)
Is replacing the MX-5 serpentine belt a DIY job?
Yes, for many owners with basic tools, this is a manageable DIY project. It requires removing the battery and airbox for access. The main challenge is using a long 14mm wrench or breaker bar to release the spring-loaded tensioner while routing the new belt with your other hand. Having a diagram of the belt routing is essential.

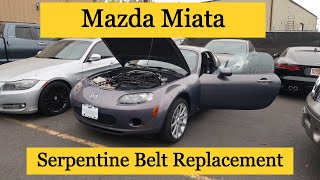

🎬 Follow this step-by-step tutorial for a successful DIY belt replacement.How often should the serpentine belt be replaced?
While belts are designed to last 60,000-100,000 miles, it's best to inspect the belt during every oil change. Due to the common failure of the tensioner and idler pulleys on the NC Miata, many owners proactively replace the belt and pulleys together around the 60,000-mile mark as preventative maintenance.
Are there any recalls for the serpentine belt on the 2006-2016 MX-5?
No. Searches of the NHTSA database show no recalls or Technical Service Bulletins (TSBs) for the serpentine belt, tensioner, or idler pulleys on the 2006-2016 Mazda MX-5.
What happens if the serpentine belt breaks while driving?
If the belt breaks, you will immediately lose power steering, making the car very difficult to turn. The water pump will also stop, causing the engine to overheat rapidly, and the alternator will stop charging the battery. You should pull over safely as soon as possible and shut off the engine to prevent serious damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: LFJ5-15-909B-9U LFJ5-15-909A LFJ5-15-909B LFG1-15-909B LF9J-15-909A

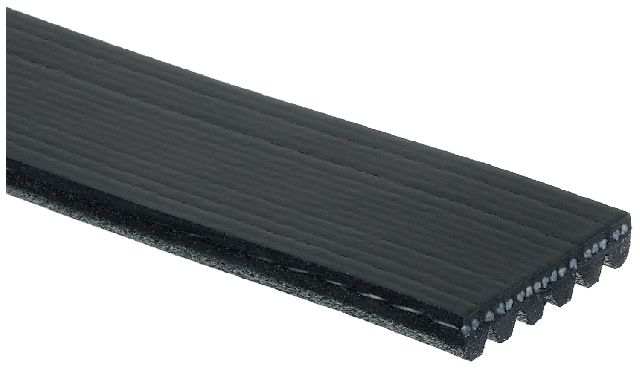

The NC Miata uses a single multi-rib serpentine belt. Length is year-dependent. 2006-2008 models use an ~2245mm belt (6PK2245). 2009-2015 models use an ~2255mm belt (6PK2255).
