A Guide to the HVAC Blower Motor for the 2006-2016 Mercedes-Benz E350
If your climate control fan is noisy or has stopped working, here is what you need to know to get it fixed.
- A chirping or squealing noise from the passenger dash is the most common sign of a failing blower motor.
- If the fan only works on the highest setting, the blower motor resistor is the likely problem, not the motor.
- The replacement procedure is different for the W211 (2006-2009) and W212 (2010-2016) generations, but both are easy DIY jobs.
- It is highly recommended to replace the blower motor and the resistor/regulator at the same time for a lasting repair.
Is Your E350 Blower Motor Failing?

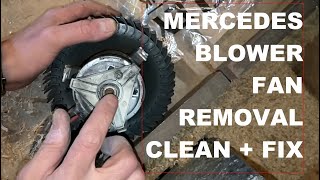

A failing blower motor in your E350 will usually provide some warning before it completely stops working. The most common sign is noise. You may hear a chirping, squeaking, or whirring sound coming from the passenger side of the dashboard. This noise often changes with the fan speed and is typically caused by worn-out motor bearings. 🎬 Watch: How to remove the fan and fix squealing noises. In other cases, the fan may stop working entirely, only work on certain speeds, or blow air very weakly.
Pro-Tip: Don't Confuse it with the Blower Motor Resistor
A separate part called the blower motor resistor (or regulator) controls the fan's speed. A very common issue is the fan only working on the highest setting. This specific symptom almost always points to a failed resistor, not the blower motor itself. However, if your fan is noisy, completely dead on all settings, or runs intermittently, the blower motor is the likely culprit. Mechanics strongly recommend replacing the motor and resistor at the same time, as a failing motor can damage a new resistor, and a bad resistor can strain a new motor.
Generation Differences: W211 vs. W212
The 2006-2016 year range covers two distinct E-Class generations, and they have different methods for securing the blower motor. While the part is in the same location (passenger footwell), the replacement process varies slightly.

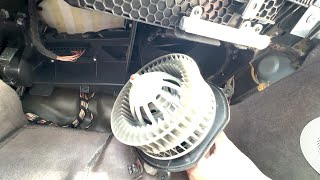

- 2006-2009 (W211 Chassis): The blower motor is held in place by several T20 Torx screws. You will need a Torx driver to remove these screws to release the motor assembly. 🎬 See how to replace the blower motor on a W211.

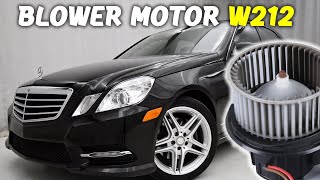

- 2010-2016 (W212 Chassis): The replacement is simpler on this generation. The motor is secured by a plastic tab and a twist-lock mechanism. No screws hold the motor itself; you simply release the tab and rotate the entire assembly to remove it. 🎬 Watch this step-by-step DIY for W212 blower motor replacement.
Choosing the Right Aftermarket Blower Motor

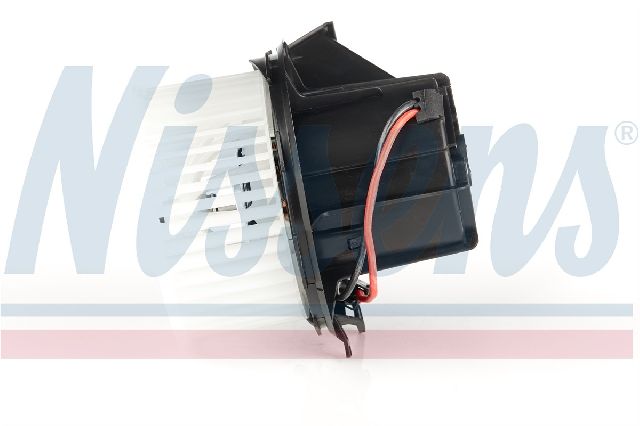

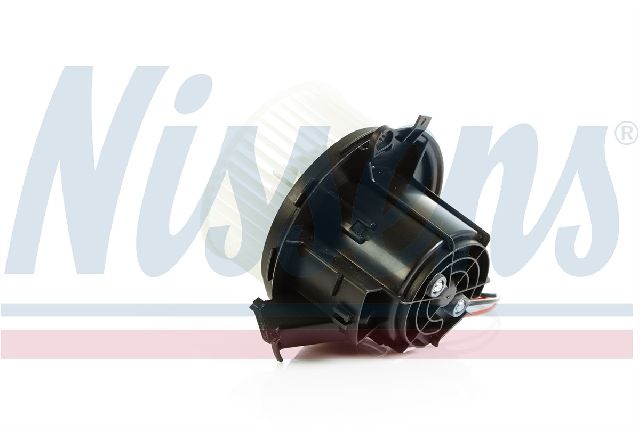

You do not need to get a blower motor from a Mercedes-Benz dealer to get a quality part. The original factory part was often made by Behr or Mahle, and these brands are available as premium aftermarket options. For a reliable and cost-effective solution, brands like Nissens offer a quality alternative. Forum users have reported success with Nissens, noting good build quality that is similar to the original part, including features like balance weights on the fan cage which help ensure quiet, smooth operation. Nissens states their parts are made with high-quality materials and tested to meet or exceed original equipment standards.
Cost to Replace the E350 Blower Motor
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Blower Motor | $187.41 - $212.42 |
| New OEM Blower Motor | $414 - $427 |
| Shop Labor for Installation | $85 - $125 |
Frequently Asked Questions (FAQ)
Is replacing the E350 blower motor a DIY job?
Yes, this is a very DIY-friendly job for most people with basic tools. The blower motor is located under the passenger side dashboard and is easy to access. The entire job can typically be completed in 30-45 minutes.
Are there any recalls for the E350 blower motor?
No, there are no specific recalls from the NHTSA for the HVAC blower motor on the 2006-2016 Mercedes-Benz E350. Recalls for blower motor wiring have been issued for other Mercedes models like the Sprinter van, but not the E-Class.
Should I replace the blower motor resistor at the same time?
Yes, it is highly recommended. The resistor and motor work together, and the failure of one can cause stress on the other. Replacing both at the same time is a smart investment to ensure the longevity of the repair.
What tools are needed for the replacement?
For both generations, you will need basic tools. The most important tool is a T20 or T25 Torx driver or socket. A small ratchet can also be helpful for accessing screws on the W211 model.
Helpful Videos
Technical Specifications
The OEM part number for this component can vary based on your vehicle's specific year and options. It is critical to verify fitment with your VIN before ordering. The assembly is located in the passenger footwell. The W211 chassis uses T20 Torx screws for mounting, while the W212 chassis uses a screwless twist-lock mechanism.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
