Chevrolet S10 (1998-2004) Engine Oil Pressure Switch & Sender Guide
Learn how to diagnose and fix the common oil pressure gauge and leaking sensor issues on your S10 truck.
- An erratic or zeroed-out oil pressure gauge is the most common sign of a bad switch, not necessarily a bad engine.
- Always check for oil leaks around the switch, as the plastic housing is a known failure point.
- Replacement on the 4.3L V6 is significantly more difficult than on the 2.2L I4 due to the switch's location.
- Using a quality aftermarket part like Standard Ignition is recommended to avoid repeating the difficult installation.
Is Your S10 Oil Pressure Gauge Acting Crazy?
One of the most common issues for a 1998-2004 Chevrolet S10 is an oil pressure gauge that gives false readings. Owners frequently report the gauge needle dropping to zero, pegging at maximum, or bouncing around erratically. While alarming, this is often caused by a faulty oil pressure sending unit, not an actual problem with your engine's oil pressure. Another clear sign of failure is a visible oil leak from the switch itself, which can make a mess in the engine bay.
🎬 Watch: 7 common symptoms of a bad oil pressure sensorChoosing a New Aftermarket Oil Pressure Switch
When your original switch fails, you have a choice between OEM and aftermarket parts. For an older truck like the S10, a quality aftermarket part offers a balance of reliability and value. Brands like Standard Ignition (Standard Motor Products) are a well-regarded choice in the aftermarket world. They are known for producing parts that meet or exceed original specifications, making them a dependable option compared to cheaper, unbranded alternatives. Given the installation difficulty on some S10 engines, choosing a quality part from the start can save you from having to do the job a second time.
A Note on the 4.3L V6 Engine
Replacing the oil pressure switch on the 4.3L V6 is known to be a difficult job due to its location. The switch is tucked behind the distributor near the firewall, making it very hard to reach. Many mechanics and DIYers need a special oil pressure switch socket, a universal swivel joint, and multiple extensions to access it. Be prepared for a challenge.
🎬 See this walkthrough for replacing the sensor on your S10Estimated Costs for Replacement
The cost can vary depending on your engine and whether you do the work yourself. The part itself is affordable, but professional labor can add up, especially for the 4.3L V6.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch (Standard Ignition) | $62 - $66 |
| New OEM (ACDelco) Switch | $70 - $95 |
| Shop Labor | $100 - $250 |
| Total Professional Replacement | $162 - $316 |
Frequently Asked Questions
Where is the oil pressure switch located on my S10?
Location depends on your engine. On the 4.3L V6, it is notoriously located on top of the engine block, just to the driver's side of the distributor, near the firewall. On the 2.2L 4-cylinder, it is on the driver's side of the engine block near the oil filter, making it much easier to access.

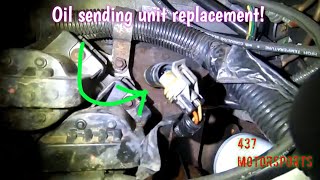

🎬 Watch: How to replace the sending unit on 2.2L enginesDo I need special tools for the replacement?
For the 2.2L engine, standard wrenches may work. For the 4.3L V6, a special oil pressure switch socket (which is a deep socket with a cutout for the wire) is highly recommended. You will also likely need a ratchet with various extensions and a swivel joint to reach the switch.
Is my engine really failing if the gauge reads zero?
Not necessarily. On these trucks, the sender is the most likely culprit for a zero reading, especially if the engine sounds normal (no knocking or ticking). A quick way to check is to see if the gauge moves at all when you turn the key to the 'on' position. However, you should always treat a zero oil pressure reading as a serious issue until you can confirm it's just a bad switch. A flickering or steady oil light combined with engine noise is a sign of a true emergency that requires you to stop the engine immediately.
What are the different types of switches for the S10?
Some S10 models use a simple one-wire switch that only operates the warning light, while most use a three-prong sending unit that drives the gauge and also connects to the fuel pump relay. It is crucial to order the correct part for your specific year and engine to ensure proper function. The Standard Ignition PS237 is a common part number for the 4.3L V6 sender.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12562267 12573107 12621234
Connector: 3-prong. Thread Size: 1/4-18 NPT. Common Aftermarket Part Number (4.3L): Standard Ignition PS237.
