Ford Expedition (2006-2017) Engine Intake Manifold Gasket Set: A Complete Guide
Seeing coolant leaks or hearing a strange engine hiss? Your Expedition's intake manifold gaskets could be the problem.
- A coolant leak at the front passenger side of the engine is a classic sign of intake manifold gasket failure on the 5.4L V8.
- Check Engine Light codes P0171 and P0174 are strong indicators of a vacuum leak, which is often caused by these gaskets.
- Always inspect the plastic intake manifold for cracks or warping when replacing the gaskets; if damaged, the entire manifold must be replaced.
- Using a high-quality aftermarket gasket set from a brand like Victor Reinz or Fel-Pro is recommended for a durable, long-lasting repair.
Is Your Expedition's Intake Manifold Gasket Failing?
The intake manifold on the 2006-2017 Ford Expedition, typically the 5.4L 3V Triton V8, uses a plastic intake manifold with integrated gaskets. Over time, the constant heating and cooling cycles can cause the plastic to warp or crack, and the gaskets to become hard and brittle. This leads to two main types of failures: coolant leaks and vacuum leaks.
Common Failure Point
A very common issue on these engines is a coolant leak from the front passenger side of the intake manifold. The design has a wide space between two mounting bolts, which can lead to poor sealing pressure on the coolant crossover passage over time. You might see coolant pooling in the valley of the engine below the manifold or notice steam coming from under the hood.
Symptoms of a Bad Gasket Set
- Coolant Leaks: You may find puddles of green, yellow, or orange coolant under your vehicle. Often, the leak starts small and drips onto hot engine parts, burning off before it hits the ground, so a sweet smell and a slowly dropping coolant level are early clues.
- Engine Overheating: A significant coolant leak will cause the engine to overheat, which can lead to severe engine damage if not addressed.
- Rough Idle & Misfires: A vacuum leak from a bad gasket lets unmetered air into the engine, causing a lean air/fuel mixture. This can result in a rough, shaky idle, engine misfires, and a general feeling of poor performance.
- Check Engine Light: A vacuum leak will almost always trigger the Check Engine Light with lean codes like P0171 and P0174.
- Hissing Sounds: You might hear a distinct hissing or whistling sound from the engine bay, which is the sound of air being sucked through a break in the gasket.
Choosing the Right Aftermarket Gasket Set
When replacing the gaskets, you have a few options. Since the original plastic manifolds can be a source of repeat failures, many owners and mechanics opt for an improved aftermarket design.
| Brand Tier | Brands | Typical Price Range | Notes |
|---|---|---|---|
| Premium / OEM-Equivalent | Victor Reinz, Fel-Pro | $70 - $150 | Victor Reinz is a well-regarded brand known for making gaskets that resist modern coolants and high temperatures. Fel-Pro is another top choice, often recommended in forums for its reliability. Some Fel-Pro sets feature steel-core gaskets for improved durability over the original plastic design. |

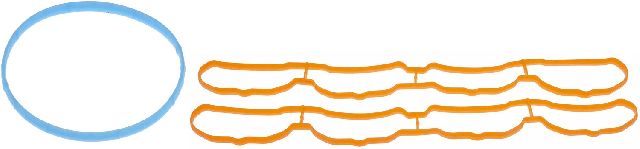

| Mid-Tier / Problem-Solver | Dorman | $60 - $120 | Dorman is known for re-engineering OEM parts to fix common flaws. While some forum users have had success with Dorman's full intake manifold replacements, others have questioned the long-term durability of their included gaskets. If your original manifold is cracked, a Dorman replacement kit is a common solution. |

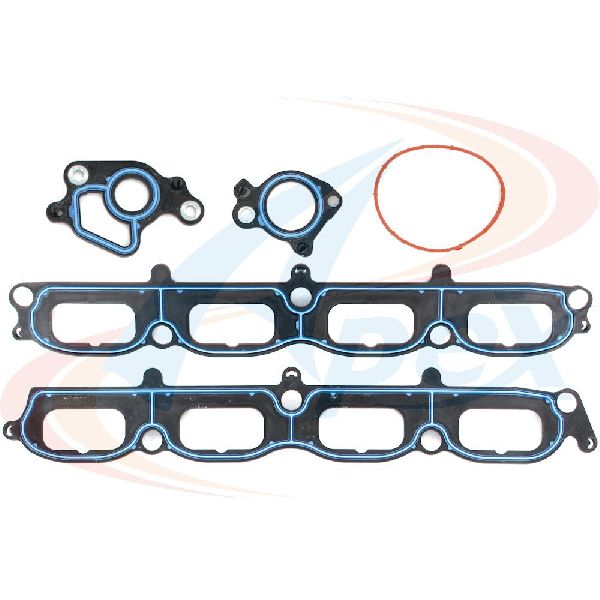

| Economy | Apex | $58 - $80 | This is a budget-friendly option. While it will get the job done, it may not feature the same advanced materials or design improvements as the premium brands. For a critical and labor-intensive job like this, investing in a higher-quality gasket is often recommended. |
Pro Tip: Inspect the Manifold Itself
While the intake manifold is off, carefully inspect it for any cracks, especially around the coolant passages and bolt holes. Also, check the plastic mating surfaces with a straight edge to see if they have warped. If you find any damage or warping, it is highly recommended to replace the entire intake manifold assembly, not just the gaskets. A new gasket cannot seal a warped or cracked surface.
Frequently Asked Questions
Can I reuse my old intake manifold gaskets?
No. Intake manifold gaskets are a one-time-use part. They are designed to crush and deform to create a seal. Once they have been compressed and exposed to heat cycles, they will not seal properly a second time. Always use a new gasket set for this repair.
Do I need to use RTV sealant with the new gaskets?
Most modern gaskets are designed to be installed dry. However, it is standard practice to apply a small dab of RTV silicone sealant at the corners where the cylinder heads meet the engine block. Always follow the specific instructions that come with your new gasket set.
Should I replace the intake manifold bolts?
It is good practice to replace the bolts, as they can stretch when torqued. At a minimum, you must clean the old bolts thoroughly and use a torque wrench to tighten them in the correct, specified sequence. Failure to tighten them properly can cause the new gasket to fail.
Are there any recalls for this issue?
There are no specific recalls from Ford or the NHTSA for failing intake manifold gaskets on the 2006-2017 Expedition. The issue is considered a common failure due to age and materials, but not a safety recall.
Technical Specifications
OEM Part Numbers: 3L3Z-9439-AA
This gasket set is designed for the Ford 5.4L 3V V8 engine. The set typically includes two main intake gaskets and sometimes smaller seals for components like the throttle body. The original design is a plastic carrier with molded rubber seals.
