Hyundai Azera Brake Light Switch Guide for 2006-2017 Models
Fixing brake light failures, ESC warnings, and shifting issues on your Azera often starts with this simple part.
- Check for open recalls on the NHTSA website using your VIN before purchasing a part.
- A bad brake light switch is the most common cause of the ESC light turning on and the shifter being stuck in Park.
- This is a very simple and inexpensive DIY repair that most owners can complete in under 30 minutes.
- Driving with a faulty brake light switch is illegal and extremely dangerous; the repair should not be delayed.
Is Your Azera Showing These Signs?
A failing brake light switch on the 2006-2017 Azera causes very specific and often confusing problems. Because the switch talks to multiple systems, its failure can look like a major electrical issue, but it's often a simple fix. Common symptoms include:
- Brake lights don't work at all, or they stay on constantly.
- The Electronic Stability Control (ESC) warning light is on.
- You cannot shift the transmission out of Park.
- Cruise control won't turn on or shuts off by itself.
- The engine won't start if you have a push-button ignition.
IMPORTANT: Check for Recalls First
Hyundai issued major safety recalls for the brake light switch on many vehicles, including the Azera (model years 2006-2011 were specifically named in recalls). These recalls, including NHTSA Campaign 09V280000 and Hyundai Campaign 110, were created because the original factory switch was known to fail, causing the exact problems listed above. Before buying a part, enter your vehicle's VIN on the NHTSA website to see if it has an open recall. A dealer must perform the replacement for free if your car is eligible.
Choosing the Right Aftermarket Brake Light Switch
If your Azera is not covered by the recall or it has already been performed, a new aftermarket switch is an excellent and affordable solution. The original OEM part was faulty, so a quality aftermarket replacement can be considered an upgrade. Aftermarket brands have had years to refine the design to be more durable than the original.
When shopping, you'll find several brands available. They can generally be grouped into tiers:
- Premium Aftermarket (e.g., Beck Arnley, Standard Ignition): These brands are well-respected in the industry for producing parts that meet or exceed original specifications. They focus on quality materials and testing, making them a reliable choice for long-term performance.
- Quality Direct Replacement (e.g., Dorman, Holstein): Brands like Dorman specialize in providing direct-fit replacements that solve for the original part's known weaknesses. They offer a balance of quality and value, and are a very popular choice for DIY repairs.
- Value Options (e.g., True Tech, Facet, Vemo): These brands provide a functional replacement at a lower price point. For a simple part like a brake light switch, these can be a cost-effective way to solve the problem, especially considering the original part's high failure rate.
Pro Tip: While you're replacing the switch, inspect the small plastic or rubber "stopper pad" on the brake pedal arm where the switch makes contact. These stoppers can become brittle and break, causing the brake lights to stay on constantly. 🎬 Watch this easy fix for brake pedal sensor issues. It's a very inexpensive part to replace at the same time.
Understanding the Costs
Replacing the brake light switch is an inexpensive repair, whether you do it yourself or take it to a shop.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $11 - $40 |
| Shop Labor | $50 - $95 |
| DIY Total | $11 - $40 |
| Shop Total | $65 - $135 |
Frequently Asked Questions
Can I replace the Azera brake light switch myself?
Yes, this is a very DIY-friendly job. The switch is located above the brake pedal. The process involves disconnecting the electrical plug, loosening two nuts to remove the old switch, and then installing and adjusting the new one. No special tools are required, and it can typically be done in under 30 minutes.
🎬 See this live demo of the brake switch replacement.Why did my ESC light come on because of a brake light switch?
The Electronic Stability Control (ESC) system needs to know when you are braking to work correctly. It uses the signal from the brake light switch to make decisions. If the switch fails and sends a bad signal (or no signal), the computer gets confused and triggers the ESC warning light as a safety precaution.
🎬 Watch: How to replace the switch and fix ESC lights.What happens if I don't replace a bad brake light switch?
You should not drive with a faulty brake light switch. If your brake lights don't work, other drivers won't know you are stopping, which is extremely dangerous and can easily cause a rear-end collision. If the switch is causing other issues like being unable to shift from park, your vehicle will be stranded.
Is an aftermarket switch as good as the Hyundai original?
In this specific case, a quality aftermarket switch is often considered just as good, if not better, than the original. The original part was subject to multiple large-scale recalls for being defective. Aftermarket manufacturers have had the opportunity to produce improved versions that are more reliable.
Helpful Videos

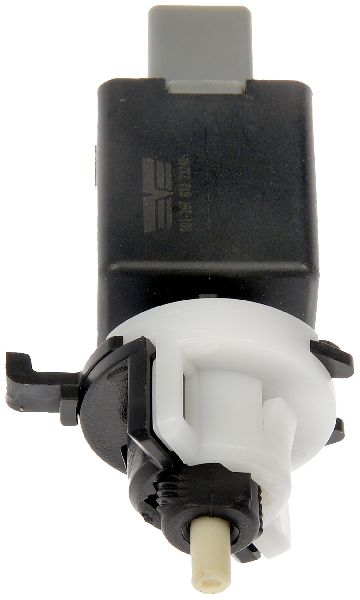

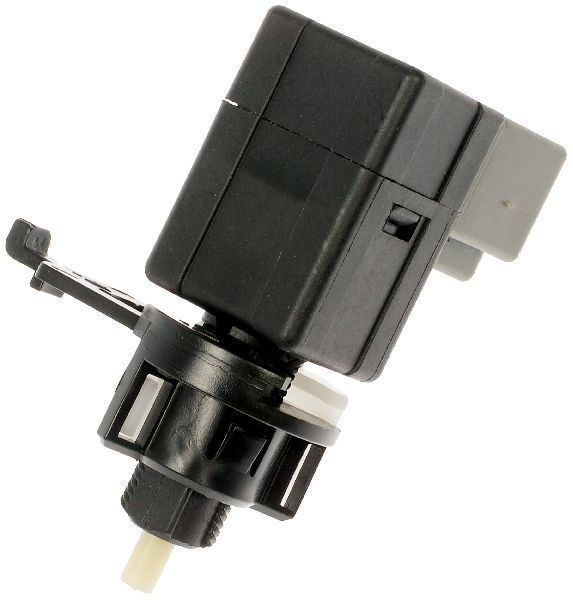

Technical Specifications
OEM Part Numbers: 93810-3K000 93810-3S000 93810-4DR0AQQH
4-pin, plunger-activated mechanical switch located on the brake pedal bracket.
