Mazda 5 Engine Coolant Thermostat Guide (2006-2017)
Everything a Mazda 5 owner needs to know about diagnosing and replacing a faulty engine thermostat.
- A check engine light with code P0128 is the most common sign of a bad thermostat in a Mazda 5.
- The thermostat is sold as an assembly with the housing; it's best to replace the entire unit.
- For a daily driver, a standard temperature thermostat from a reputable aftermarket brand like Gates is a reliable and cost-effective choice.
- A stuck-closed thermostat can cause critical engine damage from overheating; pull over immediately if this occurs.
Symptoms of a Failing Thermostat in a Mazda 5
A thermostat is a simple part, but it can cause noticeable problems when it fails. Most commonly, the thermostat on the Mazda 5 will fail by getting stuck open. Less often, it can get stuck closed.
- Check Engine Light: The most common sign is a check engine light with diagnostic trouble code P0128 or P0126. This code specifically means the engine coolant temperature is below the thermostat's regulating temperature, indicating the engine is not warming up as expected.
- Engine Slow to Warm Up: If your thermostat is stuck open, your engine will take much longer than usual to reach its normal operating temperature, especially in cold weather. The blue temperature light on the dash may stay on for an extended period.
- Temperature Gauge Fluctuates: You might see the temperature gauge drop while driving at highway speeds and then climb back up in stop-and-go traffic. This happens because the constant airflow on the highway over-cools the engine through the stuck-open thermostat.
- Poor Heater Performance: Your cabin heater uses heat from the engine coolant. If the engine isn't getting hot enough, the air blowing from your vents will be lukewarm at best.
- Engine Overheating: In the less common case of a thermostat stuck closed, coolant cannot get to the radiator to be cooled. This will cause the engine to overheat quickly, indicated by the temperature gauge rising into the red and a blinking or solid high-temperature warning light. This is a serious condition that requires you to stop driving immediately to prevent engine damage.
P0128 Code & Technical Service Bulletins (TSBs)
For some earlier Mazda 3 and Mazda 5 models, Mazda issued a service bulletin noting that the P0128 code could sometimes be caused by an improper calibration of the engine computer (PCM). While replacing the thermostat is the most common fix, in some cases, a PCM software update may be required. There are no open recalls for the thermostat on the 2006-2017 Mazda 5.
Choosing a New Aftermarket Thermostat
For the 2006-2017 Mazda 5, the thermostat is typically sold as an assembly with the plastic housing. Given the age of the vehicle, the plastic housing can become brittle, so replacing the entire unit is a good idea. When it comes to aftermarket parts, quality can vary, but many reputable options exist.
Brand Quality Tiers
- Top Tier (OEM Equivalents): Brands like Gates are well-respected in the aftermarket and are known for producing parts that meet or exceed original equipment specifications. They are a reliable choice for a direct replacement.

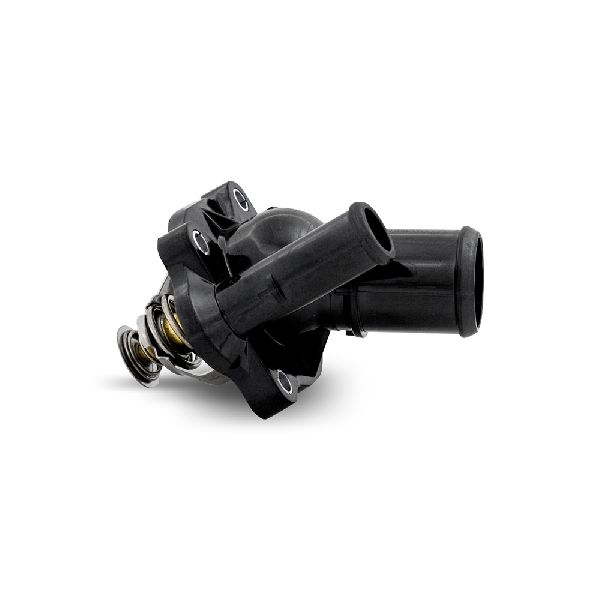

- Performance-Oriented: Mishimoto offers "racing" thermostats that open at a lower temperature. For a daily-driven Mazda 5, this is generally unnecessary and can sometimes prevent the engine from reaching its most efficient operating temperature, especially in colder climates. It's best to stick with a standard temperature thermostat unless your vehicle is heavily modified for racing.

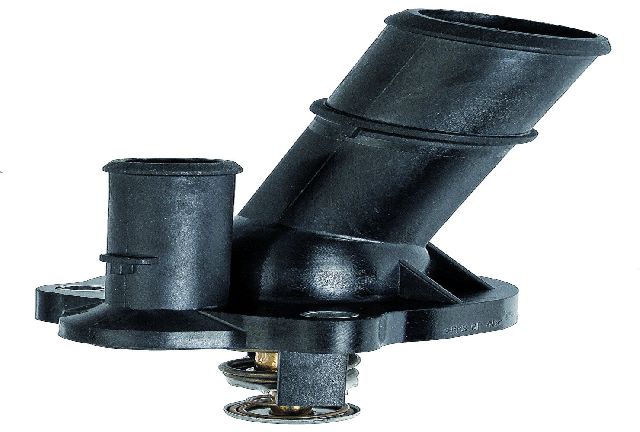

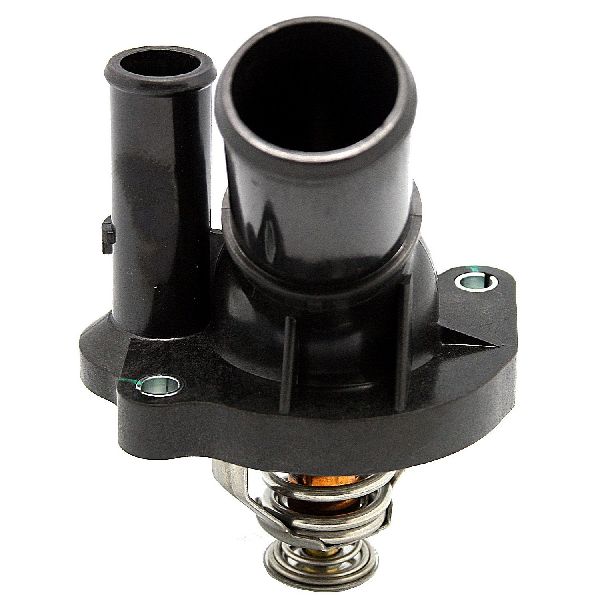

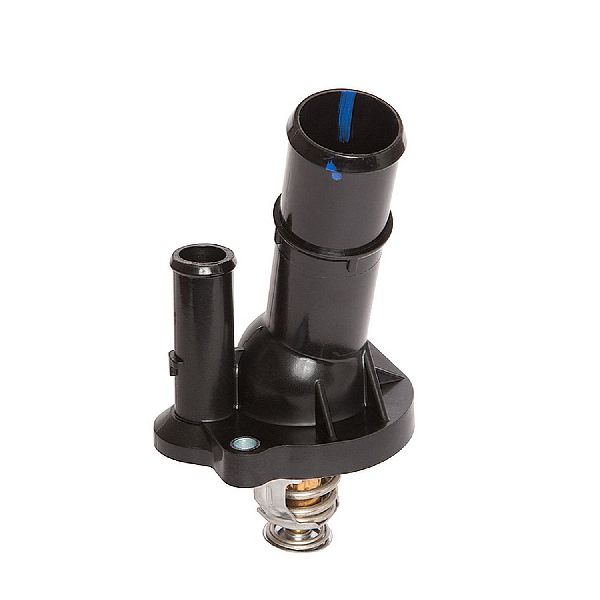

- Standard Aftermarket: Brands like Calorstat and Facet offer cost-effective solutions that are widely available. These are generally considered standard replacement quality and are a suitable choice for most owners looking for a balance of price and reliability.
OEM vs. Aftermarket
While OEM thermostats are always a safe bet, quality aftermarket brands like Gates often provide similar performance and reliability for less money. For a vehicle like the 2006-2017 Mazda 5, a reputable aftermarket thermostat assembly is a perfectly acceptable and economical repair solution. The key is to avoid unbranded, low-quality parts that may fail prematurely.
Typical Replacement Costs
The cost to replace the thermostat can vary depending on whether you do it yourself or take it to a shop. The part itself is relatively inexpensive.
| Item | Estimated Cost |
|---|---|
| New OEM Thermostat Assembly | $50 - $95 |
| New Aftermarket Thermostat Assembly | $40 - $92 |
| Shop Labor | $180 - $270 |
| Total Professional Replacement | $220 - $365 |
Frequently Asked Questions (FAQ)
Is it difficult to replace the thermostat on a 2006-2017 Mazda 5 myself?

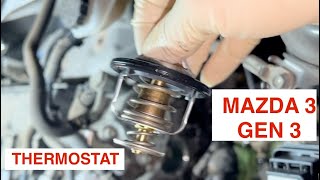

For a DIYer with some experience, the job is manageable. It typically takes 1-3 hours. Access can be tight, and you'll need to drain some coolant. The thermostat housing is held on by three bolts. 🎬 Watch this step-by-step walkthrough of the thermostat housing replacement. The most difficult part is often removing the spring-style hose clamps without a special tool.
Do I need to replace the whole housing or just the thermostat?
For this Mazda 5 generation, the thermostat and housing are sold as a single assembly for most replacements. Given that the original housing is plastic and can become brittle with age and heat cycles, it is highly recommended to replace the entire unit to prevent future leaks.
What type of coolant should I use for my Mazda 5?
Always use the coolant type specified in your owner's manual. Most of these vehicles require a P-OAT (Phosphate-based Organic Acid Technology) coolant, often labeled as FL-22. Using the wrong type of coolant can cause corrosion and damage to your cooling system.
My check engine light is on for code P0128. Is it definitely the thermostat?
While a faulty thermostat is the most common cause of a P0128 code, it's not the only one. Other potential causes include a low coolant level, a faulty coolant temperature sensor, 🎬 See how to locate and replace the temperature sensor. or a wiring issue. However, if you are also experiencing symptoms like slow warm-up and poor heat, the thermostat is the most likely culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: L33615170 LF7015170 LF941517Z
The thermostat for the 2006-2017 Mazda 5 is typically sold as a complete assembly including the plastic water outlet housing and integrated gasket. The standard opening temperature is approximately 82-83°C (180°F). The assembly connects to the upper radiator hose and a smaller bypass hose.
