Guide to the Engine Oil Pressure Switch on a 2006-2017 Mazda 5
Understand the symptoms of a failing oil pressure switch and learn how to choose the right aftermarket replacement for your Mazda 5.
- Never ignore a flickering or illuminated oil pressure light; always check the oil level first.
- A faulty switch is a common cause for a false warning, but the risk of actual low oil pressure is too high to ignore.
- Replacement is a simple, low-cost DIY job for most owners, and can be done during an oil change.
- Choosing a quality aftermarket brand like Hella, Beck Arnley, or Standard Ignition is a reliable, cost-effective alternative to expensive OEM parts.
Is Your Mazda 5 Oil Pressure Light On?
A flickering or constantly lit oil pressure warning light on your 2006-2017 Mazda 5 is a serious signal that demands immediate attention. While the cause could be as simple as a faulty oil pressure switch, it could also indicate a critical lack of oil pressure that can destroy your engine. The first step is always to check your oil level with the dipstick. If the level is correct, the problem may lie with the switch itself.
Warning: Do Not Ignore the Oil Pressure Light
Never continue driving if the red oil pressure light is on. Even if it's just a faulty switch, you are betting your engine that it isn't a more serious problem like a failing oil pump. Turn off the engine immediately and diagnose the problem.
🎬 Watch this video to understand why you shouldn't ignore this Mazda problem.Common Symptoms of a Failing Oil Pressure Switch
- Oil Pressure Light Flickering: The light may flicker, especially at idle or during braking and acceleration, when the switch is beginning to fail.
- Warning Light On with Full Oil: The most common sign is the oil pressure light staying on even when you've confirmed the engine oil level is correct. 🎬 Learn why your oil light flashes even when the oil is full.
- Oil Leak from the Switch: The switch itself can develop a leak. You may notice oil residue on the sensor or drips underneath the vehicle near its location.
- Incorrect Gauge Behavior: While the Mazda 5 uses a warning light, not a gauge, a faulty switch can cause the light to behave erratically, turning on and off randomly.
Choosing the Right Aftermarket Replacement
For a simple part like an oil pressure switch, an aftermarket replacement is often a cost-effective and reliable choice. The key is to select a reputable brand. OEM switches for a Mazda can be surprisingly expensive, while aftermarket options provide similar performance for a fraction of the price.
Aftermarket Brand Tiers for Your Mazda 5
When shopping for a replacement, consider these brands known for their quality in automotive sensors:
- Premium Aftermarket (Often OE Equivalent): Brands like Hella, Beck Arnley, and Standard Ignition (SMP) have strong reputations. Beck Arnley is known for sourcing parts from original equipment manufacturers, meaning you might get an OEM-quality part in their box. Hella is a German company with over a century of experience in automotive electronics and is known for high-quality components. Standard Motor Products is a trusted name among professional technicians. 🎬 Take a closer look at the quality of Standard oil pressure switches.
- Quality Aftermarket: Walker Products is another well-regarded brand that balances affordability with performance, often recommended by mechanics.
- Economy Options: Brands like Global Parts and True Tech fall into the budget-friendly category. While they offer significant savings, their long-term durability may not match that of the premium brands. For a non-critical sensor, this might be acceptable, but for a warning system as important as oil pressure, investing a few extra dollars in a more reputable brand is a wise decision.
Pro Tip: Check the Connector
Before ordering, visually inspect the electrical connector on your existing switch. While most are standard, slight variations can exist. Ensure the new part has the same pin configuration and connector shape. The switch for the Mazda 5 is typically a 1-pin connector.
Cost Comparison for Mazda 5 Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM | $60 - $125 |
| New Aftermarket | $6.73 - $25.46 |
| Shop Labor | $73 - $107 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 2006-2017 Mazda 5?
The oil pressure switch is typically located on the engine block, often near the oil filter housing. You will need to look for a small sensor with a single electrical wire attached to it. Its accessibility can vary slightly depending on the engine year.
Is it difficult to replace the oil pressure switch myself?
For most DIY mechanics, this is a relatively easy job. It usually involves unplugging the electrical connector, using a deep socket and ratchet to unscrew the old switch, and then installing the new one. It's a good idea to perform this task during an oil change since some oil may leak out when the switch is removed. The estimated time is under one hour.
Are there any recalls or TSBs for the Mazda 5 oil pressure switch?
Searches did not reveal any specific recalls for the engine oil pressure switch on the 2006-2017 Mazda 5. However, Mazda has issued Technical Service Bulletins (TSBs) for other models with similar engines (like the Skyactiv) for issues where oil contamination causes problems with oil pressure regulation, sometimes triggering a P0524 code. While not directly for the Mazda 5, it highlights the importance of regular oil changes with quality oil and filters.
What does the P0524 trouble code mean?
P0524 is a diagnostic trouble code (DTC) for "Engine Oil Pressure Too Low." This code is logged by the vehicle's computer when it detects that the oil pressure has dropped below the safe minimum level. While a faulty switch can trigger this, it should always be treated as a potentially serious issue requiring immediate diagnosis.
Helpful Videos
Technical Specifications

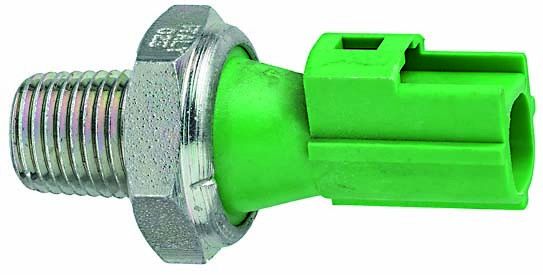

OEM Part Numbers: PX9R-18-541 PY8V-18-541B SH01-18-541 PE0118501B
Connector Type: 1-Pin Male Connector. Thread sealant is often pre-applied on new switches.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
