A Guide to the Fuel Pump Driver Module for the 2006-2017 Volkswagen Passat
Solve common stalling, no-start, or dead battery problems by understanding this critical fuel system component.
- Check for the VW safety recall (20AE / 17V509) first, as you may be eligible for a free replacement.
- A failing module is a serious safety risk because it can cause the engine to stall in traffic.
- This is a very easy part to replace yourself, located under the rear passenger seat.
- Always inspect the wiring connector for melting or damage when replacing the module.
Is There a Recall on the Passat Fuel Pump Driver Module?
Yes, there is a significant safety recall for this part. Volkswagen issued recall 20AE (NHTSA Campaign 17V509) for certain 2006-2010 Volkswagen Passat and Passat Wagon models. The recall addresses a defect where the module can fail, causing a sudden stall while driving, or it can fail in the 'on' position, causing the fuel pump to run constantly and drain the battery. The official dealer fix involves replacing the module with an updated part and relocating it to protect it from heat and stress, which are the primary causes of failure. Before purchasing a new part, check with a VW dealer to see if your vehicle is covered under this recall.
Symptoms of a Failing Fuel Pump Driver Module
A bad fuel pump driver module can cause problems that seem random at first, but they often share common themes. The most severe issue is the engine stalling without warning while you are driving. You might also find your car won't start at all, or it takes many cranks to finally turn over. Some owners experience a dead battery overnight because the faulty module keeps the fuel pump running after the car is turned off. Other signs include engine hesitation when you accelerate, stumbling, and a general loss of power. 🎬 Watch: Diagnosing a fuel pump circuit low fault code. When the module fails, it often gets extremely hot to the touch and may even have a melted spot on its plastic casing.
Choosing the Right Aftermarket Module
When your Passat is out of the recall window or if you choose to do the repair yourself, you have several aftermarket brands to consider. They generally fall into different quality tiers.
Tier 1: OEM-Equivalent Brands

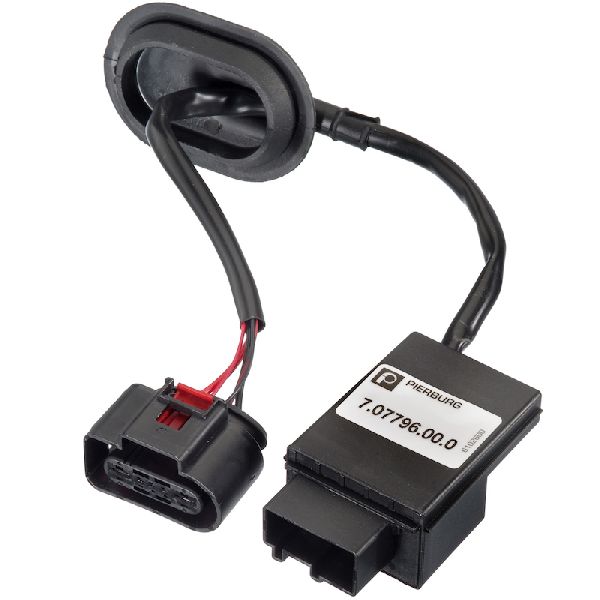

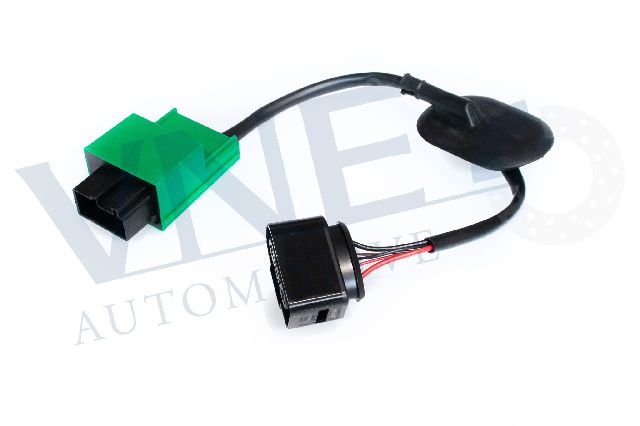

Hella and VNE are strong choices. Hella is a well-known original equipment manufacturer for many German car brands, so their quality is trusted. Some retailers list VNE as an "OE Supplier," which suggests their parts are built to a high standard. Choosing one of these brands is the closest you can get to buying the part from a VW dealer.
Tier 2: Reputable Aftermarket Brands

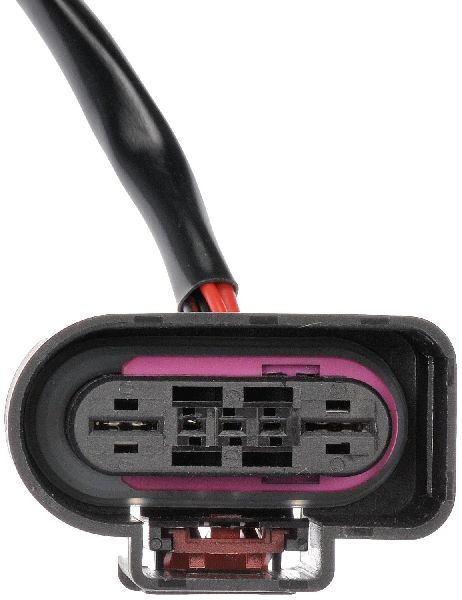

Standard Ignition (SMP) and Dorman are established brands with a solid reputation. Dorman, in particular, is known for re-engineering parts to fix the original design flaws. While quality is generally reliable, they are a step below OEM-level suppliers but offer a good balance of price and performance.
Tier 3: Value Brands
Brands listed simply as Replacement are budget-friendly options. While they are the most affordable, their long-term durability and performance may not match the higher-tiered brands. These are best if you are on a tight budget, but for a critical part like this, investing a little more in a known brand is often worth it.
Pro Tip: Before installing a new module, carefully inspect the wiring connector. The module failure can create intense heat, which can melt the connector or damage the pins inside. Plugging a new module into a damaged connector will cause the new part to fail quickly. If you see any signs of melting or corrosion, the connector pigtail should be replaced at the same time.
Cost of Replacing a VW Passat Fuel Pump Driver Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Module | $128 - $256 |
| Shop Labor | $100 - $250 |
| Total Professional Repair | $228 - $506 |
Cost estimates are for the part and labor only and do not include taxes, shop fees, or diagnostic charges.
Frequently Asked Questions (FAQ)
Where is the fuel pump driver module located on a 2006-2017 Passat?
The module is located under the rear seat cushion, on the passenger's side of the vehicle. It is clipped directly to the black plastic access cover for the in-tank fuel pump.
Can I replace this module myself?
Yes, this is a very DIY-friendly repair. The replacement involves removing the rear seat bottom, pulling back the carpet, and swapping the module. No special tools are required, and the job can typically be done in under an hour. The most difficult part is usually just unclipping the rear seat cushion.
🎬 See this step-by-step DIY replacement guide for the 2.0t engine.What causes the fuel pump driver module to fail?
The main cause of failure is overheating. The module's location from the factory didn't provide enough cooling, which is why the official VW recall includes relocating the new part. Another cause can be a worn-out fuel pump that draws too much electrical current, overloading and burning out the module.
🎬 Watch: A mechanic explains why these specific VW modules fail.Do I need to program a new fuel pump driver module?
No, for this specific application on the Passat, aftermarket modules are direct-fit, plug-and-play replacements that do not require any programming or special calibration.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1K0906093D 1K0906093E 1K0906093F 1K0906093G 1K0906093H 3C0906093A
The module is located under the rear passenger seat and controls the in-tank low-pressure fuel pump. It uses a pulse-width modulated (PWM) signal to vary pump speed.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
