Subaru Legacy 2006-2019: A Guide to Alignment Caster & Camber Kits
Correcting alignment issues and preventing uneven tire wear on your Legacy is possible with the right parts.
- These kits are for solving problems, not routine maintenance. You need one if you've lowered your car or if a shop can't get it into alignment with stock parts.
- Many Legacy models lack rear camber adjustment from the factory, making a rear kit a common fix for tire wear.
- Whiteline is a premium, performance-focused brand, while Mevotech is a more budget-oriented option.
- A professional wheel alignment is absolutely required immediately after installing any alignment kit.
Is Your Legacy Showing Signs of Alignment Trouble?
The most common reason Legacy owners seek out alignment kits is to fix problems that a standard alignment can't. Your car's suspension is designed to have its wheels pointing in very specific directions. When these angles are off, you'll notice problems. The most obvious sign is your tires wearing out unevenly on the inner or outer edges. You might also feel the car pulling to one side while driving down a straight road or notice that the steering wheel isn't centered. In some cases, particularly after hitting a large pothole, a standard alignment might not be enough to bring the car back into Subaru's specifications, which is when a caster/camber kit becomes necessary.
Why You Might Need an Alignment Kit
You generally only need an alignment caster/camber kit in two situations:
- Aftermarket Modifications: If you have installed lowering springs, coilovers, or a lift kit, the factory alignment adjustments are often not enough to bring the camber and caster back into the correct specification. This is the most common reason for needing a kit. 🎬 Learn how to adjust camber on a lifted Subaru.
- Correcting for Wear or Damage: On an older vehicle, suspension components can wear out, or minor damage can occur over time, making it impossible for a mechanic to perform a proper alignment. Many Legacy models, particularly in the rear, have no factory camber adjustment, so a kit is the only way to fix it.
Choosing the Right Aftermarket Kit for Your Legacy
Unlike a factory part you can get from a dealer, these kits are aftermarket solutions. The quality and purpose can vary significantly between brands. For the 2006-2019 Legacy, you'll mainly find options from brands like Mevotech and Whiteline.
Brand Tiers: Performance vs. Standard
Whiteline: This is a performance-oriented brand. Whiteline parts are engineered to improve handling and provide a wide range of adjustment, which is ideal for lowered or track-focused cars. They offer high-quality adjustable control arms, bushings, and strut mounts that are known for their durability and ability to solve complex alignment issues. If you have modified your Legacy's suspension or want the best possible handling, Whiteline is considered a top-tier choice.
🎬 Watch this Whiteline rear control arm installation and results.Mevotech: Mevotech offers parts that are often priced lower and are more like a standard replacement. The brand has several lines, including their "Supreme" parts for daily drivers. However, some user experiences suggest that the lower-end Mevotech parts may not have the same durability as more premium brands, with some owners needing to replace them sooner. For a simple correction on a stock vehicle, a Mevotech camber bolt kit might be a cost-effective solution, but for significant adjustments or performance applications, it may be worth investing in a more robust option.
Pro Tip: Many alignment issues on the Legacy, especially on the 4th generation (2005-2009), stem from the rear suspension, which has no factory camber adjustment. Often, a simple rear camber bolt kit or an adjustable bushing kit is all that is needed to solve uneven tire wear.
Cost of Alignment Kits for 2006-2019 Subaru Legacy
| Part Type | Typical Cost Range |
|---|---|
| Aftermarket Alignment Kit (Simple Camber Bolts) | $22 - $50 |
| Aftermarket Alignment Kit (Adjustable Arms/Bushings) | $90 - $205+ |
| Shop Labor for Installation & Alignment | $200 - $400 |
Note: Prices are estimates and can vary based on brand, location, and the specific components needed. Labor costs include the mandatory wheel alignment after installation.
Frequently Asked Questions
Do I need a front and a rear kit?
Not always. It depends on your vehicle's specific alignment readings. It's common for a Legacy to only need a rear kit to correct camber, as the front has some adjustment from the factory. A professional alignment check will tell you exactly what is needed.
What's the difference between a camber bolt and an adjustable control arm?
A camber bolt (or eccentric bolt) replaces a stock suspension bolt and has a cam on it that allows for a small degree of adjustment, typically up to +/- 1.75 degrees. 🎬 See how to properly install and adjust Subaru camber bolts. An adjustable control arm replaces the entire factory arm and offers a much wider range of adjustment, which is better for significantly lowered cars or for performance tuning.
Will installing an alignment kit void my warranty?
Installing any aftermarket part could potentially affect the warranty on related components. However, a dealer would have to prove that the aftermarket part directly caused a failure. Since these kits are often used to fix alignment, they are unlikely to cause issues when installed correctly.
Is this a DIY job?
While installing the physical parts can be done by an experienced DIY mechanic, the job is not complete without a professional wheel alignment immediately afterward. For this reason, it's often best to have the entire job done at a trusted alignment shop that is familiar with Subarus.
Are there any recalls for Legacy alignment issues?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Subaru for the 2006-2019 Legacy that require the installation of an aftermarket caster/camber kit. The need for these parts arises from vehicle modifications or wear and tear, not a factory defect.

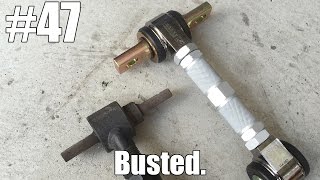

Helpful Videos
Technical Specifications
Adjustment Range: Varies by kit. Camber bolts typically offer +/- 1.75 degrees. Adjustable arms offer a wider range. Common Bolt Size: 14mm.
