Ford Fusion Engine Oil Pressure Switch: A Complete Guide (2006-2020)
Understanding the signs of a failing oil pressure switch and how to choose the right replacement for your Fusion.
- A lit oil pressure light is a critical warning; stop the car safely and check the oil level immediately.
- For sensors, using the OEM Motorcraft brand is strongly recommended by mechanics to avoid compatibility issues.
- A common failure point is an oil leak directly from the switch, especially on 2015-2017 models per TSB 15-0183.
- Replacement is a simple DIY job for many, located near the oil filter and requiring basic tools.
Is a Failing Oil Pressure Switch a Big Deal?
Yes, it can be. The switch itself is a simple, inexpensive part, but its job is vital. If the switch fails, it can give false readings. It might tell you the oil pressure is low when it's actually fine, causing unnecessary worry. More dangerously, it could fail to warn you when the oil pressure is genuinely low. Ignoring a true low-pressure situation can lead to severe engine wear and catastrophic failure. For this reason, any oil pressure warning should be taken seriously. Stop the car as soon as it's safe and check your oil level. If the level is fine, the problem could be the switch or a more serious internal engine issue.
TSB for Oil Leaks: 2015-2017 Models
Ford issued Technical Service Bulletin (TSB) 15-0183 for some Fusions. This TSB notes that certain 2015-2017 models with 2.0L EcoBoost engines and 2017 models with 2.0L EcoBoost engines may develop an oil leak from the engine oil pressure sensor's threads. If you have one of these models and notice an oil leak near the oil filter, a faulty sensor seal could be the cause. The fix involves removing, cleaning, and resealing the sensor threads.
Choosing the Right Aftermarket Switch for Your Fusion
When shopping for a replacement oil pressure switch, you'll find several brands available. While saving money is tempting, using a low-quality sensor can lead to incorrect readings or premature failure. Based on owner feedback and mechanic recommendations, here’s a breakdown of your options.
Tier 1: OEM Quality
- Motorcraft: This is Ford's official parts brand, making it the Original Equipment (OE) part for your Fusion. For electronic sensors, sticking with Motorcraft is highly recommended by Ford specialists and owners. It guarantees perfect fitment and the same performance as the part your car was built with. While it's the most expensive option, it provides the most peace of mind.
Tier 2: Reputable Aftermarket
- Standard Ignition (True Tech): Standard is a well-known aftermarket manufacturer that has been around for a long time. They emphasize quality control and testing in their US-based facility. Their Tru-Tech line is marketed as a quality replacement that meets high standards. This brand is a solid choice if you want a reliable part without paying the premium for the Motorcraft name.
- Hella: Hella is a major German automotive parts supplier. While specific reviews for this part on a Fusion are scarce, the brand has a general reputation for producing quality components.
Tier 3: Budget Options
- Global Parts, Rostra Powertrain, True Tech: These brands fall into the budget-friendly category. Information and specific reviews for their oil pressure switches are limited. Rostra, for example, appears to specialize more in transmission components. While these parts offer significant savings, their long-term reliability and accuracy are less documented. They may be suitable for an older, higher-mileage vehicle or if budget is the primary concern, but be aware of the potential risks associated with critical engine sensors.
A Note on Counterfeit Parts
Be cautious when buying parts, especially online from marketplaces like Amazon or eBay. Forum users have reported receiving counterfeit Motorcraft parts that fail quickly. A genuine Motorcraft sensor often has distinct features, like blue plastic and a specific orifice size. Buying from a reputable auto parts source is the safest bet.
Ford Fusion Oil Pressure Switch Costs
The cost can be broken down into the part itself and the labor to install it. It's a relatively quick job for a mechanic, so labor costs are usually low.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $16 - $87 |
| New Aftermarket Part | $10 - $82 |
| Shop Labor Cost | $82 - $140 |
| Total Professional Replacement | $119 - $165 |
Frequently Asked Questions
Where is the oil pressure switch located on a Ford Fusion?

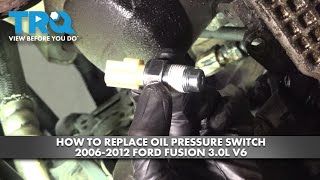

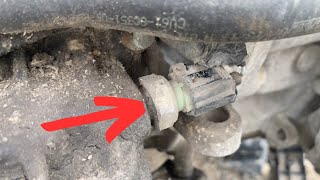

On most Ford Fusion engines, including the 2.5L, 3.0L V6, and 2.0L, the oil pressure switch 🎬 Watch: Step-by-step replacement for 2006-2012 3.0L V6 models is located on the engine block, usually right next to or just above the oil filter housing. This makes it accessible from underneath the vehicle. 🎬 See this location and replacement guide for 2013-2020 2.0L engines To get a clear view and room to work, you often need to remove the oil filter first.
Is it hard to replace the oil pressure switch myself?
For a DIYer with some experience, this is a fairly simple job. It involves safely raising the vehicle, locating the switch near the oil filter, disconnecting the electrical connector, and unscrewing the old switch. You will lose a small amount of oil, so have a drain pan ready. The most common tool needed is a 21mm or 13/16" deep socket or wrench. The new switch should have thread sealant applied before installation.
Will a bad oil pressure switch always turn on the warning light?
Not always. A failing switch can behave erratically. It might cause the oil light to flicker, stay on constantly, or not come on at all. It can also send incorrect readings to the oil pressure gauge if your Fusion has one, causing it to read zero, max out, or jump around. An oil leak from the sensor itself is another common sign of failure.
What does the code P0520 mean?
P0520 is a generic diagnostic trouble code (DTC) for "Engine Oil Pressure Sensor/Switch Circuit Malfunction." This means the vehicle's computer has detected a problem with the sensor's signal. The issue could be the sensor itself, the wiring, or an actual mechanical problem causing low or high oil pressure. This code often accompanies an illuminated Check Engine Light.
Are there any recalls for the oil pressure switch on the Ford Fusion?
No, there are no specific recalls issued by the NHTSA for the engine oil pressure switch on 2006-2020 Ford Fusion models. However, a Technical Service Bulletin (TSB) was released for potential oil leaks from the sensor on some 2015-2017 models.

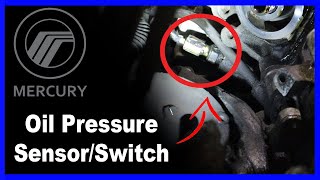

Helpful Videos
Technical Specifications
OEM Part Numbers: 6U5Z-9278-D GC3Z-9278-B OPS-2 SW-6900 SW8160 BE8Z9278A
Typically a single-terminal, screw-in switch. The connector shape can be square, round, or rectangular depending on the model year and engine. Thread size is commonly 1/4-18 inch. Always verify the part by your vehicle's VIN for an exact match.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
