Mazda MX-5 Windshield Washer Pump: A Guide for 2006-2020 Models
If your washer fluid isn't spraying, the pump is the most likely culprit—here's how to choose the right replacement.
- A silent pump is the clearest sign of failure; check the fuse first, then plan to replace the pump.
- For this part, a quality aftermarket brand like Trico is a cost-effective alternative to OEM.
- Replacement is easier on 2016+ (ND) models, with the pump accessible from the engine bay.
- On 2006-2015 (NC) models, you'll need to access the pump through the passenger-side wheel well.
Is Your MX-5's Washer Pump Failing?
A non-working windshield washer can be a safety hazard, especially in bad weather. Before you assume the pump is dead, make sure your washer fluid reservoir is full. If it is, look for these common symptoms of a failing pump:
- No Sound, No Spray: You pull the washer lever and nothing happens. You don't hear the familiar humming or buzzing sound of the pump motor running. This usually points to a dead pump or an electrical issue 🎬 Watch this guide to diagnose your washer pump and system., like a blown fuse.
- Pump Hums, But No Fluid Sprays: If you can hear the pump motor running but no fluid comes out, the pump itself might be broken internally, or you could have clogged nozzles or lines.
- Weak or Uneven Spray: The fluid barely reaches the windshield or only sprays on one side. This can mean the pump is getting weak and can't create enough pressure.
- Leaking Fluid: You notice a puddle of blue washer fluid under the front of your car. The pump body can crack, or the rubber grommet that seals it to the reservoir can dry out and leak.
Choosing a Replacement Pump: OEM vs. Aftermarket
For a part like the windshield washer pump, you don't necessarily need to buy an expensive Original Equipment (OEM) part from a Mazda dealer. High-quality aftermarket parts can offer the same performance and reliability for a lower price.
- OEM Mazda Pump: This is the exact part your MX-5 was built with. It guarantees a perfect fit, but you will pay a premium for the Mazda branding.
- Aftermarket Pumps (e.g., Trico): Brands like Trico specialize in replacement parts and offer direct-fit, OE-style pumps. For a simple component like a washer pump, a reputable aftermarket brand is a smart, cost-effective choice that performs just as well as the original. Installation is designed to be straightforward with no modifications needed.
Windshield Washer Pump Replacement Cost (2006-2020 Mazda MX-5)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $20 - $35 |
| New OEM | $30 - $50 |
| Shop Labor | $57 - $84 |
Pro Tip: Replacing the washer pump is a very manageable DIY job for most owners, which can save you the entire cost of shop labor.
🎬 See this walkthrough on how to replace a washer pump.Replacing the Pump: A Tale of Two Generations
The replacement process differs slightly between the NC and ND generations of the MX-5, mainly in where the pump is located.
For 2016-2020 (ND) MX-5 Models:
This is an extremely easy job. The washer fluid reservoir is located in the engine bay on the passenger side. The pump is simply pushed into a grommet on the tank. You can typically lift the reservoir up a few inches to access the pump, disconnect the electrical connector and hose, and pull the old pump out. The new one pushes right back in.
For 2006-2015 (NC) MX-5 Models:
Access is a bit more involved. The reservoir and pump are typically located behind the front bumper cover, ahead of the passenger-side front wheel. You will likely need to turn the wheel, remove some clips from the plastic fender liner, and peel it back to access the pump at the bottom of the reservoir. While it requires a few more steps, it is still a straightforward job that doesn't require specialized tools.
Frequently Asked Questions
Can I drive my MX-5 with a broken windshield washer pump?
Yes, but it is not recommended. A clear windshield is critical for safety. If you are caught in rain or your windshield gets dirty from road spray, you will have no way to clean it, severely limiting your visibility.
My pump is running, but no fluid comes out. Is the pump bad?

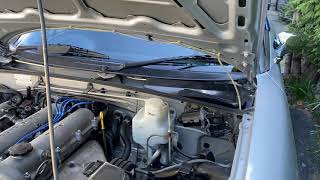

Not necessarily. First, check for clogged washer nozzles by clearing them with a small pin. 🎬 Watch this video for more tips on fixing clogged sprayers. Next, check the hoses for cracks or disconnection. If the nozzles and hoses are clear, the pump's internal impeller may have failed, and it will need to be replaced.
Do I need to drain the washer fluid to replace the pump?
It's a good idea. The pump is located at the bottom of the reservoir. When you pull it out, all the fluid will drain out. It's best to have a bucket ready to catch the old fluid before you remove the pump.
Are there any recalls for the MX-5 washer pump?
No, there are no recalls or common Technical Service Bulletins (TSBs) from Mazda for windshield washer pump failure on the 2006-2020 MX-5. Failures are typically due to normal wear and age.
Helpful Videos
Technical Specifications
OEM Part Numbers: NE51-67-482
Fits 2006-2015 Mazda MX-5 (NC). The pump is a small electric motor that press-fits into the washer fluid reservoir via a rubber grommet. It has one electrical connector and one fluid outlet port.
