Guide to the Knock Sensor for the 2007 Chevrolet Silverado 1500 Classic
Understand the common failure points and replacement needs for your truck's knock sensors.
- The knock sensors on the 2007 Classic are under the intake manifold and fail due to water corrosion.
- Always replace both sensors and the wiring harness at the same time due to the high labor involved.
- Verify you have the 'Classic' model, as the knock sensor location is different on the new body style 2007 Silverado.
- Ensure the new sensors are torqued to the correct specification (15-18 ft-lbs) to avoid false readings.
Is Your Silverado's Knock Sensor Failing?

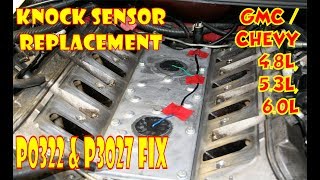

A bad knock sensor on a 2007 Silverado 1500 Classic will almost always turn on the Check Engine Light. The most common trouble codes are P0327 (Knock Sensor 1 Circuit Low) and P0332 (Knock Sensor 2 Circuit Low). 🎬 Watch this step-by-step guide to fixing P0332 and P0327 codes. You will likely feel a significant loss of engine power, sluggish acceleration, and notice worse gas mileage. This happens because the truck's computer goes into a "safe mode" to prevent damage when it can't get a good signal from the sensors.
The Real Problem: Location and Corrosion
On the V8 engines in the Silverado Classic (4.8L, 5.3L, and 6.0L), the two knock sensors are in a tough-to-reach spot: under the intake manifold in the engine's valley. This location is the main reason they fail. Water and dirt collect in the pockets where the sensors sit, causing rust and corrosion on the sensors and the wiring harness that connects them. When you remove the old parts, you will likely see visible corrosion.
Choosing the Right Aftermarket Knock Sensor
When replacing parts that require a lot of labor to access, quality is key. While many owners prefer to use OEM parts from ACDelco or Delphi, some recent experiences suggest that the quality of even OEM-branded sensors can be inconsistent. Some mechanics have reported success with quality aftermarket brands after having issues with new OEM parts. However, many forum users and technicians still strongly recommend using OEM parts to avoid having to do the job twice. Given the high labor involved, choosing a reputable brand is more important than saving a few dollars on a generic part. Since this is a known failure point, it is critical to replace both the sensors and the wiring harness at the same time.
Pro Tip: Prevent Future Failures

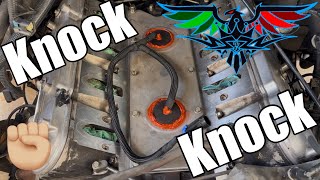

After installing the new sensors and harness, many mechanics recommend creating a small dam around the new sensor boots using RTV silicone. This helps prevent water from pooling in the sensor cavities again, protecting your new parts from corrosion. 🎬 See how a pro installs these sensors and seals the boots. Also, ensure the new sensors are torqued to the correct specification, which is typically 15-18 ft-lbs, as improper torque can cause incorrect readings and a recurring check engine light.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Knock Sensor (Each) | $25 - $75 |
| New OEM Knock Sensor (Each) | $60 - $90 |
| Knock Sensor Harness | $30 - $50 |
| Shop Labor | $250 - $450+ |
| Total Professional Replacement (Parts & Labor) | $400 - $700+ |
Frequently Asked Questions
Do I have to replace both knock sensors at the same time?
Yes. Because the sensors are located under the intake manifold, the repair is labor-intensive. It is highly recommended to replace both sensors and the wiring harness at the same time to avoid paying for the same labor twice if the second sensor fails shortly after the first.
Is this a DIY job?
For an experienced home mechanic, this is possible. However, it requires removing the entire intake manifold, disconnecting fuel lines, and various electrical connectors. It is considered a difficult and time-consuming job. 🎬 Check out these essential testing tips before you start the teardown. If you are not comfortable with a job of this scale, it is best left to a professional.
What is the difference between the 2007 "Classic" and the new body style Silverado?
The 2007 Silverado 1500 "Classic" is the GMT800 platform, which is the same body style as the 1999-2006 models. The knock sensors on these trucks are under the intake manifold. The new body style 2007 Silverado (GMT900) has its knock sensors located on the side of the engine block, which is a much easier replacement. It is crucial to identify which version you have before ordering parts.
Are there any recalls for the knock sensors?
No, there are no specific recalls from the NHTSA for knock sensor failure on the 2007 Chevrolet Silverado 1500 Classic. Recalls for this model year typically involve airbags or other components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12589867 213-3521
Location: Under intake manifold in engine valley. Quantity Required: 2. Recommended Torque: 15-18 ft-lbs.
