Chrysler Aspen 2007-2009 Ignition Knock Sensor Replacement Guide
Addressing the common causes of engine knock, power loss, and check engine light warnings in your Aspen.
- The sensors are located under the intake manifold, making replacement a labor-intensive and expensive job.
- Always replace both sensors and the wiring harness at the same time to avoid repeat repairs.
- Due to the high labor cost, choose a premium brand like Delphi, NGK, or Standard Ignition for reliability.
- Symptoms are often caused by the computer entering a 'safe mode', resulting in poor power and fuel economy.
Is Your Chrysler Aspen Knock Sensor Failing?
A faulty knock sensor is a common issue that will trigger your check engine light. When the sensor fails, the engine's computer can no longer detect detonation. To protect the engine, it will default to a 'safe' mode, which retards ignition timing. This results in noticeable symptoms like sluggish acceleration, poor fuel economy, and in some cases, an audible pinging or knocking sound from the engine.

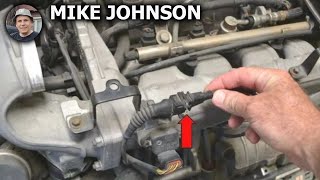

🎬 Watch: Common symptoms and sounds of a bad knock sensorImportant Replacement Note: Location & Labor

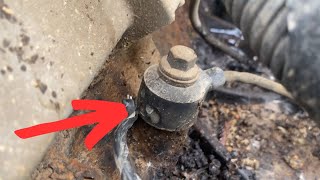

On the 2007-2009 Chrysler Aspen V8 engines, both knock sensors are located under the intake manifold. This is a difficult and labor-intensive part to access, requiring the complete removal of the manifold. 🎬 See this walkthrough of the Aspen knock sensor replacement Because of the high labor cost, it is strongly recommended to replace both knock sensors at the same time, along with the wiring harness that connects them. A faulty wire or connector can cause the exact same error codes, and you don't want to pay for the same job twice.
Choosing the Right Aftermarket Knock Sensor
Given the high cost of labor for this specific repair, selecting a quality, reliable part is critical. Saving a few dollars on a cheap sensor could lead to another expensive repair job down the road. Here’s a breakdown of the available brands.
Premium & OEM-Equivalent Brands
These brands are known for their quality and are often original equipment manufacturers for many car companies. For a part this difficult to access, choosing from this tier is the safest bet.
- Delphi: Often an OEM supplier, Delphi parts are trusted for their reliability and performance, meeting factory specifications.
- NGK: A top name in ignition parts and sensors, NGK is a highly reputable choice known for quality engineering.
- Standard Motor Products (Standard Ignition): A long-standing, respected aftermarket manufacturer that produces durable and reliable electronic components.
Reputable Aftermarket Brands
These brands offer a good balance of quality and value and are generally considered reliable for most repairs.
- Crown Automotive: Specializing in Chrysler, Jeep, and Dodge parts, Crown is a well-regarded brand in the Mopar community and is often considered a step above generic parts.
- Walker Products: An established company that manufactures engine management components to meet or exceed OE specifications.
- Holstein: A known aftermarket supplier providing a wide range of sensors.
Economy Brands
While brands like Global Parts and other low-cost options are available, they present a significant risk for this particular job. A premature failure would require repeating the entire expensive and time-consuming intake manifold removal. It is generally not recommended to use economy-tier sensors for this repair.
Typical Replacement Costs
The cost to replace the knock sensors on a 2007-2009 Aspen is dominated by labor due to the location under the intake manifold.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $350 - $600 |
| New Aftermarket Sensors (Pair) | $45 - $175 |
| New OEM (Mopar) Sensors (Pair) | $150 - $250 |
| Total Estimated Cost | $400 - $850+ |
Cost estimates are approximate and can vary based on your location and the specific repair shop.
Frequently Asked Questions (FAQ)
Why is this replacement so expensive?
The high cost is almost entirely due to labor. The sensors are buried under the engine's intake manifold, which must be removed to access them. This process can take a mechanic 3-5 hours, and new intake manifold gaskets are also required 🎬 Watch: How to remove the intake manifold on this engine for reassembly.
Can I just replace the one bad sensor?
You can, but it is not recommended. Since the labor to access the sensors is the same, and both sensors are the same age, it is wise to replace both at once to prevent having to do the job again if the second sensor fails soon after.
Could the problem just be the wiring?
Yes. The wiring harness connecting the knock sensors is a common point of failure. It can become brittle from heat or damaged by oil. Many technicians will replace the harness along with the sensors as a standard procedure for this job to ensure a lasting repair.
What happens if I don't replace a bad knock sensor?
Your vehicle's computer will remain in a 'safe' mode, resulting in continued poor engine performance, reduced power, and bad gas mileage. While the engine is protected from severe knock, ignoring the problem can potentially mask other issues and will prevent your vehicle from passing an emissions test.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56028563AA 56028564AA
The Chrysler Aspen V8 engines use two distinct knock sensors, one for each cylinder bank, located under the intake manifold. They are not interchangeable.
