Chrysler Aspen Transfer Case Motor Guide for 2007-2009 Models
Having trouble with your 4WD? This guide covers the common failures and replacement options for your Aspen's transfer case motor.
- The 'Service 4WD' light is the number one symptom of a failing transfer case motor.
- This part is only for Aspens with the two-speed transfer case (with a 2WD/4H/4L selector switch).
- Random, uncommanded shifting is a known, dangerous issue; if this occurs, inspect the motor immediately.
- Replacement is a simple bolt-on job suitable for DIY, requiring no special programming.
Is This The Right Part For Your Aspen?
Before troubleshooting, it's important to know that Chrysler offered two different four-wheel-drive systems for the 2007-2009 Aspen. This transfer case motor is only used on models with the two-speed, selectable transfer case (NV244). These vehicles have a selector switch in the cabin that allows you to choose between 2WD, 4-High, and 4-Low. If your Aspen has full-time All-Wheel Drive (AWD) with no selector switch, you have the single-speed transfer case (NV144) and this part does not apply to your vehicle.
Common Symptoms of a Failing Transfer Case Motor
When the transfer case motor begins to fail, it will usually let you know with some very clear signs. The most common issue reported by owners is the "Service 4WD" light illuminating on the dashboard.
- "Service 4WD" Light: This is the most common symptom. The vehicle's computer detects a problem with the 4WD system, often pointing to the motor's inability 🎬 See a quick tip for troubleshooting the Service 4WD light. to complete a shift.
- Unable to Shift Modes: You may find the system is stuck in 2WD and will not engage 4WD, or it may get stuck in 4WD and not disengage.
- Flashing 4WD Lights: Instead of staying solid when a mode is selected, the light for the desired mode may just blink, indicating the shift was not completed. 🎬 Learn how to fix and reset a flashing 4WD light.
- Grinding or Clicking Noises: You may hear a distinct electrical motor or grinding sound from under the vehicle when you try to shift modes. This can be the sound of the motor struggling to move the internal transfer case gears.
Critical Warning: Random Shifting
A significant and dangerous issue reported on some Chrysler Aspens and related Dodge Durangos is the transfer case shifting on its own without any driver input. This can include shifting into 4-Low while driving at low speeds or even while the vehicle is parked and turned off. This is a serious safety risk that can cause loss of vehicle control or damage to the drivetrain. If you experience this, the transfer case motor is a primary suspect and the system requires immediate inspection.
Choosing the Right Aftermarket Part
When replacing the transfer case motor, you don't need to buy an expensive OEM part from the dealer. Several reputable aftermarket brands offer direct-fit replacements. They are all 100% new parts, not remanufactured. These brands generally fall into a few tiers based on reputation and price.

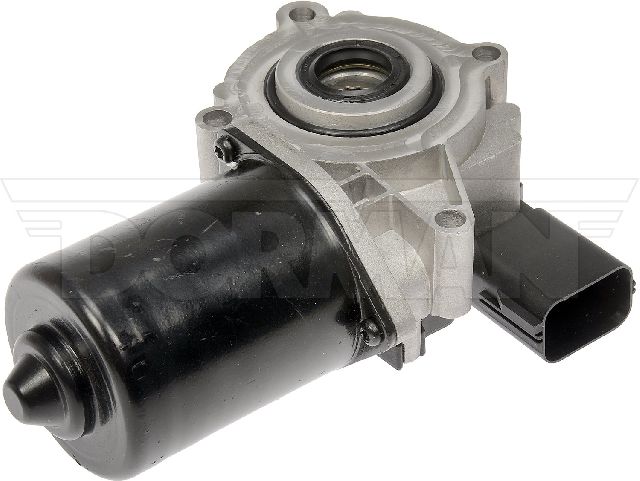

- Tier 1 (Premium Aftermarket): Brands like Standard Ignition (SMP) and Dorman are well-known in the industry. Standard Ignition has a strong reputation for quality electronic components. Dorman is a massive aftermarket manufacturer that often engineers solutions to common OE problems, and their parts are widely available. However, owner reviews for Dorman parts can be mixed, with some reporting long-term reliability and others experiencing premature failures.
- Tier 2 (Standard Aftermarket): This tier includes brands like Cardone. Cardone offers both new and remanufactured parts and is often seen as a reliable, budget-friendly alternative to premium brands.
- Tier 3 (Economy): Brands listed as Replacement or Skyward are typically entry-level, value-focused options. They meet the basic requirements for fit and function and are the most affordable, but may not have the same long-term durability or warranty support as higher-tier brands.
Pro Tip: Before ordering, confirm your connector type. The transfer case motor for the Aspen uses a 7-pin electrical connector. Mismatched connectors are a common ordering mistake.
Cost to Replace a Chrysler Aspen Transfer Case Motor
The cost for this repair involves the part itself and labor. While dealer parts can be expensive, aftermarket options provide significant savings. Shop labor rates can vary, but the job is not very time-consuming for a professional.
| Item | Estimated Cost |
|---|---|
| OEM Part (Dealer) | $600 - $700 |
| Aftermarket Part | $138 - $403 |
| Shop Labor | $100 - $260 |
| Total (Aftermarket Part + Shop Labor) | $238 - $663 |
Frequently Asked Questions (FAQ)
Is there a recall on the transfer case motor?
No. There are no active recalls from Chrysler or the NHTSA for the transfer case motor on the 2007-2009 Chrysler Aspen. Major recalls for this vehicle involve the Takata airbags and a rear axle component, which are unrelated to the 4WD system.
Can I replace the transfer case motor myself?
Yes, this is a DIY-friendly repair for someone with basic tools and mechanical experience. The motor is mounted externally on the transfer case with three bolts. The process involves disconnecting the electrical connector, unbolting the old motor, and bolting the new one in its place. You do not need to drain any fluids or open the transfer case itself. The job typically takes 1-2 hours.
🎬 Watch this step-by-step guide to replacing the motor yourself.What happens if I ignore the "Service 4WD" light?
Ignoring the light means you will not have a functioning four-wheel-drive system, which can be a safety issue in slippery conditions. More critically, if the fault is causing the transfer case to shift randomly, ignoring it could lead to a dangerous loss of control or expensive damage to your drivetrain.
Do I need to program the new motor?
No, a new transfer case motor for this vehicle does not require any special programming. It is a direct plug-and-play replacement. After installation, it's a good idea to cycle the 4WD system through all modes (2WD, 4H, 4L) with the vehicle on and the transmission in neutral to ensure everything is working correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5143477AA 5143477AB
Direct-fit replacement for two-speed transfer cases. Features a 7-pin electrical connector.
