Hyundai Entourage Brake Light Switch Guide for 2007-2010 Models
Understand the common issues and replacement options for your minivan's brake light switch.
- A faulty brake light switch is a very common and well-documented issue for the 2007-2010 Entourage, subject to a major safety recall (Hyundai Recall 110).
- Symptoms are not limited to the brake lights; a bad switch can also prevent you from shifting out of Park and cause the ESC warning light to come on.
- Replacement is a simple, low-cost DIY job that most owners can perform with basic tools in under an hour.
- Due to the original part's known flaws, choosing a quality aftermarket brand like Beck Arnley or Standard Ignition is a reliable option.
Understanding Brake Light Switch Failures in the 2007-2010 Hyundai Entourage
A faulty brake light switch is a known issue for the Hyundai Entourage. In fact, Hyundai issued a major recall (NHTSA Campaign #13V113000, Hyundai Recall #110) that included the 2007-2008 Entourage for a malfunctioning stop lamp switch. This recall addressed intermittent switch failures that could cause significant safety and operational problems. Another recall (NHTSA #06V356000) was issued for 2007 Entourage models with adjustable pedals, where the wiring harness could chafe and cause a short circuit.
Key Failure Symptoms to Watch For
When the brake light switch starts to fail, it can cause a range of confusing symptoms. Because the switch is tied to multiple vehicle systems, you might not immediately suspect it's the cause. Here’s what to look for:
- Brake Lights Don't Work or Stay On: The most obvious sign is your brake lights not turning on when you press the pedal, or staying on even when you're not braking.
- Can't Shift Out of Park: The switch is part of the brake-transmission shift interlock, which prevents you from shifting out of Park without your foot on the brake. A bad switch can leave you stranded.
- ESC Warning Light: A malfunctioning switch can trigger the Electronic Stability Control (ESC) warning light on your dashboard.
- Cruise Control Issues: Your cruise control might not engage, or it might not disengage when you tap the brake pedal.
- Push-Button Start Problems: On models equipped with it, a faulty switch can cause intermittent starting issues.
Safety Recall Notice
There was a significant safety recall (Hyundai Recall 110, NHTSA 13V113000) for the brake light switch on 2007-2008 Entourage models. Even if your vehicle is a 2009 or 2010, it uses a similar part prone to the same failures. It is crucial to check if your specific vehicle had the recall service performed. You can contact a Hyundai dealer with your VIN to verify. A failed switch can lead to your brake lights not working, increasing the risk of a rear-end collision.
Choosing the Right Aftermarket Brake Light Switch
When replacing the brake light switch, you don't have to buy the part from a Hyundai dealer. Aftermarket parts can offer good quality, often at a lower price. However, quality can vary between brands.
OEM vs. Aftermarket Quality
The original Hyundai switch had known durability issues, leading to the massive recall. Many aftermarket brands have since produced replacements. For a part this critical and prone to failure, choosing a reputable aftermarket brand is important. Brands like Beck Arnley and Standard Ignition are generally well-regarded for matching OE form, fit, and function. Other brands like Vemo, Facet, and Holstein also offer direct-fit replacements. Given the low cost of the part, it's wise to choose a mid-tier or premium aftermarket brand over the absolute cheapest option to avoid premature failure.
Pro Tip: When replacing the switch, it's a good idea to also check the small plastic or rubber stopper on the brake pedal arm that contacts the switch plunger. These stoppers can become brittle and break, causing the brake lights to stay on continuously, even with a new switch.
🎬 Watch how a bad switch keeps your brake lights on.| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $11.35 - $33.78 |
| Shop Labor | $140 |
| Total DIY Cost | $11.35 - $33.78 |
| Total Professional Replacement | ~$151 - $174 |
Frequently Asked Questions (FAQ)
Is it difficult to replace the brake light switch myself?
No, it is a relatively easy job for a DIYer. The switch is located above the brake pedal. It involves removing some lower dash panels for access, disconnecting the electrical connector, and unscrewing the switch. For models with adjustable pedals, it may require loosening a mounting bracket to get enough clearance. The most important part is adjusting the new switch correctly so the brake lights activate precisely when the pedal is pressed.
🎬 See how to replace the brake light switch yourself.My brake lights won't turn off. Is it the switch?
Most likely, yes. This is a classic symptom of a failed brake light switch where it is stuck in the "on" position. It could also be caused by a broken stopper on the brake pedal arm that the switch presses against. In either case, the switch area is the place to investigate.
Why did my ESC light come on?
The Electronic Stability Control (ESC) system needs to know when you are braking. It gets this information from the brake light switch. If the switch is sending faulty or no information, the system will flag an error and illuminate the ESC light on your dash.
🎬 Learn more about common symptoms of a failing switch.What is Hyundai Recall 110?
Hyundai Recall 110 (NHTSA Campaign #13V113000) was a safety recall to replace a faulty stop lamp switch in many Hyundai models, including the 2007-2008 Entourage. The original switches were found to malfunction intermittently, leading to safety risks like the brake lights not working or the cruise control not disengaging. Dealers were instructed to replace the switch free of charge.
Helpful Videos
Technical Specifications
OEM Part Numbers: 93810-3K000

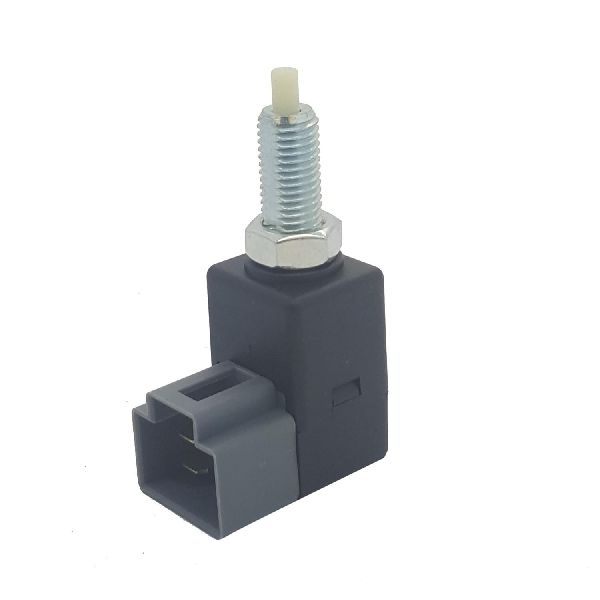

The switch is a 4-pin plunger-style switch located on the brake pedal bracket. It requires proper adjustment upon installation to ensure correct operation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
