A Guide to Replacing Oxygen Sensors on a 2007-2010 Hyundai Entourage
Understanding the four different oxygen sensors on your Entourage and how to choose the right replacement.
- Your Entourage has four oxygen sensors; use an OBD-II scanner to identify which one has failed before ordering.
- Bank 2 (rear, firewall side) sensors are significantly harder to replace than Bank 1 (front, radiator side) sensors.
- No recalls have been issued for oxygen sensors on this vehicle; failure is due to normal wear.
- Choose high-quality aftermarket brands like Bosch, Denso, or NGK for reliable performance and fit.
Understanding Oxygen Sensor Failure in Your Entourage
The oxygen sensors in your Hyundai Entourage are constantly exposed to extreme heat and exhaust gases, and they wear out over time. Contaminants like burnt oil or coolant can also cause them to fail prematurely. When a sensor fails, it sends bad information to your engine's computer, leading to a range of problems. The most common sign is the Check Engine Light illuminating on your dashboard. You may also notice a significant drop in gas mileage, a rough idle, engine hesitation, or even a rotten egg smell from the exhaust. Ignoring a bad oxygen sensor can lead to more expensive repairs down the road, including damage to your catalytic converters.
Don't Ignore a Failing Sensor
While you can technically drive with a bad oxygen sensor, it's not recommended. Your engine will run poorly, burn more fuel, and produce higher emissions. Prolonged driving can cause expensive damage to the catalytic converters, a repair that costs many times more than replacing a sensor.
Finding the Right Sensor: Bank and Position
Your Entourage's 3.8L V6 engine has four oxygen sensors in four specific locations. It is critical to order the correct part for the position you are replacing.
- Bank 1: This is the cylinder bank closer to the radiator (front of the vehicle).
- Bank 2: This is the cylinder bank closer to the firewall (rear of the vehicle).
- Sensor 1: This is the upstream sensor, located on the exhaust manifold before the catalytic converter. It is a primary sensor for controlling the air-fuel mixture.
- Sensor 2: This is the downstream sensor, located after the catalytic converter. It monitors the converter's performance.
Therefore, the four sensor positions are: Bank 1 Sensor 1, Bank 1 Sensor 2, Bank 2 Sensor 1, and Bank 2 Sensor 2.
🎬 Watch this guide to visualize sensor locations and replacement steps.Pro Tip: Diagnosing the Correct Sensor
Use an OBD-II scanner to read the trouble code that turned on your Check Engine Light. The code will tell you exactly which sensor is having a problem (e.g., P0150 points to a fault in the Bank 2 Sensor 1 circuit). This prevents you from replacing the wrong part.
Choosing the Right Aftermarket Oxygen Sensor
For the 2007-2010 Hyundai Entourage, several reputable aftermarket brands offer oxygen sensors that provide reliable performance. While OEM is always an option, high-quality aftermarket parts from established manufacturers are a cost-effective alternative. No forum discussions or service bulletins suggest that the Entourage is overly sensitive to aftermarket sensors, provided you choose a quality brand.
| Brand Tier | Brands | Notes |
|---|---|---|
| Premium (OEM-Equivalent) | Bosch, Denso, NGK (also sold as NTK) | These brands are often the original equipment manufacturers for Hyundai and other carmakers. They offer the highest quality and a direct-fit guarantee. For peace of mind and guaranteed compatibility, these are the best choices. |
| Quality Aftermarket | Delphi, Walker Products, Spectra | These are well-regarded aftermarket brands that produce reliable, direct-fit sensors. They offer a good balance of quality and value, often at a lower price than the premium brands. |
| Standard/Budget | DriveWire, Hella, and other store brands | These sensors are the most affordable and can be a good option for a tight budget. While they are designed to meet original specifications, their long-term durability may not match that of premium or quality aftermarket brands. |
Known Issues, Recalls, and Service Bulletins
As of early 2026, there are no specific recalls or technical service bulletins (TSBs) from the NHTSA or Hyundai related to oxygen sensor failure on the 2007-2010 Hyundai Entourage. Failures of this part are typically due to normal wear and tear. This vehicle has had recalls for other components, such as the ABS module and brake light switch, but the oxygen sensors are not included.
Frequently Asked Questions (FAQ)
How difficult is it to replace an Entourage oxygen sensor?

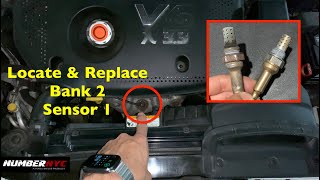

The difficulty varies greatly by location. The Bank 1 (front) sensors are relatively easy to access from underneath the vehicle. However, the Bank 2 (rear) sensors, especially the upstream one (Bank 2, Sensor 1), are very difficult to reach as they are located between the engine and the firewall. This may require special tools and significant time, making it a challenging job for a DIY mechanic. 🎬 See a walkthrough for replacing the difficult Bank 2 Sensor 1. The downstream sensors are generally easier than the upstream ones.
Do I need a special tool to replace an oxygen sensor?
Yes, an oxygen sensor socket is highly recommended. This is a special socket with a slot cut down the side to fit over the sensor's wire. Using a standard wrench can be difficult and may damage the new sensor or the wiring. Soaking the old sensor with penetrating oil before removal is also a crucial step.
Should I replace all four sensors at once?
It's not always necessary. If your vehicle has high mileage (over 100,000 miles) and one sensor fails, the others may not be far behind. Replacing them in pairs (both upstream or both downstream) or all four at once can be a good preventative measure. However, if your vehicle has lower mileage, it is usually fine to just replace the one that has failed.
Why are there different prices for the same sensor position?
The price difference comes down to the brand and its quality tier. Premium brands like Bosch and Denso use higher-grade materials and have more extensive quality control, which is reflected in the price. Budget brands offer a more affordable alternative but may not have the same longevity.
Helpful Videos
Technical Specifications
OEM Part Numbers: 39210-3C100 39210-3C200 39210-3C400 39210-3CBA0
The 3.8L V6 engine uses four-wire heated oxygen sensors. The upstream sensors are wide-band types, while the downstream sensors are typically standard switching types. All use an M18x1.5 thread size.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
