A Guide to the Starter Motor for the 2007-2010 Hyundai Entourage
Is your Hyundai Entourage clicking but not starting? Here’s what you need to know about its starter motor.
- A clicking sound doesn't automatically mean a bad starter; always test the battery and clean the terminals first, as this is a very common cause of a no-start condition.
- Replacement is a moderately difficult DIY job that requires accessing the starter from under the vehicle and may involve removing an oxygen sensor and a heat shield with potentially rusted bolts.
- Intermittent starting issues can also be caused by the vehicle's immobilizer system or ignition switch, so a proper diagnosis is important before buying parts.
- Quality aftermarket brands like ACDelco offer a reliable, cost-effective alternative to the more expensive OEM starter.
Is Your Entourage Starter Failing? Common Symptoms
A failing starter rarely dies without warning. For the 2007-2010 Hyundai Entourage, there are several common signs that point to a starter problem. Recognizing them early can prevent you from being stranded.
- Single Loud Click: You turn the key and hear one loud 'click' from the engine bay, but nothing else happens. This often means the starter's solenoid is working, but the motor itself is not turning the engine.
- Rapid Clicking Noise: A fast, repetitive clicking sound when you try to start the engine usually points to a weak or dead battery that can't provide enough power for the starter to work. Always test your battery before replacing the starter.
- Engine Won't Crank: You turn the key, the dashboard lights come on, but the engine makes no noise and does not turn over.
- Slow Cranking: The engine turns over much more slowly than usual, as if the battery is weak.
- Intermittent Starting: The van starts perfectly one day but refuses to start the next. This can be caused by worn internal parts in the starter or a poor electrical connection.
- Grinding or Whirring Noises: A high-pitched whirring sound suggests the starter motor is spinning but not engaging the engine. A harsh grinding noise can indicate a damaged starter gear or flexplate.
Diagnose Before You Buy
While these symptoms point to the starter, they can also be caused by other issues. On the Entourage, intermittent no-start problems have been linked to the battery, ignition switch, and even the anti-theft immobilizer system. A professional diagnosis can save you from replacing a part that isn't broken.
🎬 Watch: How to troubleshoot a no-crank issue on a Hyundai.Choosing a New Aftermarket Starter: Brand Quality

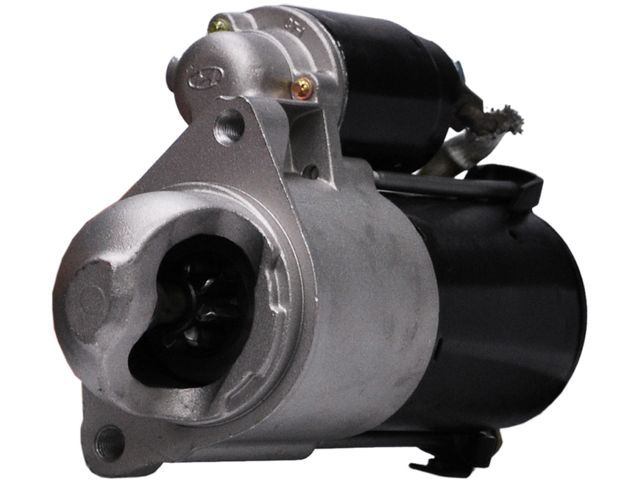

When replacing the starter on your Entourage, you don't have to buy an expensive OEM part from the dealer. Aftermarket brands offer a reliable and affordable alternative. The key is choosing a quality part that fits correctly.
- ACDelco: A well-known brand that produces parts for many makes and models, not just GM. Their starters are typically made with all-new components to meet or exceed original specifications for fit and function. They are a trusted choice for a balance of quality and value.

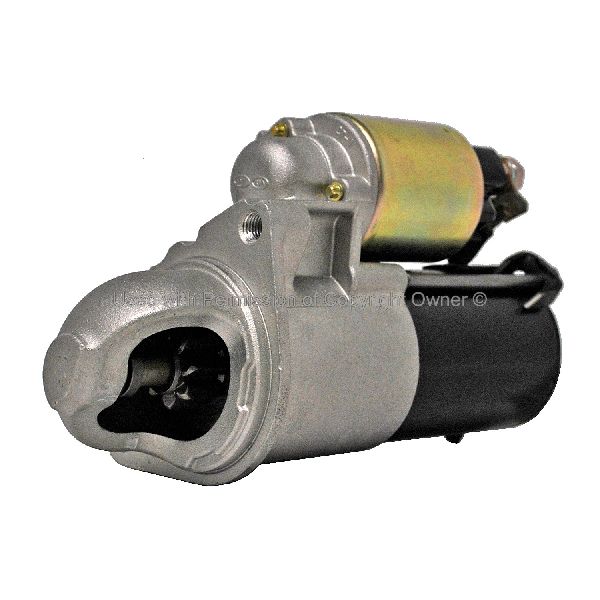

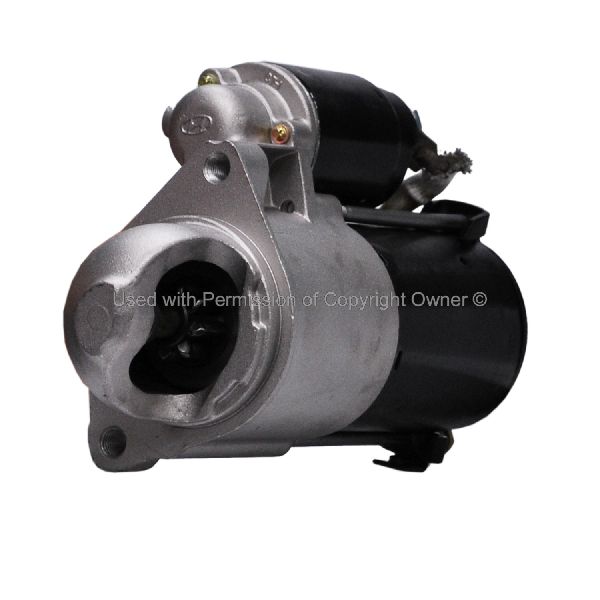

- MPA (Motorcar Parts of America): A major supplier of both new and remanufactured starters and alternators for the aftermarket industry. They are often sold under different store brands, like Carquest, and are built in certified facilities to high-quality standards.
New vs. Remanufactured
A 'new' aftermarket starter is made with 100% new components. A 'remanufactured' starter is a used OEM or aftermarket core that has been completely disassembled, cleaned, and rebuilt with new wear-and-tear components like brushes and bearings. A quality remanufactured starter from a reputable brand can be just as reliable as a new one.
🎬 See this step-by-step starter replacement on a 3.8L engine.Hyundai Entourage Starter Replacement Cost (2007-2010)
The total cost depends on the type of part you choose and whether you do the work yourself or hire a professional mechanic.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $123 - $158 |
| New OEM Starter | $340 - $505 |
| Remanufactured Starter | $105 - $210 |
| Shop Labor | $122 - $179 |
| Total Professional Replacement | $245 - $337 (with aftermarket part) |
Frequently Asked Questions
Where is the starter located on a 2007-2010 Hyundai Entourage?
The starter is located on the lower part of the engine, near where the engine connects to the transmission. It is only accessible from underneath the vehicle.
Can I replace the starter myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill and the right tools. However, it can be challenging. You must safely raise the vehicle, disconnect the battery, and remove a splash shield, a heat shield, and the rear oxygen sensor to gain access. The bolts for the heat shield are known to seize with rust, which can make the job much harder.
🎬 Watch this video for tips on accessing the starter underneath.Are there any recalls for the Hyundai Entourage starter?
No, there are no specific recalls for the starter motor on the 2007-2010 Hyundai Entourage. Some other Hyundai models have had starter-related recalls, but the Entourage is not affected.
Why does my Entourage just click when I try to start it?
A single click is often the starter solenoid engaging but the motor failing to turn, indicating a bad starter. However, a rapid clicking noise is almost always a sign of a weak battery that doesn't have enough power to crank the engine. Always check the battery and its connections first.
Helpful Videos
Technical Specifications
OEM Part Numbers: 36100-3C150 36100-3C180
Power: 1.4 Kilowatts, Type: Permanent Magnet Gear Reduction (PMGR)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
