A Guide to Ignition Coils for the 2007-2010 Saturn Outlook
Solve engine misfires and restore performance by choosing the right ignition coils for your Outlook's 3.6L V6 engine.
- Accessing the three rear ignition coils requires removing the intake manifold, making the job more complex.
- It is highly recommended to replace all six ignition coils and spark plugs at the same time to save on future labor costs.
- Check for oil in the spark plug tubes, as leaking valve cover gaskets are a common cause of premature coil failure.
- Premium brands like ACDelco and Delphi offer the best reliability and are often the original equipment manufacturer.
Is Your Saturn Outlook Shaking, Stuttering, or Losing Power?
If your 2007-2010 Saturn Outlook is running rough, hesitating when you accelerate, or the Check Engine Light is on, you may have a failing ignition coil. These coils are a common failure item, but replacing them can restore your engine's performance. This guide will walk you through the symptoms, how to choose the right replacement parts, and what to expect during the repair.
Symptoms of a Bad Ignition Coil in a Saturn Outlook
A bad coil can make itself known in several ways. You might notice one or more of these signs:
- Engine Misfires: The engine may shake, stutter, or jerk, especially under load or when idling. This is the most common symptom.

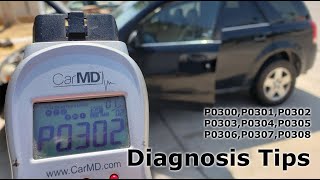

- Check Engine Light: A failing coil will almost always trigger the Check Engine Light. If the light is flashing, it indicates a severe misfire that could damage your catalytic converter. Common codes include P0300 (random misfire) or P0301-P0306 for a misfire in a specific cylinder. 🎬 Watch: How to diagnose these specific misfire codes yourself.
- Reduced Power and Acceleration: Your Outlook may feel sluggish and slow to respond when you press the gas pedal.
- Poor Fuel Economy: When a cylinder isn't firing correctly, the engine becomes less efficient, causing you to use more fuel.
- Rough Idle: The engine may vibrate or sound uneven when the vehicle is stopped.
A Critical Job for the Saturn Outlook: Front vs. Rear Coils
The 3.6L V6 engine in your Outlook has three ignition coils on the front of the engine (near the radiator) and three on the rear (against the firewall). While the front three are easy to access, the rear three are located underneath the upper intake manifold. Replacing the rear coils requires removing this large engine component, making the job significantly more complex and time-consuming. Because of this added labor, it is highly recommended to replace all six coils and all six spark plugs at the same time. You don't want to pay for that labor twice.
🎬 See a step-by-step walkthrough of this spark plug replacement.Known Issues: Technical Service Bulletin (TSB) PIP5038B
General Motors issued a TSB for some 2009 Outlook models experiencing misfires, shuddering, and repeat coil failures. The bulletin notes that dirty or loose ignition coil ground connections can cause these problems. It also suggests that for vehicles built before December 2008 with melted coils, all six coils, spark plugs, and the Engine Control Module (ECM) should be replaced as a set to prevent further damage. When replacing your coils, it's a good idea to inspect and clean the ground points as a preventative measure.
Choosing the Right Aftermarket Ignition Coil
Not all aftermarket coils are created equal. For a part this critical, quality matters. We can group the available brands into three tiers.
Tier 1: OEM & Premium Aftermarket
These brands either made the original parts for Saturn or are known for exceptional quality and reliability. They are the best choice for longevity and performance.
- ACDelco: As GM's own parts brand, this is the original equipment (OE) supplier. Choosing ACDelco ensures a perfect fit and OE performance.
- Delphi: Delphi was once part of GM and is a major OEM manufacturer that likely produced the original coils. They are considered an OE-equivalent quality part.
- Bosch, NGK, Hitachi: These are world-renowned manufacturers that produce high-quality ignition components that meet or exceed OE specifications.
Tier 2: Quality Aftermarket
These brands offer a good balance of quality and price. They are reliable choices for most repairs.
- Standard Ignition (SMP): A long-standing brand in the aftermarket known for producing dependable parts.
- Holstein, Walker Products: Reputable aftermarket companies that provide quality components.
Tier 3: Economy Brands
These brands focus on value. They can be a good option for a budget-conscious repair, but may not offer the same long-term durability as premium brands.
- DriveWire, True Tech, URO Parts, Spectra: These brands offer a low-cost alternative. They can be suitable if you are on a tight budget or may not be keeping the vehicle for much longer.
| Part Quality | Price Range (Single Coil) | Price Range (Set of 6) |
|---|---|---|
| Premium (ACDelco, Delphi, Bosch) | $60 - $100 | $300 - $400+ |
| Quality Aftermarket (Standard, Holstein) | $45 - $75 | $200 - $350 |
| Economy (Store Brands, etc.) | $35 - $55 | $130 - $250 |
Pro Tip: Check for Oil Leaks
When you remove the old ignition coils, inspect the spark plug tubes for oil. The valve cover gaskets on the 3.6L engine can leak oil down into the tubes, which will destroy the new spark plugs and ignition coils over time. If you see oil, you must replace the valve cover gaskets to fix the root cause of the problem.
Frequently Asked Questions (FAQ)
Should I replace all six ignition coils at once?
Yes. Because accessing the three rear coils requires removing the intake manifold, it is highly recommended to replace all six coils and spark plugs at the same time. The coils and plugs wear at a similar rate, and this approach saves you from having to pay for the same difficult labor again in the near future.
Can I replace the ignition coils myself?
Replacing the three front coils is a straightforward DIY job for someone with basic tools. However, replacing the three rear coils is a more advanced task because it requires removing the upper intake manifold. If you are not comfortable with that level of disassembly, it is best to leave this job to a professional mechanic.
🎬 Watch: How to access and replace those difficult rear coils.Are there any recalls for the Saturn Outlook ignition coils?
No, there are no specific safety recalls for the ignition coils on the 2007-2010 Saturn Outlook. There have been recalls for other vehicle components, but the ignition coils themselves have not been subject to a recall.
What's the difference between ACDelco and Delphi coils?
ACDelco is GM's official parts brand, while Delphi was the manufacturing division of GM that was spun off into its own company. For many parts on your Outlook, Delphi was the original manufacturer. Both are considered OEM-quality and are excellent choices for replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12631062 12618542 12610626 D514A
The 2007-2010 Saturn Outlook uses a 'Coil-on-Plug' (COP) ignition system with six individual pencil-style coils for its 3.6L V6 engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
