Saturn Sky 2007-2010 Ignition Knock Sensor: A Vehicle-Specific Guide
Understanding how to diagnose and choose the right knock sensor for your 2.4L or 2.0L Turbo Sky.
- A bad knock sensor will cause a Check Engine Light and a major loss of power as the car enters a protective 'limp mode'.
- The sensor is located above the starter and must be replaced from underneath the car; it's a blind job that requires patience.
- For this critical sensor, choosing a top-tier brand like ACDelco, Delphi, or NGK is strongly recommended over budget options.
- No recalls have been issued for the knock sensor on the Saturn Sky; failure is due to normal wear and tear.
Symptoms of a Failing Knock Sensor in a Saturn Sky
A bad knock sensor will almost always trigger the Check Engine Light. When the sensor fails, the engine computer can no longer hear if the engine is knocking, so it plays it safe by reducing engine power to prevent damage. This is often called "limp mode."
- Check Engine Light: The most common sign, with codes P0325 or P0326 stored in the computer.
- Reduced Engine Power: The car will feel noticeably slower and sluggish, as the computer retards ignition timing to protect the engine.
- Hesitation on Acceleration: The car may stumble or jerk when you press the gas pedal.
- Worse Fuel Economy: With the engine running inefficiently, you may notice you're filling up the tank more often.
- Audible Pinging: You might hear a metallic rattling or pinging sound from the engine, especially when accelerating or going up hills. This is the sound of detonation that the sensor is supposed to detect.
A Note on Code P0326
The code P0326 (Knock Sensor Circuit Range/Performance) can sometimes be triggered even if the sensor is working. It means the computer tried to adjust timing but the "knock" sound didn't go away. This could be caused by other mechanical issues, like a noisy belt tensioner or other loose components, that are creating vibrations the sensor is picking up as knock. Always check for other engine noises before replacing the sensor for a P0326 code.
Choosing the Right Aftermarket Knock Sensor
For critical engine sensors, brand quality matters. While many brands are available, they generally fall into three tiers for your Saturn Sky.
Tier 1: OEM & OEM-Equivalent Brands
These brands are either the original supplier to GM or are known for producing parts to the exact same standards. They are the safest choice for fit, function, and longevity.
- ACDelco: As GM's in-house parts brand, this is the closest you can get to the original part. It is generally the most recommended brand for GM electronics. However, be aware that some online forum users have recently reported a potential decline in quality control for ACDelco sensors, receiving faulty parts out of the box.
- Delphi: A massive OEM manufacturer that has historically made many of GM's original electronic components. A Delphi sensor is often considered equal in quality to ACDelco and is an excellent choice.
Tier 2: Reputable Aftermarket Brands
These companies have a long history of producing reliable electronic components and are a solid alternative to OEM parts, often at a slightly lower price.
- NGK (or NTK): While famous for spark plugs, their sensor division (NTK) is a top-tier supplier for many automakers and a trusted name.
- Standard Ignition (SMP): A well-respected brand in the professional mechanic community for quality replacement parts.
Tier 3: Budget-Friendly Brands
These brands offer a significant cost saving, but may have a higher risk of failing sooner or being less sensitive than OEM parts. They can be a viable option for a budget-conscious repair, but for a critical sensor like this, a Tier 1 or Tier 2 part is recommended.
- Walker Products
- Global Parts
- Facet
Installation Location & Pro Tip
The knock sensor on both the 2.4L and 2.0L Ecotec engines is located on the side of the engine block, directly above the starter. It is not visible from the top of the engine bay and must be accessed from underneath the car. The job is done by feel, as you cannot see the sensor directly. A 13mm ratcheting wrench is highly recommended. Often, the most difficult part is not unbolting the sensor, but safely unclipping the brittle plastic electrical connector in the tight space.
Cost of Replacing a Saturn Sky Knock Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $27 - $45 |
| New Aftermarket | $26 - $52 |
| Shop Labor | $100 - $225 |
Frequently Asked Questions
Where is the knock sensor located on the Saturn Sky?
It is bolted to the engine block, directly above the starter motor. You must access it from under the vehicle, and it is generally not visible from above.
Can I still drive my Sky with a bad knock sensor?
Yes, but it is not recommended for long. The engine computer will default to a safe mode with reduced power to prevent damage. This will make the car feel very sluggish. You should avoid hard acceleration and have it repaired soon to restore performance and ensure the engine is protected.
Is there a recall for the knock sensor on the 2007-2010 Saturn Sky?
No, there are no specific recalls or technical service bulletins (TSBs) from GM or the NHTSA for a widespread failure of the ignition knock sensor on the Saturn Sky.
Why did my car lose all its power when the Check Engine Light came on?
When the knock sensor fails, the engine computer loses its ability to detect harmful detonation. As a safety precaution, it dramatically reduces ignition timing and, in some cases, turbo boost. This "limp mode" protects the engine but results in a significant loss of power.
Technical Specifications
OEM Part Numbers: 12623730 12570125 213-969

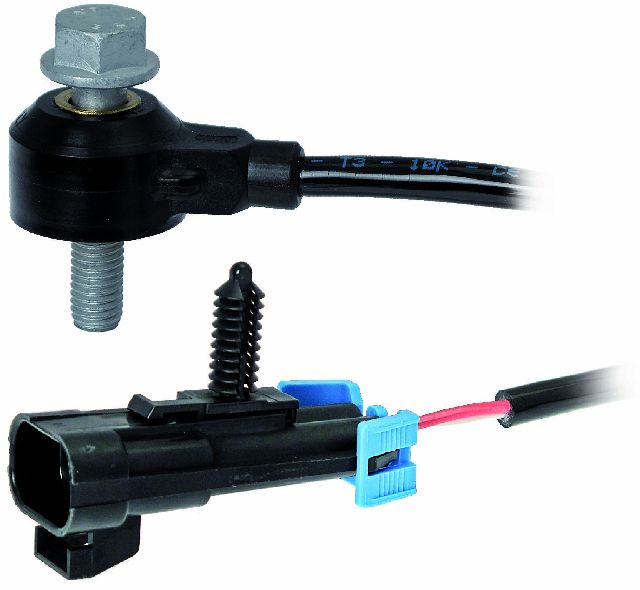

Single bolt-on piezoelectric sensor, typically with a 2-pin connector.
