Saturn Sky 2007-2010 Starter Motor Replacement and Diagnosis Guide
Don't get stranded by a no-start condition—find the right starter for your 2.4L or Red Line Sky.
- The same starter fits both the 2.4L Base and 2.0L Turbo Red Line models.
- A no-start condition could be caused by the recalled ignition switch, not the starter.
- Replacement is difficult; removing the intake manifold is recommended for access.
- Check for oil leaks dripping onto the starter, as this is a known cause of failure.
Is Your Saturn Sky Starter Failing?
A bad starter is a common reason for a car not starting, but its symptoms can often be confused with a weak battery. The most common sign of a failing starter in a Saturn Sky is a single, loud click from the engine bay when you turn the key, but the engine doesn't crank. You might also hear a grinding noise during or after cranking, which suggests the starter gear isn't meshing properly with the flywheel. 🎬 Watch: Hear examples of clicking and grinding starter sounds. In other cases, the engine may crank very slowly, as if the battery is dead, or you may hear no sound at all.
Important: Check for Related Issues First

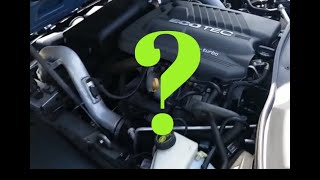

Before replacing your starter, be aware of two vehicle-specific issues. First, there was a major recall on the ignition switch for all 2007-2010 Saturn Sky models. A faulty switch can prevent power from reaching the starter, mimicking a failed part. 🎬 See how to diagnose a no-start before buying parts. Second, oil leaks from higher up on the engine can drip onto the starter, causing it to fail prematurely. Check the area above your starter for any signs of leaking oil.
Choosing the Right Aftermarket Starter
When shopping for a new aftermarket starter, you have options that balance cost and quality. It's important to know that both the 2.4L and 2.0L Turbo engines use the same starter.
- Premium Aftermarket (ACDelco): As a General Motors brand, ACDelco is the closest you can get to the original part. Their Professional and Gold series parts are known for their OE-level fit and quality, making them a reliable, long-term choice. They are built to original specifications, ensuring proper performance.
- Standard Aftermarket (MPA and others): Brands like MPA (Motor Parts of America) and other new units from auto parts stores offer a cost-effective solution. These parts meet or exceed original specifications and provide reliable function for daily driving. For many owners, a quality new aftermarket starter provides a great balance of price and performance.
| Part Grade | Typical Price Range | Best For |
|---|---|---|
| New OEM | $300 - $450 | Owners wanting the original factory part. |
| New Aftermarket (Premium) | $200 - $295 | A long-lasting, OE-quality repair without the dealership price. |
| New Aftermarket (Standard) | $128 - $199 | A reliable and affordable replacement for a daily driver. |
| Remanufactured | $130 - $170 | Budget-conscious repairs, quality can vary. |
Pro Tip: The "Tap" Trick
If you're stranded with a clicking starter, you can sometimes get it to work one more time by tapping it firmly (but not too hard) with a wrench or hammer handle while a helper turns the key. This can temporarily free up worn internal components. This is not a fix, but it might get you home or to a repair shop.
Frequently Asked Questions
How do I know it's the starter and not the battery?
If your lights, radio, and other accessories work fine but the engine won't crank, the starter is a likely suspect. A rapid-fire clicking sound often points to a low battery, while a single, strong click is more typical of a bad starter solenoid or motor. The best first step is always to have your battery tested; most auto parts stores will do this for free.
Where is the starter motor located on the Saturn Sky?
The starter is located on the driver's side of the engine, mounted to the transmission bell housing and tucked underneath the intake manifold. This location makes it difficult to access from either the top or bottom of the car.
Is replacing the starter a DIY job?
For an experienced DIYer, it is possible. However, on the 2.4L engine, mechanics strongly recommend removing the entire intake manifold to access the top starter bolt. This adds significant time and complexity to the job. If you are not comfortable with a job of that scale, it is best left to a professional.
🎬 Watch this step-by-step Saturn Sky starter replacement guide.Is the starter the same for the Base and Red Line models?
Yes. All 2007-2010 Saturn Sky models, whether the 2.4L Base or the 2.0L Turbo Red Line, use the exact same starter motor.
Are there any recalls for the Saturn Sky starter?
No, there are no specific recalls or Technical Service Bulletins (TSBs) for the starter motor itself. However, a widespread ignition switch recall can cause no-start symptoms and should be checked first.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89060407 12609317 12638686
12 Volt, 1.4 kW Power, Permanent Magnet Gear Reduction (PMGR) Design, Clockwise Rotation.
