Chevrolet HHR Door Window Switch: A Guide for 2007-2011 Owners
If your HHR's power windows are acting up, the switch is a common and easy-to-fix problem.
- Window switch failure is a very common and easy-to-fix issue on the 2007-2011 HHR.
- Symptoms often include a window going down but not up, or intermittent operation.
- Replacement is a simple DIY task that takes less than 20 minutes with basic tools.
- Aftermarket brands like ACDelco, Standard Ignition, and Dorman are reliable alternatives to expensive OEM parts.
Is Your HHR Window Switch Failing? Common Symptoms
A failing window switch in a 2007-2011 Chevrolet HHR can be frustrating. The symptoms often point directly to the switch itself, especially the master switch on the driver's door. Because the internal contacts wear out or get dirty over time, the switch may stop working correctly. Here’s what to look for:
- One window won't work from the master switch: You might find that the driver's switch can no longer operate a specific passenger window, but that window still works using its own door switch.
- Intermittent operation: The window may work sometimes but not others. You might have to press the button multiple times or with extra force to get it to respond.

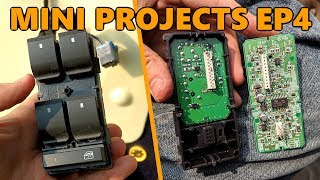

- Window goes down but not up: This is a very common failure mode. The contacts inside the switch responsible for the 'up' command wear out, leaving you with a window that's stuck open. 🎬 Watch this video to see how to repair a failing switch.
- No windows work: If all windows stop responding to the master switch at once, it's a strong sign the entire switch assembly has failed.
- Clicking sound, but no movement: Hearing a click from the door when you press the button means the switch is trying to send a signal, but a dead motor or a broken wire could also be the cause. However, if you've ruled out other issues, the switch is a likely culprit.
Check for Recalls
While there are no specific recalls for the window switch on the 2007-2011 Chevrolet HHR, other GM vehicles of a similar era were recalled for window switches that could short circuit from moisture, posing a fire risk. This highlights the importance of replacing a faulty switch. The HHR did have a major recall for a faulty ignition switch, which could cause various electrical problems.
Choosing the Right Aftermarket Switch for Your HHR
When replacing your window switch, you don't have to buy an expensive part from the dealer. Aftermarket brands offer a wide range of quality and price. For GM vehicles like the HHR, some aftermarket brands are very close to the original quality.

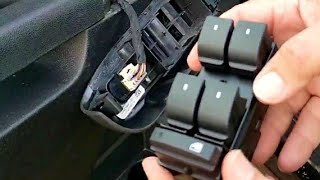

🎬 Watch a master switch replacement on a similar GM vehicle.Brand Quality Tiers
- Premium Aftermarket (Closest to OEM): Brands like ACDelco and Standard Ignition (SMP) are often considered top-tier aftermarket choices. ACDelco is the original parts supplier for GM, though they have different quality lines; their 'Professional' or 'GM Original Equipment' lines are highest quality. These parts are designed to meet or exceed the original specifications.
- Standard Aftermarket (Good Value): Brands like Dorman, URO Parts, and Rostra offer a balance of quality and affordability. Dorman is a very popular choice and often makes parts that are readily available. While some users have mixed experiences, they are a solid option for a daily driver and often come with a good warranty.
- Economy Brands: Brands like Skyward and others found on large online marketplaces offer the lowest price. These can be a good fit for a tight budget, but their long-term durability may not match the higher-tiered brands.
Pro Tip: Check the Window Motor First
Before you order a new switch, quickly test the window motor. If a window isn't working, try operating it from both the master switch and the individual door switch. If it works with one but not the other, the problem is almost certainly the switch. If it doesn't work with either, the issue could be the motor, fuse, or wiring in the door.
Cost of Replacing an HHR Door Window Switch
| Part Type | Price Range |
|---|---|
| New Aftermarket | $20.62 - $96.75 |
| New OEM | $100 - $180+ |
| Shop Labor | $52 - $77 |
Frequently Asked Questions
Is replacing the HHR window switch a DIY job?
Yes, absolutely. Replacing the master window switch on a 2007-2011 HHR is very easy and requires only basic tools like a trim removal tool and a Torx screwdriver. The switch is located in the driver's door armrest. You simply pry up the switch panel, remove two screws, disconnect the wiring, and swap in the new part. The whole job can be done in under 20 minutes.
🎬 See this step-by-step walkthrough for replacing your HHR window switch.Do I need to disconnect the battery to replace the switch?
It is always a best practice to disconnect the negative battery terminal before working on any vehicle electrical components to prevent accidental shorts.
My switch lights up but doesn't work. Is it still bad?
Yes, this is a common failure. The circuit that provides backlighting to the switch is separate from the circuits that actually operate the windows. It is very possible for the lights to work perfectly even when the internal switch contacts have failed.
Why do only the front windows not work from the master switch?
The wiring diagram for the HHR shows that the front windows run through a common circuit from the Body Control Module (BCM). A failure in this part of the master switch is a common issue. If the rear windows work fine from the master switch but the fronts do not, it's a strong indicator that the master switch itself needs to be replaced.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22895545 20945129 25789692 25951963

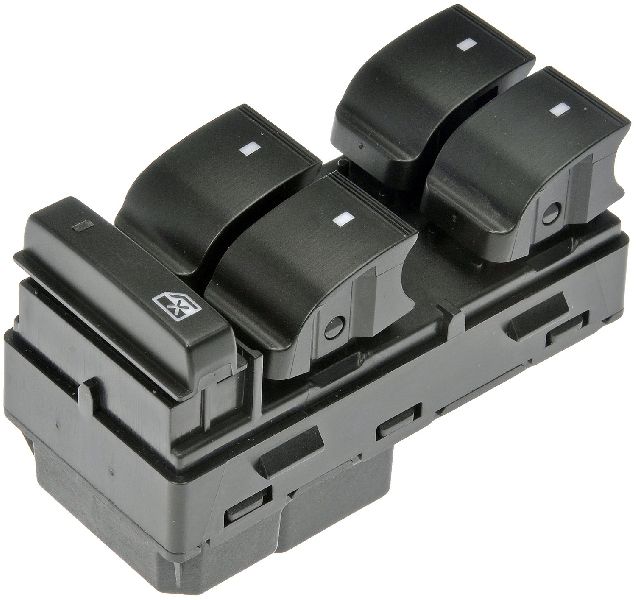

Driver's side master power window and door lock switch assembly. Located in the driver's door armrest.
