Keyless Entry Remote Guide for the 2007-2011 Chevrolet Silverado 1500
If your key fob is failing, this guide will help you choose the right replacement and get it working with your truck.
- For most 2007-2010 models, you can program a new remote yourself in minutes using the truck's DIC menu.
- Always try replacing the CR2032 battery first; it's the most common and cheapest fix.
- If you have a 2011 model, be aware that you might need a locksmith for programming.
- When programming, you must relearn all your remotes (new and old) in the same session.
Is Your Silverado's Key Fob Acting Up?
A keyless entry remote that works only sometimes or not at all is a common issue for 2007-2011 Silverado owners. Often, the internal electronics wear out, the battery dies, or the case simply breaks from years of use. Before you replace the whole unit, always try installing a new battery first. The required battery is a CR2032 coin cell 🎬 Watch: How to quickly swap your key fob battery, which is inexpensive and easy to find.
Symptoms of a Failing Keyless Entry Transmitter
When a key fob starts to fail, the signs are usually obvious. You don't need to be a mechanic to spot them.
- Inconsistent Response: The most common symptom is when the buttons only work some of the time. You might have to press a button multiple times to get the doors to lock or unlock.
- Reduced Range: You may find that you have to stand right next to your truck for the remote to work, whereas it used to work from much farther away. This is a classic sign of a weak battery or failing transmitter.
- No Function at All: The remote simply stops working entirely. Even with a new battery, none of the buttons trigger a response from the truck.
- Works Only After Starting: Some owners report a strange issue where the fob only starts working *after* the truck has been turned on with the key. This can point to a problem with the truck's receiver module.
Check the Obvious First
Always replace the CR2032 battery before buying a new remote. It's the most common and cheapest fix. If a new battery doesn't solve the problem, then it's time to consider a replacement transmitter.
Choosing the Right Aftermarket Remote: ACDelco vs. Motormite
For the 2007-2011 Silverado, you have two main aftermarket brand choices: ACDelco and Motormite (a Dorman brand). Your choice depends on your budget and priorities.
ACDelco (GM Original Equipment)
ACDelco is General Motors' own parts brand. Choosing an ACDelco remote means you are getting a part that is either identical or very close to the one that came with your truck from the factory. Forum users generally report higher satisfaction and better reliability with ACDelco parts compared to other aftermarket options. However, be aware that ACDelco offers different quality tiers; the "Professional" or "GM Original Equipment" lines are considered the highest quality.
Motormite (Dorman)
Dorman (which sells under the Motormite name) is a well-known aftermarket manufacturer that focuses on providing lower-cost alternatives to OEM parts. While some mechanics are wary of Dorman's quality consistency on complex parts, a key fob is a relatively simple electronic device. For many owners, a Dorman remote is a perfectly acceptable, budget-friendly solution. A major advantage is that some Dorman kits include a simple, plug-in programming tool, which can be a huge money-saver for 2011 models that may otherwise require a locksmith.
| Brand Tier | Our Brands | Typical Quality & Price |
|---|---|---|
| Premium Aftermarket | ACDelco | OEM-equivalent quality and function. Higher price point but trusted for reliability and fit. |
| Standard Aftermarket | Motormite (Dorman) | A cost-effective alternative to OEM. Quality is generally acceptable for this part, and some kits include helpful programming tools. |
Installation and Programming Your New Remote
One of the best things about this generation of Silverado is that for most model years, you can program a new remote yourself in minutes without any special tools.
Important Note for 2011 Owners: There is conflicting information regarding DIY programming for the 2011 Silverado. Some sources indicate it requires professional programming with a scan tool, like newer trucks. Others state the DIY method still works. If you have a 2011 model, be prepared that the DIY method may not work, and you might need a locksmith or a Dorman kit that includes a programmer.
DIY Programming Steps (2007-2010)
This process works for trucks with the Driver Information Center (DIC) buttons on the dash.
- Get in the truck, close all doors, and insert the key into the ignition.
- Turn the key to the ON position (don't start the engine).
- Press the vehicle information button on your DIC (it has an 'i' icon) until the screen displays "PRESS TO RELEARN REMOTE KEY".
- Press the set/reset button (the one with a checkmark) until the display shows "REMOTE KEY LEARNING ACTIVE".
- Press and hold the LOCK and UNLOCK buttons on your new remote at the same time for about 15 seconds. You will hear a chime from the truck, which confirms the remote has been programmed.

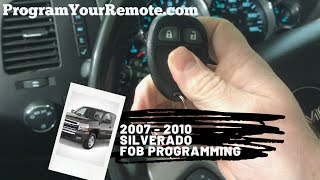

- If you have other remotes (including your old ones that still work), you must program them all at this time by repeating Step 5 for each one. 🎬 See this step-by-step video for programming your new remote
- To exit programming mode, turn the ignition off and remove the key. Test all your remotes.
Frequently Asked Questions
Can I program a new key fob myself?
For 2007-2010 Chevrolet Silverado 1500 models, yes, you can easily program a new fob yourself using the Driver Information Center (DIC). For 2011 models, it is less certain; you may need a locksmith or a special aftermarket programmer.
Why did my key fob stop working?
The most common reason is a dead battery (CR2032). Other causes include physical damage from being dropped, worn-out button contacts inside the remote, or, less commonly, a problem with the remote receiver module in the truck itself.
Do I need to replace the whole fob for a broken case?
No. If the electronics inside your remote still work, you can buy an empty replacement shell or case. You can then transfer the internal circuit board and battery into the new case, which is much cheaper than buying a whole new transmitter.

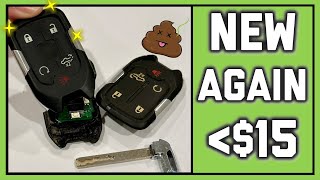

🎬 Watch: How to swap your electronics into a new shellWill an aftermarket fob have the same range as the original?
Generally, a quality aftermarket remote from a brand like ACDelco should provide similar range and performance to the original. Lower-quality, unbranded remotes may have a noticeably shorter range.
Are there any recalls for the keyless entry system?
No, there are no specific recalls from the NHTSA for the keyless entry transmitter or system on the 2007-2011 Chevrolet Silverado 1500.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15913421 20952474 20952475 20869056 22936099
FCC ID: OUC60221, OUC60270. Battery Type: CR2032. Note: 2007 'Classic' models use a different remote (FCC ID: LHJ011) and are not covered here.
