Dodge Nitro Disc Brake Caliper Replacement Guide (2007-2011)
Address brake pulling, noise, and uneven wear by choosing the right replacement caliper for your Nitro.
- A seized caliper is the most common failure, causing pulling, a hot wheel, and a burning smell.
- Always replace calipers in pairs (both fronts or both rears) to ensure balanced braking.
- It is strongly recommended to replace the flexible brake hose with the caliper to prevent a repeat failure.
- Properly bleeding the brakes after installation is critical for safety and performance.
Signs of a Failing Dodge Nitro Brake Caliper
A failing brake caliper on your 2007-2011 Dodge Nitro is a serious safety issue. The most common problem is a seized or sticking caliper piston or slide pins. This means the brake on one wheel doesn't fully release, causing constant drag. Look for these specific symptoms:
- Vehicle Pulling to One Side: When you brake, the Nitro pulls left or right. A sticking caliper can also cause pulling even when you're not braking.
- Burning Smell & Hot Wheel: After a drive, you may notice a strong, acrid burning smell from one wheel. The wheel itself will be significantly hotter to the touch than the others due to the constant friction.
- Uneven Brake Pad Wear: A classic sign of a sticking caliper is one brake pad (usually the inner one) wearing down much faster than the other. You might find one pad is worn to the metal while the other looks nearly new.
- Spongy or Soft Brake Pedal: If a caliper seal fails and leaks brake fluid, it can allow air into the system, resulting in a mushy-feeling pedal.
- Grinding or Squealing Noises: While often a sign of worn pads, constant noise can also indicate a caliper that isn't releasing properly, causing the pads to drag.
Choosing the Right Aftermarket Caliper
You don't need to buy an expensive OEM caliper from the dealer. Aftermarket brands offer a range of quality options, from standard replacements to performance upgrades. All aftermarket calipers listed are new, not remanufactured, eliminating concerns about the quality of old parts.
Standard Replacement Calipers
These brands offer reliable, daily-driver quality that meets or exceeds original specifications. They are ideal for a standard repair to get your Nitro back to safe, factory-level performance.
- Raybestos & Centric: Both are well-regarded in the aftermarket for providing consistent quality. They are a solid choice for a dependable, no-frills replacement. Some Centric calipers may have a thinner coating, leading to surface rust faster in salt-belt regions, but their mechanical function is reliable.
- ACDelco: Often available in professional or "severe duty" grades, ACDelco provides a quality replacement, sometimes with better coatings for corrosion resistance.
- Dynamic Friction & BBB Industries: These brands provide quality, direct-fit replacements that serve as reliable alternatives to other mainstream brands.
Performance Upgrade Calipers
If you tow with your Nitro, live in a mountainous area, or simply want improved braking performance and appearance, these are excellent choices.
- Powerstop: Powerstop is known for its complete brake kits, which often include red powder-coated calipers, drilled & slotted rotors, and carbon-fiber ceramic pads. This is a great bolt-on upgrade for improved heat dissipation and braking power, especially for a heavier vehicle like the Nitro.
Value & Specialty Options
- Cardone: While widely known for remanufactured parts, Cardone also offers new calipers. Quality can sometimes be inconsistent with their remanufactured lines, with some users reporting issues with hardware or finish. However, their new products provide a budget-friendly option.
- Crown Automotive: Specializing in Jeep parts (the Nitro shares its platform with the Jeep Liberty), Crown offers OEM-quality replacement parts that are a direct fit for your vehicle.
Common Ordering Mistakes for the Dodge Nitro
- Front vs. Rear: Calipers are specific to the front or rear axle. They are not interchangeable.
- Left vs. Right: Calipers are side-specific. The bleeder screw must be on the top when installed to allow air to be properly bled from the system.
- With or Without Bracket: Some calipers are sold "loaded" with a new mounting bracket and hardware, while others are sold as just the caliper body. If your caliper slide pins are seized in the bracket, it's best to buy a loaded caliper. 🎬 See this step-by-step walkthrough for replacing front Nitro calipers and rotors.
Frequently Asked Questions (FAQ)
Should I replace brake calipers in pairs?
Yes, it is always recommended to replace calipers in pairs (both front or both rear). This ensures even braking performance and prevents the vehicle from pulling to one side. Replacing only one can lead to unbalanced braking as the new caliper will function more efficiently than the old one on the other side.
Do new calipers come with hardware?

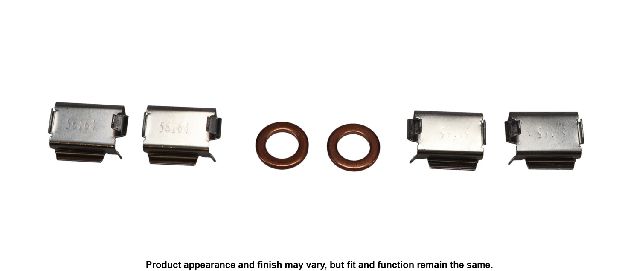

It varies. Many new aftermarket calipers come with new slide pins, banjo bolts, and copper sealing washers. Some "loaded" calipers also include the mounting bracket and new pad abutment clips. Always check the product description to see what's included to avoid a second trip to the parts store.
What is a "phenolic" vs. "steel" piston?
The piston is the part inside the caliper that pushes the brake pad. Steel pistons are strong and durable. Phenolic (a type of resin composite) pistons are less prone to rust and transfer less heat to the brake fluid, which can help prevent fluid boil. For a daily-driven Dodge Nitro, either type is acceptable, and both are used by OEM and aftermarket manufacturers.
Is it difficult to replace a Dodge Nitro caliper myself?
Replacing a caliper is a moderately difficult job for a DIY mechanic. While the unbolting and re-bolting is straightforward, the most critical and challenging part is properly bleeding the brakes afterward to remove all air from the system. If you are not comfortable with the brake bleeding process, it is best to have the work done by a qualified mechanic.
🎬 Learn how to properly bleed your brakes after a caliper replacement.Helpful Videos
Technical Specifications
OEM Part Numbers: 68003707AA 68003697AA 68003775AA 68003774AA
The 2007-2011 Dodge Nitro uses single-piston floating calipers on both the front and rear axles. The rear brakes incorporate a 'drum-in-hat' design for the parking brake mechanism. New calipers often come with M10x1.0 inlet and bleeder port sizes.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
