Dodge Nitro 4.0L V6 Engine Timing Belt and Water Pump Replacement Guide (2007-2011)
This guide is for Dodge Nitro models with the 4.0L V6 engine ONLY, which uses a timing belt.
- This guide is ONLY for the 2007-2011 Dodge Nitro with the 4.0L V6 engine; the 3.7L V6 has a timing chain.
- The 4.0L V6 is an interference engine; a broken timing belt will cause severe engine damage.
- Replace the timing belt every 104,000 miles as recommended by the manufacturer to prevent failure.
- Always replace the timing belt, tensioners, idlers, and water pump together as a complete kit.
Does My 2007-2011 Dodge Nitro Have a Timing Belt or a Timing Chain?
This is the most important question for any 2007-2011 Dodge Nitro owner. The answer depends on which engine your vehicle has.
- If you have the 3.7L V6 engine: Your engine uses a metal timing chain. Timing chains are designed to last the life of the engine and do not have a scheduled replacement interval. This guide does not apply to your vehicle.
- If you have the 4.0L V6 engine: Your engine uses a rubber timing belt. This belt requires replacement at regular intervals to prevent engine failure. The recommended service interval is every 104,000 miles. This guide is for you. 🎬 Watch: Full step-by-step timing belt replacement for the 4.0L V6
Warning for 4.0L V6 Owners
The 4.0L V6 is an interference engine. If the timing belt breaks, the pistons will very likely hit the valves, causing catastrophic internal engine damage that can cost thousands to repair. Do not ignore the recommended replacement interval.
Symptoms of a Failing Timing Belt or Water Pump
Look out for these warning signs. Addressing them early can save your engine.
🎬 See this video guide on identifying a failing water pump- Ticking or Rattling Noises: A high-pitched squeak or a rattling sound coming from the front of the engine can indicate a problem with the belt, its tensioner, or the water pump bearing.
- Engine Overheating: If your temperature gauge starts climbing, it could be a sign that the water pump is failing and no longer circulating coolant effectively.
- Coolant Leaks: Puddles of green or orange fluid under the front of your Nitro can mean the water pump's internal seal has failed. Look for drips coming from a small 'weep hole' on the pump body.
- Poor Engine Performance: If the belt has stretched or jumped a tooth, the engine's timing will be off. This can cause rough idling, hesitation, and a loss of power.
- Check Engine Light: Camshaft or crankshaft position sensor codes (like P0016, P0017, P0340) can sometimes be triggered by a timing belt issue.
Choosing the Right Aftermarket Timing Belt Kit

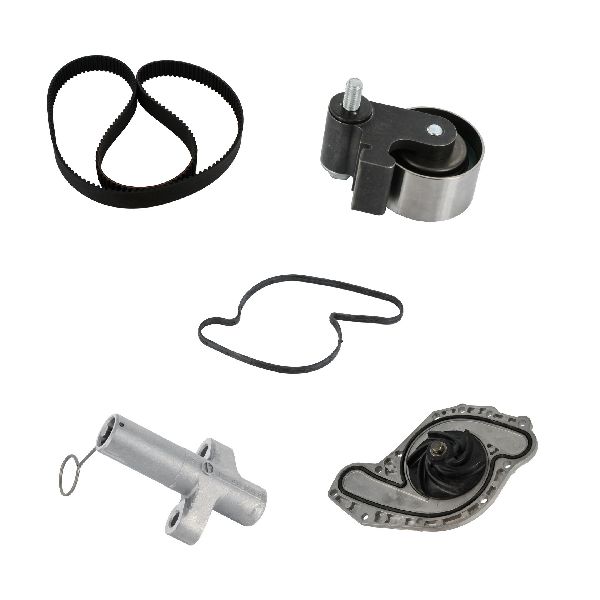

When replacing the timing belt, it is critical to replace all related components at the same time. A complete kit includes the belt, tensioner, idler pulleys, and a new water pump with its gasket. Since the water pump is driven by the timing belt, replacing it at the same time saves you from paying for the same expensive labor charge twice.
Brand Quality: Continental vs. Gates vs. GMB
For a critical job like this, brand quality matters. While OEM Mopar parts are an option, high-quality aftermarket kits from reputable brands offer reliable performance.
- Continental and Gates: Both are top-tier, well-respected manufacturers of timing belts and components. They are known for producing kits that meet or exceed OEM specifications. Many professional mechanics trust and use these brands daily. You can be confident choosing a complete kit from either Gates or Continental.
- GMB: GMB is a well-known Japanese manufacturer, often recognized for its water pumps. They also offer complete timing kits. While generally considered a quality aftermarket option, some user reviews are mixed. For peace of mind on a critical part like a timing belt, sticking with a specialist like Gates or Continental is often the safest bet.
Pro Tip: Always buy a complete kit that includes the water pump. The main cost of this job is the labor required to access the belt. Replacing the pump at the same time is a smart investment.
Estimated Replacement Costs
The cost for a timing belt and water pump replacement can vary by location and shop. The majority of the cost is labor due to the complexity of the job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit (Continental, Gates, GMB) | $268 - $421 |
| Shop Labor | $340 - $500 |
| Total Professional Job | $610 - $920 |
Frequently Asked Questions (FAQ)
Why do I have to replace the water pump with the timing belt?
On the Dodge Nitro 4.0L V6, the timing belt drives the water pump. The labor to access these parts is the same. If the old water pump fails after you've just replaced the belt, you will have to pay for the entire labor cost again. Water pumps have a similar service life to timing belts, so replacing them together is standard practice and highly recommended.
What happens if I don't replace my timing belt?
If the timing belt is not replaced, it will eventually break. Because the 4.0L V6 is an interference engine, a broken belt will cause the pistons to smash into the engine valves, leading to catastrophic and very expensive engine damage. The cost of repair often exceeds the value of the vehicle.
Are there any recalls for the Dodge Nitro timing belt?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls for the timing belt or water pump on the 2007-2011 Dodge Nitro. Recalls for this vehicle were issued for other items like the airbag emblem and electrical modules.
Can I replace the timing belt myself?
This is an advanced, high-difficulty repair. It requires special tools, significant disassembly of the engine, and precise knowledge to set the engine timing correctly. 🎬 Watch: How to properly set the timing on your Nitro An error can destroy the engine. For most DIY mechanics, this job is best left to a professional repair shop.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4792353
Engine Application: 4.0L SOHC V6. Recommended Replacement Interval: 104,000 Miles. Engine Type: Interference.
