Ford Crown Victoria Windshield Washer Pump Guide for 2007-2011 Models
A clear windshield is critical for safety; here’s what to know when your washer pump fails.
- A failed washer pump is a common, low-cost fix for the 2007-2011 Crown Victoria.
- Aftermarket pumps from brands like Trico offer comparable performance to OEM for less money.
- Replacement is a simple DIY job that takes less than an hour with basic tools.
- Always check for simple issues like clogs or blown fuses before replacing the pump.
Is Your Crown Victoria's Washer Pump Failing?
A non-functional windshield washer system is a common issue on the 2007-2011 Crown Victoria, but it's usually a simple and inexpensive fix. The first sign of trouble is when you activate the switch and nothing happens, or you only get a weak dribble of fluid. Before you assume the pump is dead, there are a few things to check.
Common Symptoms of a Bad Washer Pump
- No Fluid Spray: You press the button, the wipers move, but no fluid comes out.

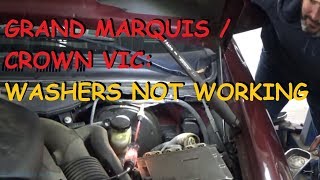

- Pump Motor is Silent: Have a helper activate the switch while you listen near the washer fluid reservoir. If you hear no humming or whirring sound, the pump motor is likely dead or not receiving power. 🎬 Watch: Troubleshooting a washer pump that does not work
- Pump Motor Hums, But No Fluid: If you can hear the pump running but no fluid sprays, the issue could be a clog in the system, a disconnected hose, or an internal failure in the pump itself.
- Leaking Fluid: You may notice a puddle of washer fluid under the front of the car, 🎬 See this walkthrough on replacing the washer pump assembly which could indicate a cracked reservoir or a bad seal where the pump enters the tank.
Check for Simple Fixes First
Before buying a new pump, check the basics. Make sure the reservoir is filled with fluid. Use a small pin to clear any debris from the washer nozzles on the hood. Also, check for disconnected or cracked hoses between the pump and the nozzles. Sometimes, the filter screen at the pump's intake gets clogged with gunk from old fluid and needs to be cleaned.
Choosing the Right Aftermarket Pump
For a vehicle like the Crown Victoria, you don't need to spend a lot of money on a factory OEM part from Ford. The original Motorcraft pumps are reliable, but aftermarket brands like Trico offer a very similar level of quality and performance for a lower price. Since the washer pump is a simple component and not critical to the engine's operation, a quality aftermarket pump is a smart, cost-effective choice for most owners. The installation is identical, and the performance difference is unnoticeable for daily driving.
Replacement Cost
Replacing the washer pump on a 2007-2011 Crown Victoria is one of the more affordable repairs you can make. The parts are inexpensive, and if you do it yourself, you can save a significant amount on labor.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $28 - $47 |
| New Aftermarket (Trico) Part | $27 - $29 |
| Shop Labor | $50 - $100 |
| Total DIY Cost (Aftermarket) | $27 - $29 |
| Total Shop Cost (Aftermarket) | $77 - $129 |
DIY Installation Tip
Replacing the pump is a straightforward job that most DIY mechanics can handle in under an hour. 🎬 Watch: Step-by-step Crown Vic washer pump replacement guide To make it easier, you'll need to remove the air filter box to get clear access to the reservoir. Before you pull the old pump out of the reservoir, have a bucket ready to catch the remaining washer fluid. The pump is simply press-fit into a rubber grommet on the tank. Wiggle the old one out, press the new one in, reconnect the electrical plug and fluid hose, and you're done.
Frequently Asked Questions
Are there any recalls for the washer pump on this car?
No, there are no specific recalls for the windshield washer pump on the 2007-2011 Ford Crown Victoria. Searches of the NHTSA database show recalls for wiper motors on other Ford models, but not for the washer pump on the Crown Victoria.
How do I know if it's the pump or just a blown fuse?
If you hear absolutely nothing when you press the washer button, a fuse could be the problem. However, on many Crown Victoria models, the washer pump shares a circuit or a fusible link with the wiper motor. If your wipers work but the pump doesn't, the fuse is likely okay, pointing more directly to a failed pump or a wiring issue at the pump itself.
Can I just replace the motor, or do I need the whole assembly?
The windshield washer pump is sold as a single, sealed unit that includes the motor. You cannot replace just the motor. The entire pump assembly must be replaced, but it is an affordable and readily available part.
My new pump is installed, but the spray is weak. What's wrong?
If you have a new pump but the pressure is still low, check for clogs in the lines or at the nozzles on the hood. You can disconnect the hose from the pump and blow compressed air through it to clear any blockages. Also, ensure the hose is securely attached to the pump outlet; if it's loose, it can leak and lose pressure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8C3Z-17664-A 7R3Z-17664-A
The pump is a small, 12V DC motor that press-fits into the bottom of the windshield washer fluid reservoir. It has one electrical connector and one fluid outlet.
