A Guide to Replacing Ignition Coils on Your 2007-2011 Ford Edge
Engine misfiring or running rough? Your ignition coils might be the problem, but there's a critical issue with 2007-2008 models you need to know about before you buy.
- For 2007-2008 models, a bad coil can destroy the engine computer (PCM), a very expensive repair.
- Due to the PCM failure risk, using OEM Motorcraft coils is the safest and most recommended option.
- Always replace all six coils and spark plugs at the same time to avoid repeated labor costs.
- The three rear coils are under the intake manifold and are much harder to replace than the front three.
Is Your Edge Running Rough? It Could Be an Ignition Coil
If your 2007-2011 Ford Edge has started to run poorly, a failing ignition coil is a likely culprit. Common signs include a rough idle, engine shaking or vibrating, a flashing check engine light, and a noticeable loss of power when you accelerate. These symptoms mean one or more of your engine's cylinders aren't firing correctly, a condition known as a misfire.
🎬 Watch: Step-by-step misfire diagnosis and spark plug change guide.A CRITICAL Warning for 2007-2008 Ford Edge Owners

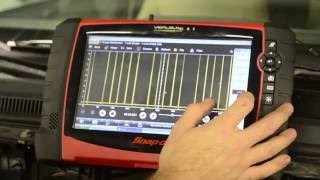

For Edge models built on or before March 1, 2008, there is a known issue where a failing ignition coil can permanently damage the engine's main computer, called the Powertrain Control Module (PCM). This is documented in Ford's Technical Service Bulletin (TSB) 13-4-17. 🎬 Watch: See how a melted coil can destroy your PCM. A bad coil can short out and send a voltage spike back to the PCM, frying its internal circuits. This turns a relatively small repair into a very expensive one, as the PCM itself can cost over $1,000 to replace. Because of this risk, using high-quality replacement coils is extremely important.
Choosing the Right Aftermarket Ignition Coils
When replacing ignition coils on your Edge, you have a choice between Original Equipment (OEM) and various aftermarket brands. Given the potential for PCM damage on earlier models, the quality of the replacement part is critical.
Brand Quality Tiers for the Ford Edge
- Tier 1: OEM (Motorcraft)
For this specific vehicle, especially the 2007-2008 models, Motorcraft is the most recommended brand by experienced mechanics and owners. Using the OEM part (Part #: 7T4Z-12029-E) minimizes the risk of the coil failing and damaging the expensive PCM. While they cost more than aftermarket options, they are the safest choice. - Tier 2: Reputable Aftermarket (Delphi, NGK, Standard, Hitachi)

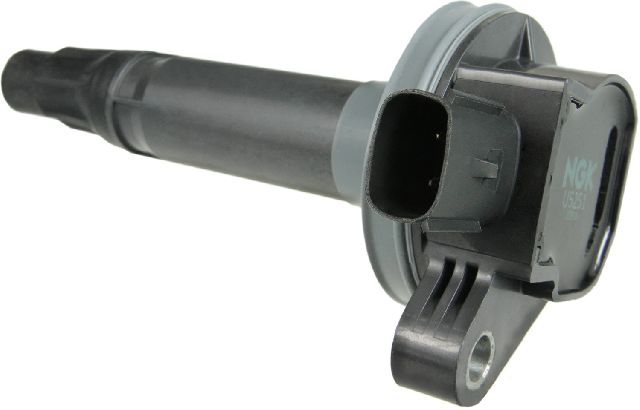

Brands like Delphi, NGK, Standard Ignition, and Hitachi are well-known OEM suppliers for many car manufacturers and generally have a reputation for quality. They are a viable alternative to Motorcraft, often at a lower price point. NGK, in particular, is noted for using high-grade materials to improve on OE designs. - Tier 3: Economy Brands (DriveWire, Spectra, Walker, Holstein)

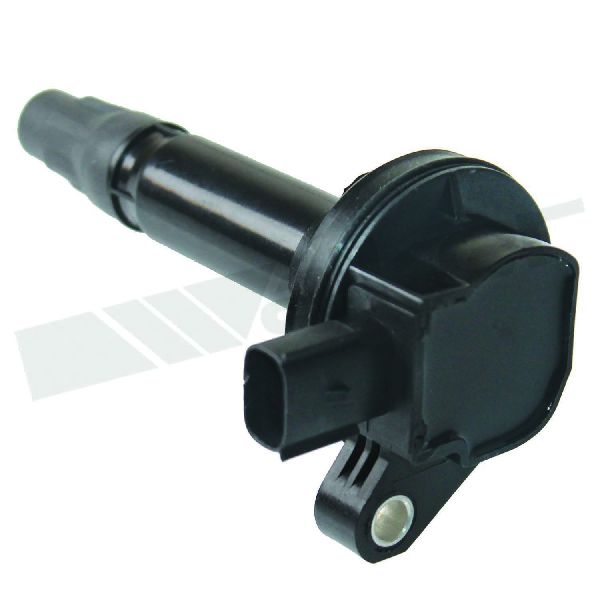

This category includes a wide range of budget-friendly options. While brands like Walker Products and Holstein market their parts as meeting or exceeding OE standards, user reviews are mixed and less consistent. For many vehicles, these parts are perfectly adequate. However, due to the risk of PCM failure in the Edge, using economy-grade electronic parts is a gamble that could lead to a much more expensive repair down the road. - Performance Brands (Granatelli)
Granatelli offers high-voltage coils marketed for increased performance. However, reviews are mixed, with some users reporting misfires or premature failure. For a daily-driven vehicle needing a reliable repair, sticking with OEM or top-tier aftermarket brands is the recommended approach.
Pro Tip: Always replace all six ignition coils at the same time, especially if your Edge has over 80,000 miles. Coils are subjected to the same heat and wear, so when one fails, the others are often not far behind. It's also the perfect time to replace your spark plugs.
How Much Does an Ignition Coil Replacement Cost?
The cost can vary significantly based on the parts you choose and whether you do the job yourself. The rear three coils are difficult to access, requiring the removal of the upper intake manifold, which increases labor time.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Coils (Set of 6) | $350 - $480 |
| New Premium Aftermarket Coils (Set of 6) | $200 - $350 |
| New Economy Aftermarket Coils (Set of 6) | $100 - $200 |
| Shop Labor Cost (All 6 Coils) | $150 - $250 |
| Potential Related Cost: PCM Replacement | $1000 - $1500+ (Parts & Labor) |
Frequently Asked Questions (FAQ)
Can a bad ignition coil really damage my engine computer?
Yes, specifically on 2007-2008 Ford Edge models. A failing coil can short circuit and send a high voltage charge back to the Powertrain Control Module (PCM), destroying its internal driver circuits. This is a well-documented issue (TSB 13-4-17) and is the main reason why using high-quality Motorcraft or top-tier aftermarket coils is strongly recommended.
Do I have to replace all six ignition coils at once?
It is highly recommended. All coils experience the same conditions, so if one has failed due to age and heat, the others are likely to fail soon. Replacing them all at once saves you from repeating the labor-intensive process, especially for the rear coils which are difficult to access.
Is it hard to replace the rear ignition coils on a Ford Edge?
Yes, it is significantly harder than replacing the front three. The rear coils are located underneath the upper intake manifold. To access them, you must remove the manifold, which is a multi-step process. While it is feasible for an experienced DIYer, it requires more time and tools than a simple coil swap. 🎬 See this walkthrough for replacing all six coils and plugs. The front three coils, however, are easily accessible and can be changed in minutes.
What are the misfire codes for a Ford Edge?
A general random misfire code is P0300. Specific cylinder misfires are indicated by codes P0301 through P0306, where the last digit corresponds to the cylinder number. The check engine light may also be accompanied by ignition coil circuit codes P0351 through P0356, which are specifically mentioned in TSB 13-4-17.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7T4Z-12029-E DG-520 7T4Z-12029-F CY01-18-100A
Coil-on-Plug (COP) design. The 3.5L V6 engine uses six individual ignition coils, one for each cylinder. Three are easily accessible on the front of the engine, and three are located under the upper intake manifold at the rear.
