A Ford Mechanic's Guide to the 2007-2011 Explorer Exhaust Manifold Gasket Set
That ticking noise from your Explorer's engine is likely a leaking exhaust gasket or cracked manifold—here's how to fix it right.
- The most common symptom is a ticking noise that is louder when the engine is cold.
- Expect to deal with broken exhaust manifold studs; this is a very common complication that increases repair time and cost.
- Always inspect the manifold for cracks when it is removed; it is often the source of the leak, not just the gasket.
- For a durable repair, use a high-quality Multi-Layer Steel (MLS) gasket and always install new studs and nuts.
Is Your Explorer Making a Ticking Noise?
The most common sign of a failing exhaust manifold gasket on the 4th generation Explorer is a distinct ticking or puffing sound coming from the engine bay. This noise is often loudest when the engine is cold and may quiet down or disappear as the engine warms up. This happens because the heat causes the metal manifold to expand, sometimes temporarily closing the small gap created by the bad gasket. Other signs include smelling exhaust fumes in the cabin, a check engine light, and a noticeable decrease in fuel economy.
A Word of Warning: Cracked Manifolds & Broken Studs
On these Explorers, especially those with the 4.6L V8 engine, the exhaust manifold itself is known to crack, causing the same ticking noise as a bad gasket. Furthermore, the bolts (or studs) that hold the manifold to the engine are notorious for rusting and breaking off during removal. Be prepared for this complication, as it can turn a simple gasket replacement into a much more difficult job that requires drilling out the broken studs.
Choosing the Right Aftermarket Gasket Set
When you're shopping for a replacement, you'll see different types and brands. For a long-lasting repair on your Explorer, a Multi-Layer Steel (MLS) gasket is the best choice. These gaskets are durable and designed to handle the heat and pressure of the exhaust system.
- Premium Brands (OEM Quality): Brands like Reinz (Victor Reinz) and Fel-Pro are trusted by professional mechanics. They are known for their high-quality materials and precise fit, often using MLS technology to ensure a reliable, long-lasting seal.

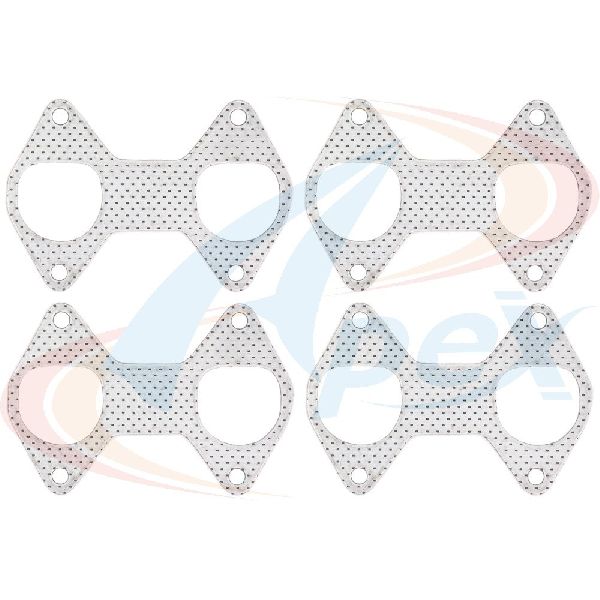

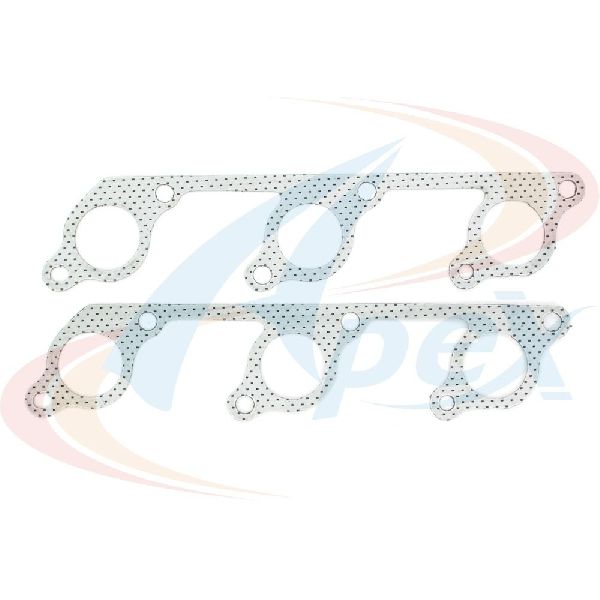

- Standard/Value Brands: A brand like Apex offers a more budget-friendly option. While functional, they may not offer the same level of material technology or longevity as the premium brands. For a repair this labor-intensive, investing in a premium gasket is often worth it to avoid doing the job twice.
Pro Tip: Always replace the manifold studs and nuts when you replace the gasket. The old hardware has been weakened by thousands of heat cycles. Using new hardware and applying a small amount of high-temperature anti-seize compound on the threads will ensure proper torque and make any future repairs much easier.
Cost to Replace the Exhaust Manifold Gasket
The cost can vary widely based on whether you just need a gasket or if the manifold itself is cracked and needs replacement. The biggest variable is shop labor, especially if they run into broken studs.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Gasket Set | $10 - $82 |
| Shop Labor (Gasket Only) | $285 - $420+ |
| Shop Labor (Manifold & Gasket) | $110 - $311+ |
| Total Job (Manifold & Gasket) | $486 - $752+ |
Note: Labor costs can increase significantly if studs break during removal.
Frequently Asked Questions
Should I replace the exhaust manifold at the same time as the gasket?
Inspect the manifold very carefully for cracks once it's removed. Given how common it is for them to crack on the 2007-2011 Explorer, if you see any fractures, you must replace it. If the job is being done due to a leak, it's often the manifold that has failed, not just the gasket.
Do I need to replace the studs and nuts?
Yes, absolutely. It is highly recommended to use a new set of studs and nuts. The old ones are prone to rust and fatigue and may not torque down correctly, leading to another leak.
What makes this repair so difficult?
The main difficulty is the high likelihood of the exhaust manifold studs breaking off in the cylinder head. Extracting these broken studs requires patience, the right tools (like a welder or drill-out kits), and can add hours to the job. Access can also be tight, sometimes requiring the removal of other components like the steering shaft or front driveshaft (on 4WD models).
Can I reuse the old gasket?
No. Exhaust manifold gaskets are a one-time-use part. They crush and form a seal during installation and will not seal properly if reinstalled.
Technical Specifications
OEM Part Numbers: 7L1Z-9448-A 7L1Z-9448-B 5L2Z-9448-A
Gasket material is typically Multi-Layer Steel (MLS) or high-density fiber on a perforated steel core. Set should include gaskets for both manifolds.
