2007-2011 Hyundai Santa Fe Brake Light Switch Failures and Solutions
Understanding the common and often confusing issues caused by a failing brake light switch in your Santa Fe.
- First, check if your Santa Fe is covered by Hyundai's safety recall (NHTSA #13V113000) for a free replacement.
- A faulty switch causes many issues, including ESC lights, inability to shift from Park, and no-start conditions.
- This is a very simple and inexpensive DIY repair, typically taking less than 30 minutes.
- Before replacing the switch, check the small plastic stopper on the brake pedal arm, as its failure causes similar symptoms.
Is Your Santa Fe Acting Strange? It Could Be the Brake Light Switch
If your 2007-2011 Hyundai Santa Fe is experiencing a range of seemingly unrelated electrical problems, a faulty brake light switch is a likely culprit. This small, inexpensive part was the subject of a major safety recall and can cause a surprising number of issues when it fails. Before you suspect more complex computer problems, it's worth investigating this common failure point.
Major Safety Recall: Check Your VIN First
Hyundai issued a massive safety recall (NHTSA Campaign ID: 13V113000) that specifically covers the stop lamp switch on 2007-2011 Santa Fe models. A malfunctioning switch can prevent your brake lights from working, or prevent cruise control from disengaging, increasing the risk of a crash. Before purchasing a part, contact a Hyundai dealer or use Hyundai's online recall checker with your Vehicle Identification Number (VIN) to see if your vehicle is eligible for a free replacement. The recall service replaces the faulty switch at no cost to you.
Symptoms of a Failing Brake Light Switch
A bad brake light switch on this generation of Santa Fe can manifest in several ways. Because the switch communicates with multiple systems, you might not immediately connect the symptoms to a brake system component.
- Brake Lights Don't Work or Stay On: The most obvious symptom is your brake lights not illuminating when you press the pedal, or staying on even when the car is off.
- ESC OFF Light Illuminated: The Electronic Stability Control (ESC) system relies on the brake signal. A faulty switch can cause the "ESC OFF" warning light to appear on your dashboard.
- Cruise Control Won't Engage or Disengage: The switch is responsible for deactivating cruise control when you brake. If it's faulty, your cruise control may not work at all.

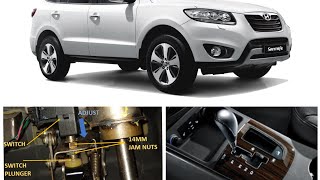

- Unable to Shift Out of Park: 🎬 See how a bad switch causes a stuck gear lever. The shift interlock, a safety feature that prevents you from shifting out of Park without your foot on the brake, will not receive the correct signal.
- Push-Button Start Issues: On models so equipped, the vehicle may not start because the system doesn't detect that the brake pedal is depressed.

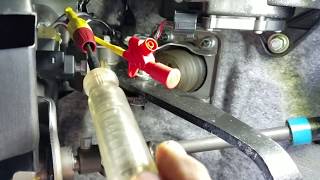

- Check Engine Light: Diagnostic Trouble Codes (DTCs) like P0504 (Brake Switch A/B Correlation) or P0571 (Cruise Control/Brake Switch A Circuit Malfunction) may be stored in the vehicle's computer, triggering the check engine light. 🎬 Watch a diagnostic video on fixing the P0504 trouble code.
Choosing the Right Aftermarket Replacement
If your vehicle is not covered by the recall or you prefer to do the repair yourself, you have several aftermarket options. Given the history of OEM switch failures and the critical safety function of this part, this is not a component where you want to choose the absolute cheapest option. Quality is important.

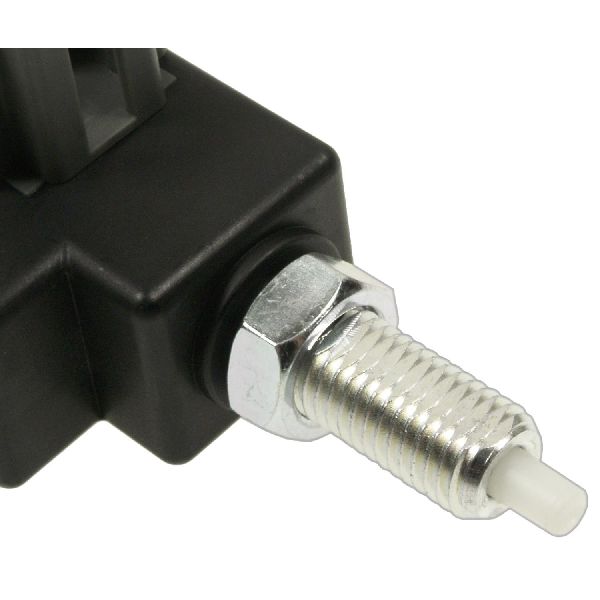

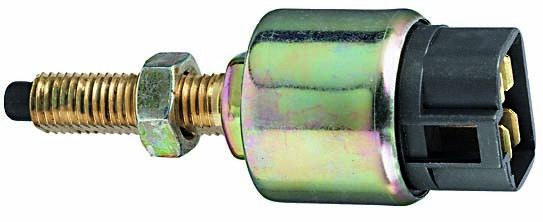

The aftermarket brands available for your Santa Fe include Beck Arnley, Facet, Holstein, Rostra Powertrain, Standard Ignition, True Tech, and Vemo.
- Premium Aftermarket (e.g., Standard Ignition, Beck Arnley): Brands like Standard Ignition (SMP) and Beck Arnley have a long-standing reputation for producing parts that meet or exceed OEM specifications. Beck Arnley, in particular, is known for sourcing parts from various manufacturers, sometimes even the original OEM supplier. These are a solid choice for reliability.
- Standard Aftermarket (e.g., Holstein, Facet): These brands offer a balance of quality and value and are generally considered reliable for a component like a switch.
- Value-Oriented Brands: While more budget-friendly, the long-term durability of the internal contacts might be a concern, especially given the known issues with this specific part on Hyundais.
Pro Tip: The OEM part number for this switch is 93810-3K000. When shopping, cross-referencing this number can ensure you are getting an exact-fit replacement. Given the low cost of even the genuine Hyundai part (often under $20), opting for the OEM switch is a very reasonable choice for peace of mind.
| Part Type | Estimated Price Range |
|---|---|
| New OEM (Hyundai) | $12 - $17 |
| New Aftermarket | $11 - $34 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Is replacing the brake light switch a difficult job?
No, this is a very easy repair for most DIYers. The switch is located at the top of the brake pedal arm under the dashboard. It typically involves disconnecting the electrical connector, unscrewing the old switch, and installing the new one. The entire process usually takes less than 30 minutes.
🎬 Follow this step-by-step guide to replace your brake light switch.Do I need to bleed my brakes after replacing the switch?
No. The brake light switch is a purely electronic sensor. It does not interact with the hydraulic brake fluid, so no bleeding is necessary.
My brake lights are stuck on. Could it be something other than the switch?
Yes. On many Hyundai vehicles, there is a small plastic or rubber stopper pad on the brake pedal arm that physically presses the switch's plunger. Over time, this stopper can become brittle and break or fall out. If this happens, the plunger is no longer depressed when the pedal is at rest, causing the brake lights to stay on. Check for this small, failed part before replacing the entire switch.
How do I know if my car was part of the recall?
You can check the recall status of your specific vehicle by entering your 17-digit VIN on the NHTSA's website (nhtsa.gov/recalls) or Hyundai's dedicated recall site. You can also call any Hyundai dealership with your VIN and they can look it up for you.
Helpful Videos
Technical Specifications
OEM Part Numbers: 93810-3K000 93810-2H000 93810-38100 93810-38110
4-Pin Connector, Plunger-style mechanical switch, Mounts to brake pedal bracket.
