A Guide to the Engine Oil Pan for the 2007-2011 Volkswagen Passat
Dealing with a leak or a stripped drain plug on your B6 Passat? Here’s what you need to know.
- The most common failure is not impact damage, but stripped drain plug threads from over-tightening.
- Replacing the entire pan is often the best fix for stripped threads.
- There is no pre-made gasket; a special RTV silicone sealant must be used for installation.
- Before replacing the pan, confirm the leak isn't from a higher location like the valve cover gasket.
Is Your Passat's Oil Pan Leaking?
The oil pan on the 2007-2011 Volkswagen Passat (B6 chassis) is typically made of cast aluminum. While durable, it's located at the lowest point of the engine, making it vulnerable to damage from road debris, speed bumps, and potholes. However, the most common issue for these models isn't impact damage, but problems with the drain plug.
The Dreaded Stripped Drain Plug
A very frequent problem on this generation of Passat is a stripped oil drain plug or, worse, stripped threads in the oil pan itself. The original drain plugs often have a Torx head that can be easily damaged. Over-tightening the plug during an oil change is a common mistake that can ruin the threads in the pan's steel insert. Once the threads are gone, the plug won't seal properly, leading to persistent leaks. In many cases, replacing the entire oil pan is the most reliable and permanent solution for stripped threads.
Symptoms of a Failing Oil Pan
- Oil Puddles Under the Car: This is the most obvious sign. A puddle of brownish or black fluid under your engine is a clear indicator of an oil leak.
- Low Oil Level Warning Light: If the pan is leaking, your engine oil level will drop, which may trigger a warning light on your dashboard.
- Visible Damage or Wetness: Look under the engine. If the oil pan is wet with oil, dented, or cracked, it needs attention.
- Burning Oil Smell: Oil leaking from the pan can drip onto the hot exhaust system, creating a distinct burning smell.
- Stripped Drain Plug: If your drain plug just spins and never tightens during an oil change, the threads in the pan are likely stripped.
Pro Tip: Confirm the Leak Source
Before you assume the oil pan is the problem, make sure the leak isn't coming from a higher point on the engine. On VWs, oil can leak from the valve cover gasket, camshaft seals, or cam chain tensioner gasket and drip down, making it look like an oil pan leak. Clean the engine area with a degreaser and then check for the highest point of the leak after a short drive.

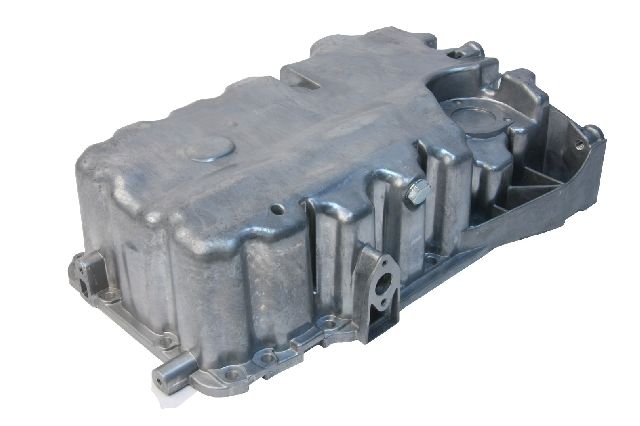

Choosing the Right Aftermarket Oil Pan
You don't need to pay dealership prices for a new oil pan. Aftermarket parts offer a quality alternative, and some even improve on the original design. For the Passat, these pans are typically made of steel or aluminum and do not use a traditional gasket; they are sealed with a special RTV silicone sealant.
| Brand Tier | Brands | What to Expect |
|---|---|---|
| Value & Reliability | Dorman, ATP | Dorman is a well-known aftermarket brand that sometimes offers "OE FIX" parts that improve on factory weaknesses. They are a dependable choice for daily drivers. ATP is another brand that has received positive feedback in forums for being well-made, sometimes with thicker steel than the original part. |
| European Specialist | URO Parts, Vaico | URO Parts specializes in parts for European vehicles and is often considered a good alternative to OEM. Vaico is another option in this category. However, some online discussions categorize both as lower-tier, so experiences can vary. One user reported an issue with a URO pan's sensor mount, highlighting the importance of careful installation. |
| Economy Choice | Spectra | Spectra often provides a more budget-friendly option. While generally serviceable, some users have noted that their pans may use thinner materials or less robust drain plug designs compared to other aftermarket brands. |
Frequently Asked Questions
Are there any recalls on the 2007-2011 Passat oil pan?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for a faulty engine oil pan on the 2007-2011 Volkswagen Passat.
Can I replace the Passat oil pan myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The process involves draining the oil, removing about 20 T30 Torx bolts, and carefully prying the old pan off. The most critical steps are thoroughly cleaning the old sealant from the engine block and applying a new, even bead of oil-resistant RTV sealant. The job requires jack stands, a good socket set, a scraper, and a torque wrench. Estimated time is 2-3 hours.
Does the aftermarket pan come with a new drain plug?
Most aftermarket oil pans include a new drain plug and sealing washer. This is a major benefit, especially if your original problem was a stripped plug. Some brands, like Dorman, may use a different style of plug than the original, so be aware of the tool you'll need for future oil changes.
Why is there no gasket for this oil pan?
Like the original factory part, aftermarket oil pans for this Passat are designed to be sealed using a form-in-place gasket, which is a bead of high-temperature, oil-resistant RTV silicone. When applied correctly, this creates a durable, leak-proof seal. It's critical to let the sealant cure for the recommended time (often 24 hours) before adding oil to the engine.
Technical Specifications
OEM Part Numbers: 06B103601CQ 06B103603AQ
Material: Aluminum (OEM), Steel or Aluminum (Aftermarket). Gasket Type: RTV Sealant (Form-in-place). Drain Plug Thread: M14x1.5. Includes ports for oil level sensor.
