A Guide to the Fuel Injection Throttle Body for the 2007-2012 Chevrolet Equinox
Understanding the common causes and fixes for the 'Reduced Engine Power' warning in your Equinox.
- If you have a 2008-2009 Equinox, check with a GM dealer about Special Coverage 14582 for a potential free repair before buying parts.
- You must verify your engine (3.4L V6, 2.4L I4, or 3.0L V6) to order the correct part, as they are not interchangeable between generations or engines.
- A 'relearn' procedure is required after installation to prevent a rough or high idle; this can usually be done without special tools.
- Common symptoms include the 'Reduced Engine Power' message, rough idle, and hesitation, often with DTC codes P2135 or P1516.
Is Your Equinox in 'Limp Mode'?
One of the most common and frustrating issues for 2007-2012 Chevrolet Equinox owners is a sudden warning message: "Reduced Engine Power." This message means the vehicle's main computer has detected a serious problem with a system like the electronic throttle control. To protect the engine from damage, it puts the car into a 'limp mode,' limiting your speed and acceleration. Often, the root cause is a failing fuel injection throttle body assembly.
Symptoms of a Failing Throttle Body
Besides the "Reduced Engine Power" light, a bad throttle body can cause other problems. You might notice a rough or unstable idle, where the engine RPMs jump up and down. Your Equinox may hesitate or stumble when you try to accelerate, or it might even stall completely, especially after it has warmed up. The check engine light will almost always come on, and you may also see a "Service Stabilitrak" message, as the two systems are linked.
Important: Check for Special Coverage First
General Motors issued a Special Coverage Adjustment (Number 14582) for certain vehicles, including the 2008-2009 Chevrolet Equinox. This program extends the warranty on the throttle position sensor to 10 years or 120,000 miles from the original service date. If your vehicle qualifies and shows symptoms like a rough idle and the "Reduced Engine Power" message, a GM dealer may repair or replace the throttle body at no charge. Always check with a dealer about this coverage before paying for repairs.
Common Ordering Mistake: Know Your Engine
The 2007-2012 year range covers two different generations of the Equinox with different engines. Ordering the correct throttle body is critical.
- 2007-2009 Equinox (First Generation): Most of these models use a 3.4L V6 engine. The throttle body for this engine often cross-references to OEM part numbers like 12577029 and 12609500.
- 2010-2012 Equinox (Second Generation): These models came with either a 2.4L 4-cylinder or a 3.0L V6 engine. These engines use different throttle bodies from the first generation and from each other. For example, the 3.0L V6 part often references OEM number 12616994.
Pro Tip: Always verify your engine size before ordering. It is usually printed on a sticker under the hood or on the plastic engine cover.
Choosing the Right Aftermarket Part
When your original throttle body fails and is out of warranty, you have a choice between OEM and aftermarket parts. For this specific vehicle, aftermarket quality is very reliable.

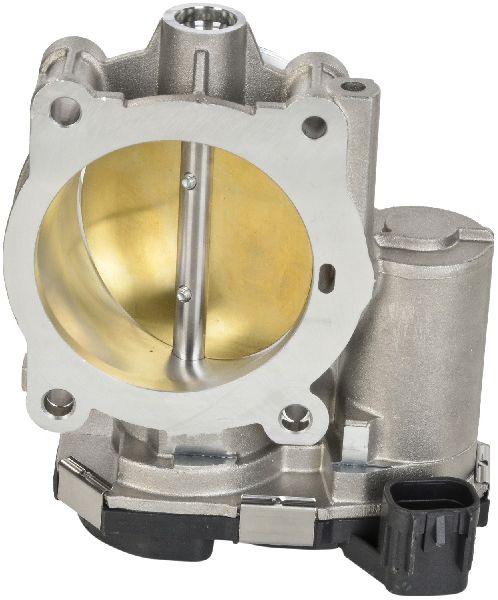

- OEM-Equivalent Brands (e.g., Bosch): Bosch was an original equipment manufacturer for many GM vehicles of this era. Choosing a Bosch aftermarket part is often the same as getting the OEM part without the dealership price tag. They are a top-tier choice for reliability.

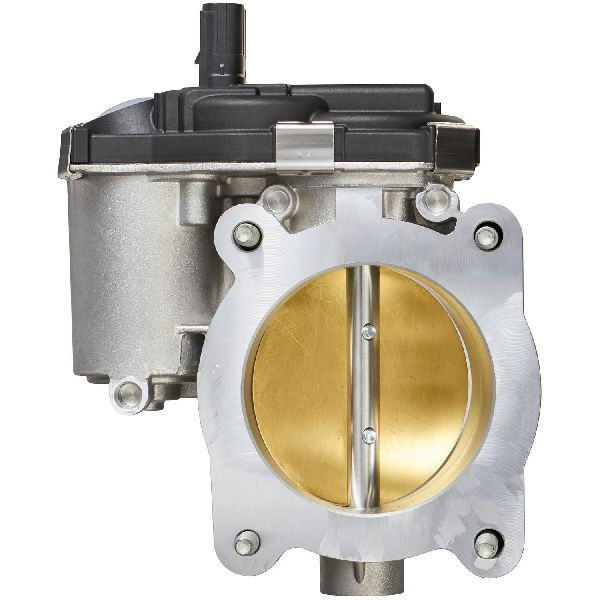

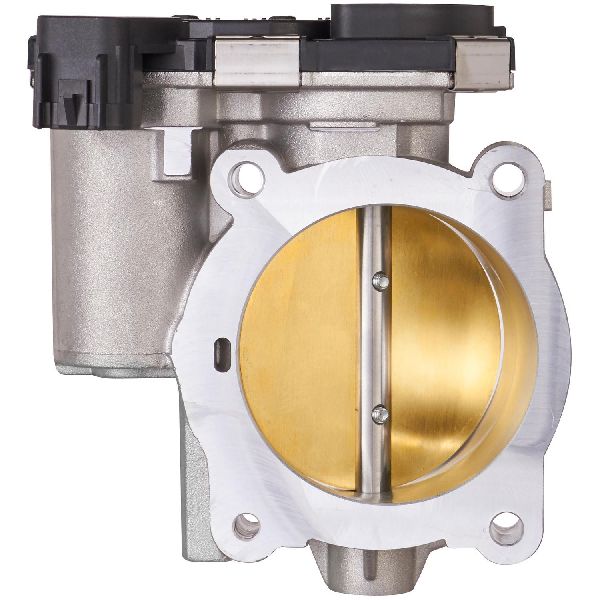

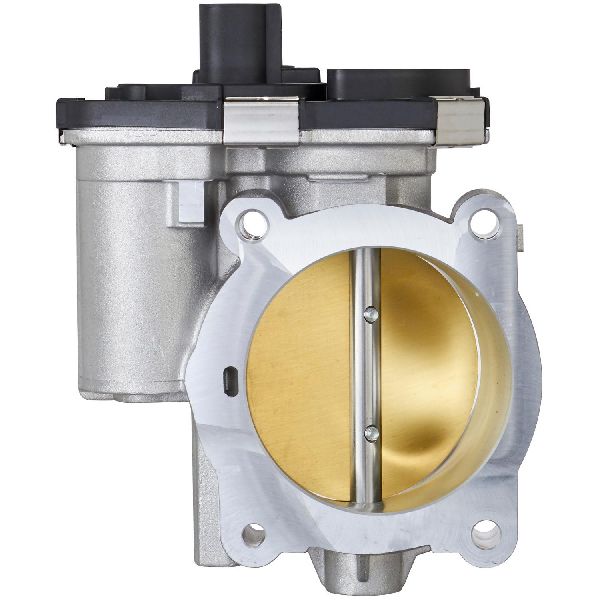

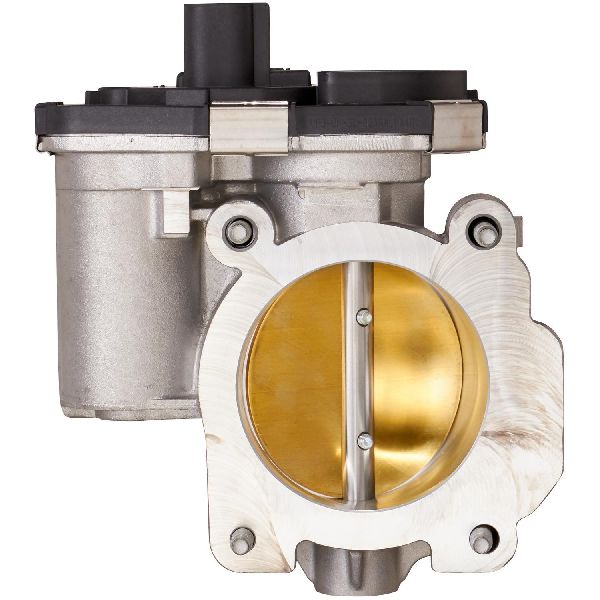

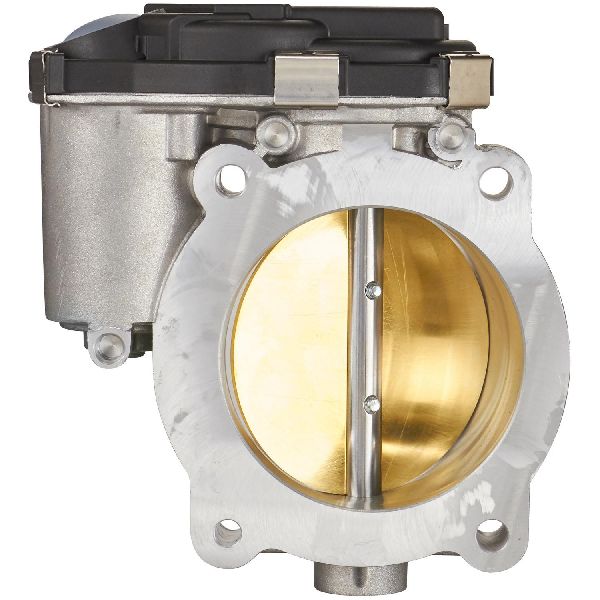

- Standard Aftermarket Brands (e.g., Spectra): Brands like Spectra offer a quality replacement that meets or exceeds original specifications. They are a dependable and cost-effective solution for getting your Equinox back on the road.
Cost of Replacing the Throttle Body Assembly
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $184.88 - $269.96 |
| New OEM | $250 - $450 |
| Used OEM | $35 - $75 |
| Shop Labor | $100 - $180 |
Don't Forget the Relearn Procedure!
After you install a new throttle body, you MUST perform a relearn procedure. The engine's computer has 'learned' the characteristics of the old, dirty part and needs to be reset to work with the new, clean one. Skipping this step will likely result in a high or rough idle. Luckily, this can often be done without a special scan tool by following a sequence of turning the ignition on and off and letting the engine idle.
Frequently Asked Questions
Can I just clean my old throttle body?
Sometimes, yes. A buildup of carbon can cause the throttle plate to stick, triggering error codes. Cleaning the throttle body bore and plate with a dedicated cleaner can sometimes solve the problem, and it's a cheap first step. However, if the electronic sensors or motor inside the unit have failed, cleaning will not help and the entire assembly must be replaced.
Is replacing the throttle body a DIY job?
For most people with basic tools, yes. The throttle body is usually easy to access after removing the air intake tube. It's typically held on by just a few bolts. The main steps are disconnecting the battery, removing the intake duct, unplugging the electrical connector, unbolting the old unit, and then installing the new one. The most important part of the job is performing the idle relearn procedure after installation.
What is the throttle body relearn procedure?
While procedures can vary slightly, a common manual method for GM vehicles involves these steps: 1) Start the engine and let it idle in Park for 3 minutes. 2) Turn the engine off and wait for 60 seconds. 3) Start the engine again and let it idle in Park for another 3 minutes. For some vehicles, a drive cycle at speeds over 40 MPH may be needed to complete the process. This allows the computer to recalibrate to the new part's idle position.
What does DTC code P2135 mean?
DTC P2135 stands for "Throttle/Pedal Position Sensor/Switch 'A'/'B' Voltage Correlation." The throttle body has two separate position sensors for safety. They should always report similar positions. If the computer sees a disagreement between the two sensors' readings, it triggers this code and often puts the engine into reduced power mode. This is one of the most common codes pointing to a faulty throttle body on a 2007-2012 Equinox.
Technical Specifications
OEM Part Numbers: 12577029 12609500 12616994 12604075
This is an electronically controlled throttle body assembly. It includes an integrated throttle position sensor (TPS) and an electric actuator motor. The connector is typically a 6-prong male blade type. The assembly is made of aluminum. Be aware that different engines across the 2007-2012 model years use physically different throttle bodies.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
