Your Complete Guide to the 2007-2012 Dodge Caliber A/C Receiver Drier
If your Caliber's A/C is blowing warm, this small but critical part could be the key to fixing it.
- You MUST replace the receiver drier any time the A/C system is opened for a repair to protect your new parts and validate warranties.
- Before ordering, you must confirm if your Caliber has a separate drier or the integrated condenser/drier assembly, which depends on the transmission type.
- This is not a DIY job for beginners; it requires special tools to handle the high-pressure refrigerant and to vacuum and recharge the system correctly.
- An aftermarket drier from a reputable brand like Denso or Four Seasons is a reliable and cost-effective choice for this maintenance part.
Is Your Caliber's A/C Failing? Check for These Symptoms
A failing A/C receiver drier doesn't always mean the part itself broke. More often, it has become saturated with moisture or clogged with debris from another failing component, like the compressor. Here are the common signs that your receiver drier needs to be replaced:
- Poor Cooling Performance: If the desiccant is saturated with moisture or the filter is clogged, refrigerant can't flow properly. You'll notice the air from your vents isn't as cold as it used to be, or it might be warm.
- Moldy or Musty Smell: When the drier can no longer absorb moisture, mold and mildew can grow inside your A/C system. This causes a noticeable bad smell when you turn on the fan.
- Rattling Noises: If the desiccant bag inside the drier breaks, the small beads can get loose. You might hear a rattling sound from the engine bay when the A/C is on. This is serious, as these beads can travel through the system and cause major blockages. 🎬 Watch: A beginner's guide to diagnosing common A/C system issues.
- Visible Refrigerant Leak: While rare, the drier itself can leak. You might see a greasy, oily residue on the canister or its fittings.
Important: Check Your Transmission Type Before Ordering!
Dodge used two different A/C receiver drier designs on the 2007-2012 Caliber, and it depends on your transmission. Ordering the wrong part is a common mistake.
- Separate Drier: Early models, and later models with a Manual Transmission or CVT (Continuously Variable Transmission), have a separate, replaceable receiver drier canister. It is typically mounted to the right front frame rail.

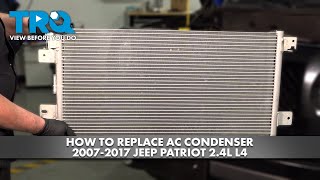

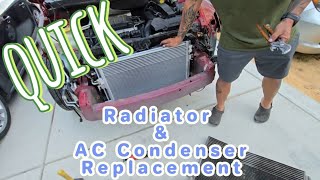

- Integrated Drier: Later model Calibers with a traditional Automatic Transmission have the receiver drier built into the A/C condenser. On these vehicles, you cannot replace just the drier. You must replace the entire condenser/drier assembly as one unit. 🎬 See this walkthrough for replacing the radiator and A/C condenser.
Always verify which setup your specific Caliber has before buying parts.
Choosing the Right Aftermarket Receiver Drier
Since the receiver drier is a maintenance part that should be replaced whenever the system is opened, an aftermarket part is a cost-effective choice. Here's a breakdown of common brands:
- Premium Tier (Denso): Denso is an OEM supplier for many automakers and is known for high-quality parts that fit and perform like the original. If you want the best quality and peace of mind, Denso is a top choice.
- Standard Tier (Four Seasons, Crown Automotive): Four Seasons is one of the largest aftermarket A/C parts suppliers and offers a good balance of quality and price. Crown Automotive specializes in parts for Chrysler/Dodge/Jeep vehicles and is a well-known option for Caliber owners.
- Budget Tier (Global Parts): Brands like Global Parts Distributors (GPD) offer a more affordable price point. While they can be a good value, some user reviews mention a higher chance of premature failure compared to premium brands.
Pro Tip: Always Replace, Never Reuse
The receiver drier should be replaced every time the A/C system is opened for service, such as when replacing a compressor or a leaking hose. The desiccant inside is exposed to air and immediately becomes saturated. A new compressor warranty will almost always be voided if you don't also install a new receiver drier.
Known Issues & Technical Service Bulletins (TSBs)
While there are no recalls for the Caliber's A/C receiver drier, Chrysler did issue TSB #24-006-07 for some 2007 models. This bulletin addresses A/C compressor damage on vehicles with manual transmissions operated in cold weather. The official repair procedure requires replacing the compressor, condenser, and the accumulator (receiver drier) at the same time, highlighting the importance of replacing these parts together.
Cost to Replace a Dodge Caliber A/C Receiver Drier
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Receiver Drier (Part Only) | $20 - $85 |
| New OEM Receiver Drier (Part Only) | $100 - $180 |
| Shop Labor (Evacuate, Install, Recharge) | $180 - $350 |
| Total Estimated Cost (Aftermarket Part) | $200 - $435 |
Costs are estimates and will vary based on your location, the specific part brand, and local labor rates. Does not include cost of integrated condenser/drier assembly if required.
Frequently Asked Questions
Can I replace the A/C receiver drier myself?
This is not recommended for most DIY mechanics. Replacing the drier requires specialized equipment to safely recover the old refrigerant from the system before opening it. After installing the new part, a vacuum pump must be used to remove all air and moisture before the system is recharged with a precise amount of new refrigerant. Failure to do this correctly will result in poor performance and can damage the new parts. This job is best left to a qualified mechanic.
How do I know if I need the integrated condenser/drier?
The most reliable way is to visually inspect your vehicle. Look at the A/C condenser (the radiator-like part at the front of the car). If you see a canister attached to the side of it, you have the integrated unit. If you have a separate canister mounted on the frame rail, you have the standalone drier. Generally, Calibers with automatic transmissions are more likely to have the integrated unit.
Do I have to replace the drier if I'm just recharging my A/C?
No. If your system is just low on refrigerant and you are topping it off without opening any lines, 🎬 Watch: How to safely recharge your A/C system at home. you do not need to replace the drier. However, if a leak is being repaired or any component is being replaced, the drier must also be replaced.
What refrigerant does the 2007-2012 Dodge Caliber use?
The Dodge Caliber uses R-134a refrigerant. The system capacity is 18 ounces (510 grams). This information is usually found on a sticker under the hood.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5106652AA 5191342AA 68004067AA
Refrigerant Type: R-134a. System Capacity: 18 oz (510g). Note: Some models have the drier integrated with the condenser (Part numbers for condenser assembly not listed).
