Dodge Nitro 2007-2012 Engine Crankshaft Position Sensor Replacement Guide
If your Nitro is stalling, has trouble starting, or the check engine light is on, the crankshaft sensor could be the problem.
- A failing sensor is a common cause of stalling or a no-start condition in the Dodge Nitro.
- The sensor is located on the passenger side of the engine block, near the transmission, for both 3.7L and 4.0L engines.
- The most common trouble code is P0335; always check for this code if you have symptoms.
- For reliability, choose premium aftermarket brands like Delphi, NGK/NTK, or Standard Motor Products over budget options for this critical part.
Symptoms of a Failing Crankshaft Position Sensor in a Dodge Nitro
A bad crankshaft sensor can cause serious problems, sometimes appearing intermittently before failing completely. If you notice any of these signs, it's time to investigate the sensor.
🎬 Watch a video on common symptoms and replacement costs.Critical Symptoms
- Engine Stalls Unexpectedly: The engine may shut off while you are driving, which is a major safety hazard. This can happen randomly at any speed or when idling.
- Engine Cranks but Won't Start: This is one of the most common symptoms. The starter will turn the engine over, but it won't fire up because the computer doesn't know when to create a spark.
- Check Engine Light: A failing sensor will trigger the Check Engine Light. A common trouble code associated with this issue is P0335 (Crankshaft Position Sensor "A" Circuit Malfunction).
Other Common Symptoms:
- Rough Idling: The engine may vibrate or run unevenly when the vehicle is stopped.
- Poor Acceleration: Your Nitro may feel sluggish and lack power when you press the gas pedal.
- Decreased Fuel Economy: Incorrect timing signals can cause the engine to use more fuel than necessary.
- Engine Misfires: You may feel the engine stumble or hesitate.
Choosing the Right Aftermarket Sensor
When replacing a critical electronic part like a crankshaft sensor, quality makes a difference. While budget parts are available, they may not last, leaving you with the same problem again. Here’s a breakdown of brand tiers to help you choose.
Tier 1: Premium Aftermarket & OEM Suppliers
These brands often manufacture parts for car companies directly and are known for their reliability and high-quality standards. They are your best bet for a long-lasting repair.

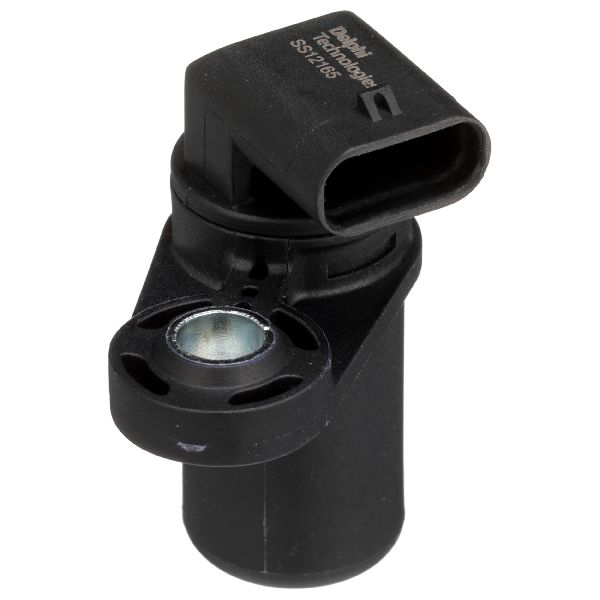

- Delphi: A major OE supplier with a strong reputation for quality electronics.
- NGK / NTK: Highly respected for sensors and ignition components, considered a top-tier choice.
- Hitachi: Another well-regarded OE supplier known for excellent electronic parts.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and value. They are a solid choice for most DIY repairs.
- Standard Motor Products (SMP): A long-standing, reliable name in the aftermarket.
- Dorman: Known for providing a wide range of aftermarket parts that often include design improvements over the original.

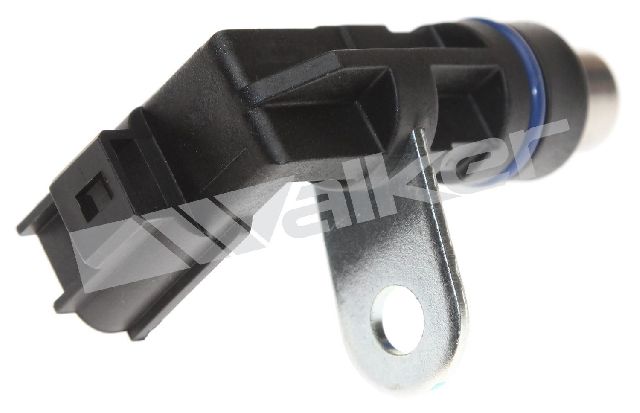

- Walker Products: A well-known brand for fuel and engine management parts.
Tier 3: Economy Brands

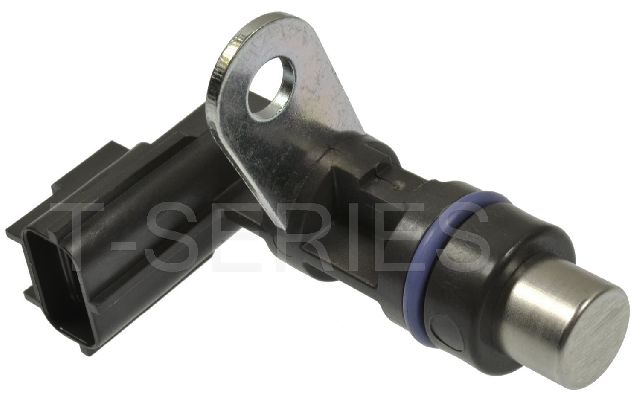

Brands like Crown, Prenco, or True Tech fall into this category. They offer the lowest price point but may have a shorter lifespan and less consistent quality. They can be a solution for a tight budget, but a premium brand is recommended for this specific part.
Pro Tip: Before you replace the sensor, always inspect the wiring and connector. A loose connection, corrosion, or damaged wire can mimic the symptoms of a failed sensor. Cleaning the connector or repairing a wire could save you the cost of a new part.
Cost to Replace a Dodge Nitro Crankshaft Sensor
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $24 - $84 |
| Shop Labor | $73 - $140 |
| Total Estimated Cost (DIY) | $24 - $84 |
| Total Estimated Cost (Installed) | $119 - $186 |
Prices are estimates and can vary based on your location and the specific brand of part chosen.
Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on a 2007-2012 Dodge Nitro?
The crankshaft position sensor on both the 3.7L and 4.0L V6 engines is located on the passenger side of the engine block, near the rear where the engine meets the transmission. You will need to access it from underneath the vehicle.
Is it difficult to replace the crankshaft sensor myself?
For a DIYer with some experience, this is a manageable job. It involves raising the vehicle safely, disconnecting the electrical connector, and removing a single bolt. However, the sensor can be difficult to remove if it's seized in the engine block. It may require careful twisting and wiggling to get it out. Applying a small amount of clean oil to the O-ring of the new sensor will help with installation.
Are there any recalls for this part on the Dodge Nitro?
No, there are no specific recalls for the crankshaft position sensor itself on the 2007-2012 Dodge Nitro. Searches of the NHTSA database found recalls related to the tone wheel that the sensor reads on some other Chrysler vehicles with diesel engines, but these do not apply to the gas-powered Nitro.
Should I replace the camshaft position sensor at the same time?
It is not required, but it is often recommended, especially on higher-mileage vehicles. The camshaft and crankshaft sensors work together, are of a similar age, and a failure in one can sometimes affect the other's readings. Replacing both can provide peace of mind and prevent a similar repair in the near future.

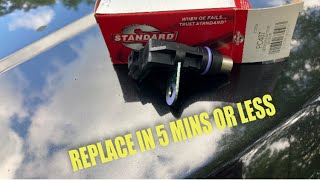

Helpful Videos
Technical Specifications
OEM Part Numbers: 56028810AC 5029811AC
3-pin connector. Location: Passenger side, rear of engine block.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
