Dodge Nitro (2007-2012) HVAC Blower Motor Resistor Information
If your Dodge Nitro's fan is stuck on high or has stopped working on certain speeds, this guide is for you.
- The most common symptom of failure is the fan only working on the highest speed setting.
- Always inspect the electrical connector for melting or corrosion; replace it if any damage is found.
- A failing blower motor is the main cause of repeat resistor failure; check the motor if you are replacing the resistor for a second time.
- This is an easy and inexpensive DIY repair that most owners can perform in under 30 minutes.
Is Your Dodge Nitro's Fan Acting Up?
If your 2007-2012 Dodge Nitro's climate control fan only works on the highest setting, or if some speeds have stopped working entirely, the blower motor resistor is the most likely culprit. This is a very common issue for Dodge vehicles of this era. The resistor is a simple part, but its failure can leave you without control over your cabin's airflow, which is not only uncomfortable but can also be a safety issue if you can't defrost your windshield.
Symptoms of a Failing Blower Motor Resistor
Watch for these classic signs of a bad blower motor resistor in your Dodge Nitro:
- Fan Only Works on High: This is the number one symptom. The high setting bypasses the failed resistor, so it's the only one that still functions.
- Some Fan Speeds Don't Work: You might lose low or medium speeds while others still work. This happens when specific circuits within the resistor burn out.
- No Fan at Any Speed: While less common, a complete failure of the resistor or its electrical connector can cut all power to the blower motor.
- Burning Smell from Vents: An overheating resistor or melting connector can produce a distinct plastic or electrical burning smell. This is a serious warning sign that requires immediate inspection.
Important: Check the Connector and Blower Motor!
A frequent cause of repeat resistor failure is an aging blower motor. As the motor wears out, it draws too much electrical current, causing the new resistor to overheat and burn out quickly. Before replacing the resistor, inspect the electrical connector pigtail. If it looks melted, discolored, or corroded, it MUST be replaced along with the resistor. It is highly recommended to spin the blower motor fan by hand; if it feels tight or noisy, you should replace the blower motor at the same time to prevent the new resistor from failing prematurely.
🎬 Watch this guide on preventing repeat blower motor resistor failures.Choosing the Right Aftermarket Resistor
For a part like the blower motor resistor, a quality aftermarket brand is often a smart and cost-effective choice compared to more expensive OEM parts. However, quality can vary. Here's a general breakdown of the brands available:

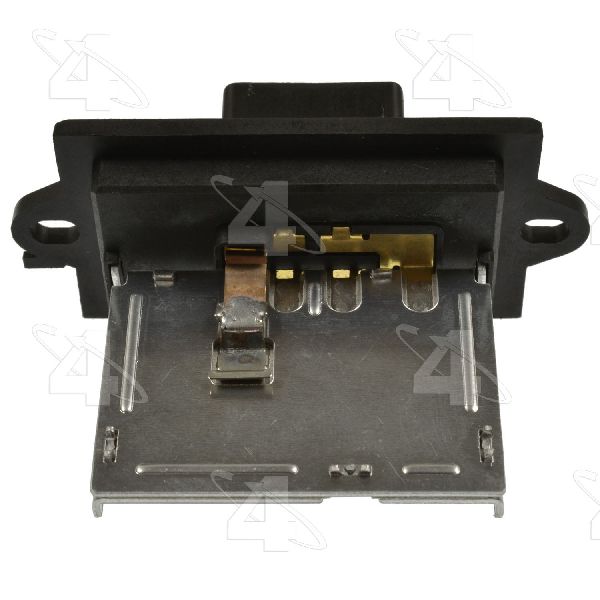

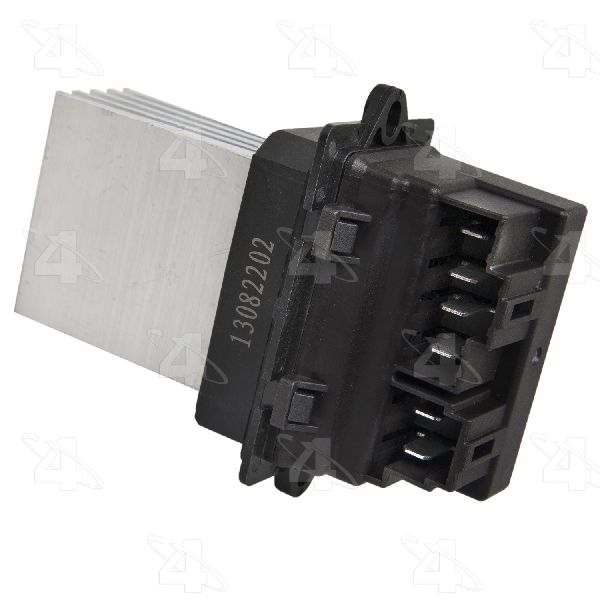

- Premium Aftermarket (Standard Ignition, Four Seasons): These brands are generally well-regarded and often use designs that meet or exceed original specifications. They are a solid choice for reliability.
- Standard Aftermarket (Dorman, Holstein): Dorman is a very popular brand with wide availability. They offer a direct replacement fit and are a common choice for DIY repairs. While generally reliable, it's always wise to inspect the part upon arrival.

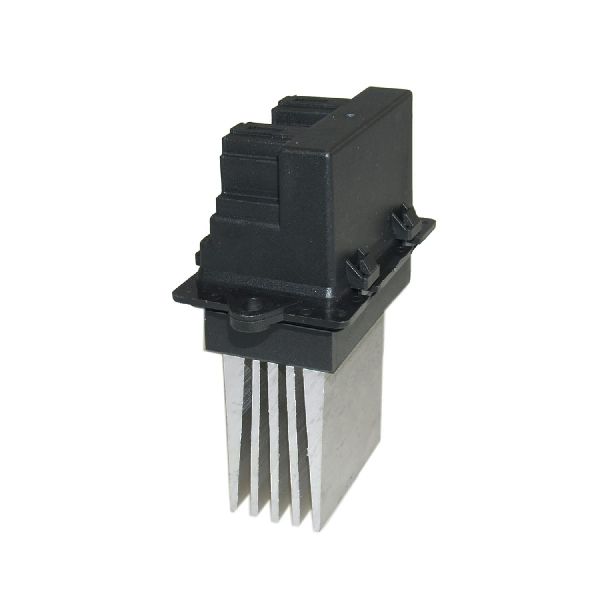

- Value Brands (Global Parts, True Tech): These brands provide the most budget-friendly options. They can be a good choice if cost is the primary concern, but be aware that long-term durability might not match premium brands.
Pro Tip: Some aftermarket resistors for Dodge vehicles use updated solid-state designs instead of the original wire-wound coils, which can offer better durability and resistance to burning out.
| Part Type | Price Range | Notes |
|---|---|---|
| New Aftermarket | $35.44 - $86.87 | Price varies by brand and included components (like a new connector). |
| Shop Labor | $50 - $100 | Typically a quick job, taking less than an hour. |
Frequently Asked Questions (FAQ)
Where is the blower motor resistor located on a 2007-2012 Dodge Nitro?
The blower motor resistor is located on the passenger side, under the dashboard, mounted in the HVAC housing near the blower motor itself. 🎬 See how to remove and replace the front blower motor. You will likely need to remove a lower trim panel or the glove box to access it.
Is replacing the blower motor resistor a DIY job?
Yes, this is a great DIY job for beginners. It typically involves removing a few screws and disconnecting an electrical plug. The entire process can usually be done in under 30 minutes with basic hand tools like a screwdriver.
🎬 Follow these steps to replace your blower motor resistor.Do I need to disconnect the battery to replace the resistor?
Yes, it is always recommended to disconnect the negative battery terminal before working on any part of your vehicle's electrical system to prevent short circuits or injury.
Why did my new resistor fail after only a few months?
The most common reason for premature resistor failure is a worn-out blower motor drawing too much power. Another cause is a clogged cabin air filter restricting airflow, which makes the motor work harder. If you're replacing the resistor, it's crucial to also check the health of the blower motor and its connector, and replace the cabin air filter.
Are there any recalls for the Dodge Nitro blower motor resistor?
Searches of the NHTSA database did not show any specific recalls for the blower motor resistor itself on the 2007-2012 Dodge Nitro. However, other Chrysler/Dodge vehicles have had recalls and service bulletins for overheating resistor connectors. It is always a good practice to check for any signs of melting on the wiring harness when replacing the part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68003999AA 4885482AC 68038199AA 68003996AA
Typically includes a 4-pin and 2-pin connector configuration for manual HVAC controls.
