Horn Replacement Guide for the 2007-2012 Hyundai Veracruz
If your horn has gone silent, learn about common failures and how to choose the right new aftermarket horn for your Veracruz.
- Before replacing the horn, always check the horn fuse and relay first, as these are common and inexpensive failure points.
- If your airbag light is also on, the problem is likely the clock spring, not the horn itself.
- The two horns are located behind the front bumper, which must be removed for access.
- It is best practice to replace both the high-pitch and low-pitch horns at the same time for a reliable repair.
Is Your Veracruz Horn Not Working?
A silent horn is a common issue, but the horn assembly itself isn't always the part that has failed. Before buying a new horn, it's wise to check a few other components in the horn circuit first. This can save you time and money.
Common Symptoms of Horn Failure
- No Sound: The most obvious symptom is a completely silent horn when you press the button on the steering wheel.
- Weak or Muffled Sound: If one of the two horns fails, the sound will be noticeably weaker or have a different pitch. This can happen if one horn corrodes or breaks internally.
- Intermittent Operation: The horn may work sometimes and not others, which often points to a loose wire, a failing relay, or a problem in the steering column's clock spring.
First, Check These Other Possible Causes
A non-working horn is often caused by a simpler electrical issue. Here’s what to check before replacing the horn itself:
- Horn Fuse: Check the fuse labeled for the horn in the engine compartment fuse box. A blown fuse is a common and easy fix.
- Horn Relay: When you press the horn, you should hear a 'click' from the relay in the fuse box. If you don't hear a click, the relay could be bad. You can try swapping it with an identical relay from a non-essential system (like the power outlet) to test it.
- Clock Spring: This part in the steering column connects the steering wheel's electronics (horn, airbag, cruise control) to the rest of the car. If your airbag light is on and your horn and/or cruise control don't work, a bad clock spring is a likely culprit. Hyundai has had recalls and warranty extensions for clock springs on some models, so it's worth checking with a dealer.
Known Issues for Hyundai Veracruz Horns
Hyundai has issued Technical Service Bulletins (TSBs) for horn failures on various models due to internal parts oxidizing from moisture or foreign substances. This causes the horn to stop working. While your vehicle may be outside the 10-year/120,000-mile warranty extension mentioned in these bulletins, it confirms that premature horn failure is a known problem. In some cases, the plastic housing of the horn itself can become brittle and fall apart.
Choosing the Right Aftermarket Horn
When replacing the horn on your 2007-2012 Veracruz, you have a choice between standard replacement parts and premium brands. Both are good options, depending on your budget and preference.
Brand Tiers
- Hella: Hella is a well-regarded German brand known for making high-quality automotive lighting and electronic components. A Hella horn is often considered an upgrade over the factory part, typically providing a louder, more piercing sound and excellent durability. They are a great choice if you want a more authoritative horn sound and long-term reliability.
- Replacement: This category represents direct-fit, value-oriented brands. A "Replacement" brand horn is designed to function just like the original part and is a cost-effective solution to get your horn working again. For a part like a horn, a standard replacement is often a perfectly adequate choice for daily driving.
Cost of a New Horn for 2007-2012 Hyundai Veracruz
| Part Type | Price Range |
|---|---|
| New Aftermarket Horn | $49 - $74 |
| Shop Labor | $60 - $120 |
Prices are estimates and may vary based on location and parts availability.
Pro Tip: Replacing Horns in Pairs
Your Veracruz has a high-tone and a low-tone horn. It is recommended to replace both at the same time. If one has failed due to age or corrosion, the other is likely not far behind. Replacing both ensures a proper, strong sound.
Frequently Asked Questions
Is it difficult to replace the horn myself?
Replacing the horn is moderately easy if you are comfortable with basic tools. The horns are located behind the front bumper cover, so the main task is removing the bumper. This involves taking out several bolts and clips. The horns themselves are then easy to unbolt and unplug. The entire job can take 1 to 2 hours for a first-timer.

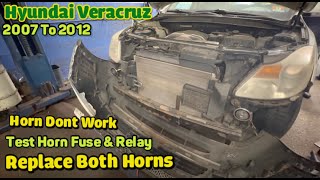

🎬 Watch this step-by-step guide to replacing both Veracruz horns.Do I need to replace both the high and low pitch horns?
It is highly recommended. The horns are exposed to the same conditions, and they have the same lifespan. If one has failed, the other may fail soon after. Replacing both at once saves you from having to do the job again and ensures the horn sounds as it was designed to.
My airbag light is on and the horn doesn't work. Is it still the horn?
Probably not. When the horn and the airbag light fail at the same time, the most common cause is a faulty clock spring in the steering column. This part connects the electrical components on the steering wheel to the car. Check for any recalls or warranty extensions related to the clock spring for your vehicle.
🎬 Watch a mechanic replace a faulty Hyundai clock spring.How do I know if the horn relay is bad?
Have a friend press the horn button while you listen to the fuse box under the hood. You should hear a distinct 'click' from the horn relay. If you hear the click, the relay is working. If you don't, the relay is likely the problem.

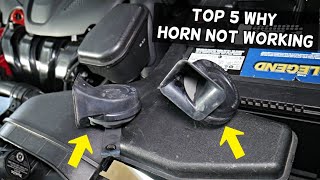

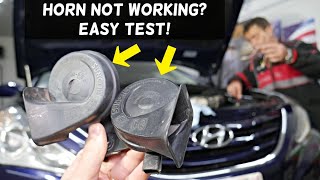

🎬 See how to properly test a Hyundai horn circuit.Helpful Videos
Technical Specifications
OEM Part Numbers: 96611-K2000 96621-K2000
System consists of one high-pitch and one low-pitch horn.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
