A Guide to the Starter Motor for the 2007-2012 Lincoln MKZ
If your Lincoln MKZ is having trouble starting, the starter motor could be the problem.
- A single click with no crank is a primary symptom of starter failure on the MKZ.
- The starter is located under the battery and battery tray, making replacement a moderately easy DIY job for those with basic tools.
- Aftermarket starters from brands like MPA offer a cost-effective alternative to OEM parts and are widely available.
- No specific recalls or TSBs for the starter motor were found for this model year, indicating failures are typically due to normal wear and tear.
Is Your Lincoln MKZ Starter Failing?
A failing starter can leave you stranded. Before it fails completely, it usually gives a few warning signs. The most common issue is a clicking sound when you turn the key, but the engine doesn't turn over. This often means the starter's solenoid is working, but the motor itself is not.
Other signs include:
- Slow Cranking: The engine turns over more slowly than usual, as if the battery is weak. This can be caused by worn internal parts in the starter.
- Grinding Noises: A grinding or whirring sound during or after the engine starts can mean the starter gear is not engaging or disengaging properly with the engine's flywheel.
- No Crank, No Start: You turn the key and nothing happens at all, or you just hear a single click. This is a classic sign of a dead starter.
- Intermittent Starting: The car starts fine sometimes, but fails to start at other times. This can be frustrating to diagnose but often points to a starter on its way out. 🎬 Watch this troubleshooting guide to diagnose a no-start condition.
Pro Tip: If you're stuck and the starter is just clicking, you might be able to get it to work one more time. Locate the starter between the battery and the engine intake, and carefully tap it a few times with a solid object like a long wrench or rod. This can sometimes shift the internal components just enough to get the car started and get you home or to a repair shop.
Choosing a New Aftermarket Starter
When replacing the starter on your MKZ, you don't have to buy an expensive part from the dealer. New aftermarket starters offer a good balance of quality and price. Many are built to meet or exceed the original factory specifications. Brands like MPA, TYC, Remy, and others are available for this vehicle. When choosing, look for a new unit (not remanufactured, unless it's from a highly reputable source) with a good warranty. Since the replacement is moderately difficult, you want a part that will last.
Aftermarket Starter Cost
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., MPA, TYC) | $72.43 - $156.08 |
| New OEM (Motorcraft) | $190 - $220+ |
| Shop Labor | $132 - $194 |
Known Issues, Recalls, and Bulletins
Searches for the 2007-2012 Lincoln MKZ did not find any specific recalls or widespread Technical Service Bulletins (TSBs) from Lincoln related to the starter motor itself. Most starting problems on this vehicle are related to the common failure of the starter motor over time, a weak battery, or corroded connections. There are TSBs and recalls for other issues on the MKZ, such as door latches and airbag modules, but none that directly address the starter motor for this year range.
Frequently Asked Questions (FAQ)
Is it the starter or the battery?
This is a very common question. If you hear a rapid clicking sound, it could be a weak battery. If you hear a single, solid click when you turn the key, the starter is more likely the problem. A slow crank can also be a sign of a bad starter, even with a good battery. The best first step is to have your battery tested; most auto parts stores do this for free.
How hard is it to replace the starter on a 2007-2012 MKZ?
The starter is located on the front of the engine, underneath the battery tray. To access it, you must remove the battery and the battery tray. While not overly complex, it requires some patience and basic metric sockets (8mm, 10mm, 13mm). For a DIY mechanic with some experience, it's a manageable job that takes about 1-2 hours.

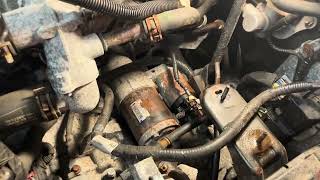

🎬 See this step-by-step walkthrough of the starter replacement process.Can I use a starter from a Ford Fusion?
Yes, the 2007-2012 Lincoln MKZ with the 3.5L V6 engine shares its platform and many parts with the Ford Fusion of the same era. A starter listed for a 2010-2012 Ford Fusion with the 3.5L V6 engine should also fit your MKZ. Always confirm the part fitment with the seller before purchasing.

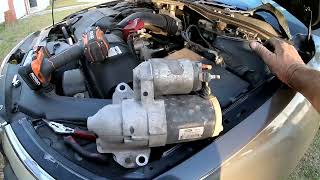

🎬 Watch a mechanic swap the starter on this shared engine platform.What are the OEM part numbers for the MKZ starter?
Common Ford and Motorcraft part numbers for this starter include 7H6Z-11002-A, SA-964, 7H6T-11000-AC, 7H6T-11000-AD, and 7H6T-11000-AE. Cross-referencing these numbers can help you find the correct aftermarket replacement.
Helpful Videos
Technical Specifications

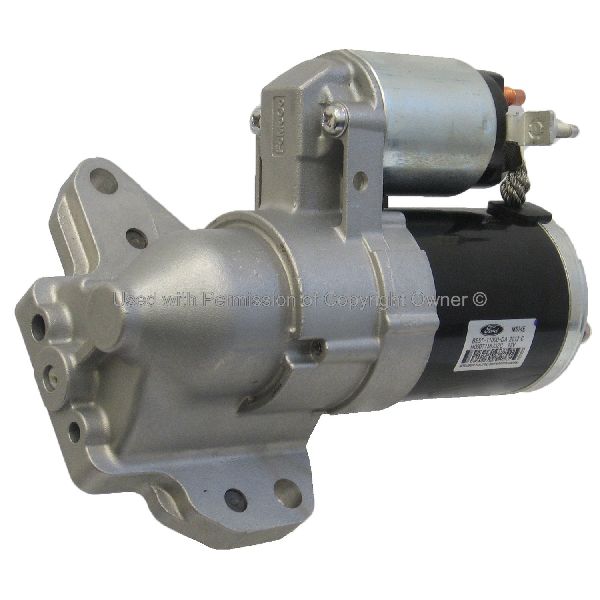

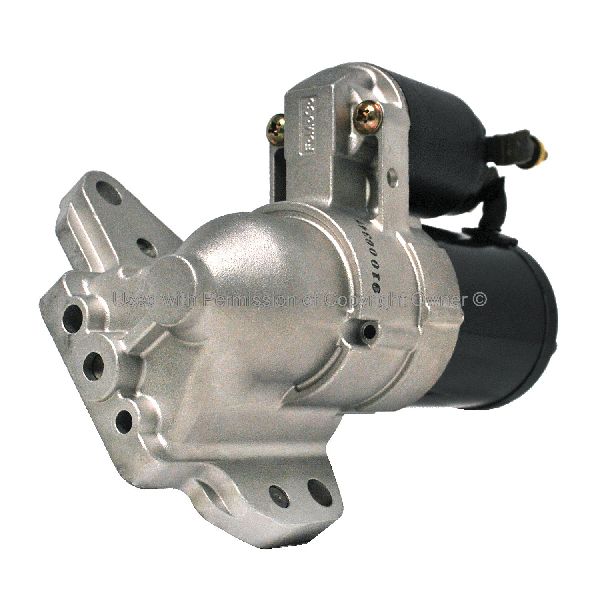

OEM Part Numbers: 7H6Z-11002-A SA-964 7H6T-11000-AC 7H6T-11000-AD 7H6T-11000-AE 8G1T-11000-AA 8G1Z-11002-A
Engine: 3.5L V6, Power: 1.6KW, Voltage: 12V, Rotation: CCW, Teeth: 22
