Engine Valve Cover Gasket Set Guide for the 2007-2012 Mazda CX-7
Stop that burning oil smell and fix common leaks on your CX-7's 2.3L turbo engine.
- A burning oil smell is the most common symptom of a failed valve cover gasket on the CX-7.
- Always purchase a complete kit that includes both the main gasket and the four spark plug tube seals.
- The 2.3L turbo engine runs hot, making quality gasket material important; brands like Fel-Pro and Victor Reinz are highly recommended.
- While a DIY-friendly repair, proper cleaning of the mating surfaces is essential to prevent future leaks.
Is Your CX-7 Leaking Oil? Signs of a Bad Valve Cover Gasket
A failing valve cover gasket is a common issue on the 2007-2012 Mazda CX-7, especially with the high heat from the 2.3L turbo engine. The symptoms are usually easy to spot. If you notice any of these signs, it's probably time for a replacement.
- Burning Oil Smell: This is the most obvious symptom. When the gasket fails, oil drips onto the hot exhaust manifold or turbocharger, creating a distinct and unpleasant burning smell inside and outside the car.
- Visible Oil Leaks: You may see oil residue and grime built up on the valve cover or the side of the cylinder head. The leak often starts small but will get worse over time.
- Oil in Spark Plug Wells: When you pull out the ignition coils, you might find oil pooled in the spark plug tubes. This is caused by failed spark plug tube seals, which are part of the gasket set. This can lead to engine misfires.
- Low Engine Oil: A significant leak can cause your engine oil level to drop between oil changes, potentially triggering the low oil light.
Known Issues with the 2.3L DISI Turbo Engine
The 2.3L turbo engine in the CX-7 is known for several critical issues, including turbocharger failures, VVT actuator problems, and timing chain stretch, often made worse by poor oil maintenance. While a valve cover gasket leak is a separate and less severe issue, it highlights the importance of regular, high-quality oil changes to keep this engine healthy. A clogged PCV valve can also increase engine pressure and cause oil leaks, so it's worth inspecting during this repair.
Choosing the Right Aftermarket Gasket Set
For a part like this, you don't necessarily need to buy from the dealer. Quality aftermarket brands offer reliable seals, often at a better price. The key is to choose a complete kit made from quality materials.
Brand Quality Tiers
- Top Tier (Fel-Pro, Victor Reinz): Fel-Pro is a highly trusted name in the repair industry, known for designing gaskets specifically for real-world, imperfect sealing surfaces. Victor Reinz is often an original equipment manufacturer (OEM) for many car brands and is known for high-quality, pliable rubber gaskets that seal well. For the CX-7, either of these brands is an excellent choice for a durable, long-lasting seal.

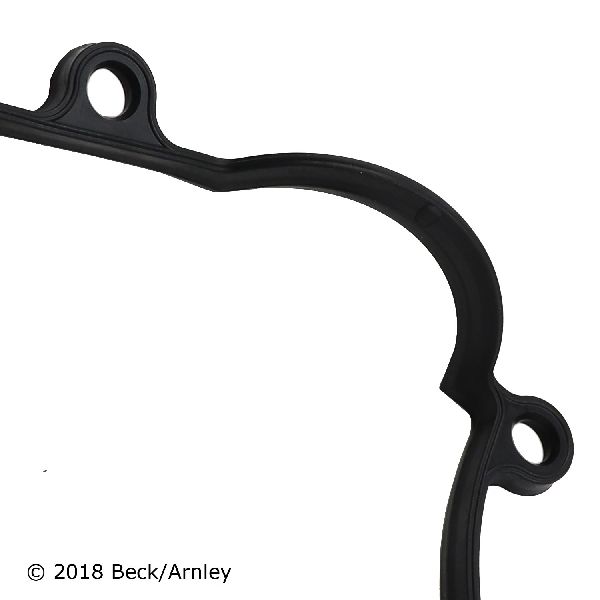

- Mid-Tier (Beck Arnley): Beck Arnley often sources its parts from various manufacturers, sometimes even re-packaging the original OEM part. They are generally considered a good quality option that meets OE form, fit, and function.

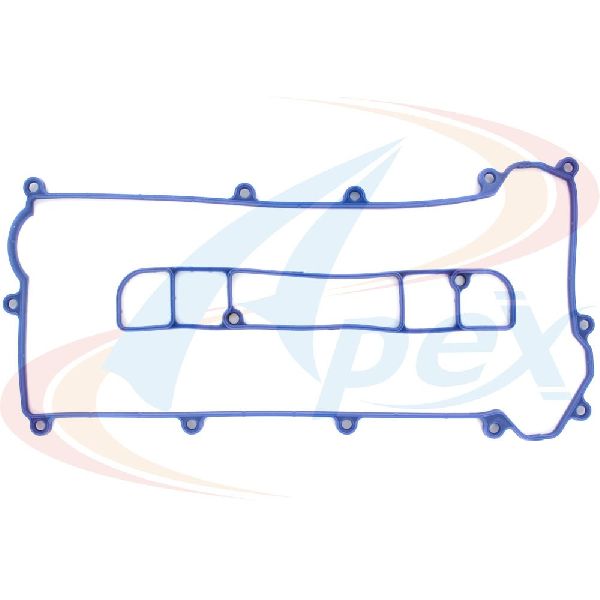

- Economy Tier (Apex): Apex is typically viewed as a budget-friendly brand. While it can get the job done, some professional mechanics prefer to use higher-tier brands for better long-term reliability, especially on turbocharged engines that experience high heat.
Pro Tip: Always buy a complete gasket *set*, not just the outer gasket. The set should include the main valve cover gasket and the four spark plug tube seals. Replacing all components at once is critical for a leak-free job.
Cost of Replacing the Valve Cover Gasket Set
Here is an estimated cost breakdown for replacing the valve cover gasket set on a 2007-2012 Mazda CX-7.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Gasket Set | $35 - $45 |
| New Aftermarket Gasket Set | $30 - $70 |
| Shop Labor | $110 - $161 |
| Total Estimated Cost (Aftermarket Part + Labor) | $140 - $231 |
Frequently Asked Questions (FAQ)
Is a valve cover gasket leak serious?
It starts as a minor issue but can become serious. A small leak can make a mess and a bad smell. A large leak can lower your oil level, leading to engine damage. If oil leaks onto the hot exhaust, it creates a fire risk. It's best to fix it sooner rather than later.
Can I replace the valve cover gasket myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. The process involves removing the plastic engine cover, the intercooler, ignition coils, and various hoses and electrical connectors before unbolting the valve cover. The most critical steps are thoroughly cleaning the old gasket material off the cylinder head and valve cover and then tightening the bolts to the correct torque in the proper sequence.
Do I need to use RTV sealant with the new gasket?
Yes, but only in specific spots. A small dab of RTV sealant is typically required where the timing chain cover meets the cylinder head. Do not apply sealant all the way around the gasket, as the rubber gasket is designed to seal on its own. Using too much sealant can cause it to squeeze into the engine and clog oil passages.
Are there any recalls or TSBs for this issue?
There are no specific recalls for the valve cover gasket itself, as it is a wear item. Mazda has issued Technical Service Bulletins (TSBs) for oil seepage from the timing chain cover area on some engines, which can sometimes be confused with a valve cover leak. The CX-7 has had several major recalls, including for Takata airbags and front suspension ball joints, but none are directly related to this gasket.
Technical Specifications
OEM Part Numbers: L3K9-10-230 L3K910230
Set includes one perimeter valve cover gasket and four spark plug tube seals. Material is typically a high-quality molded rubber compound designed to withstand the high heat of the turbocharged engine.
